Neumann M 147 Tube Microphone + EA1 Shockmount - Used  From Neumann

Neumann tube sound with a cardioid directional characteristic and a classic design. The double diaphragm capsule is derived from that of its legendary predecessors, the U 47 and M 49.

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Neumann USA

$1,899.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
In Stock!
Ships immediately after order processed!
Payments as low as $43/mo.

What We Think

Condition: Used, Excellent

Manufacturer's Description from Neumann

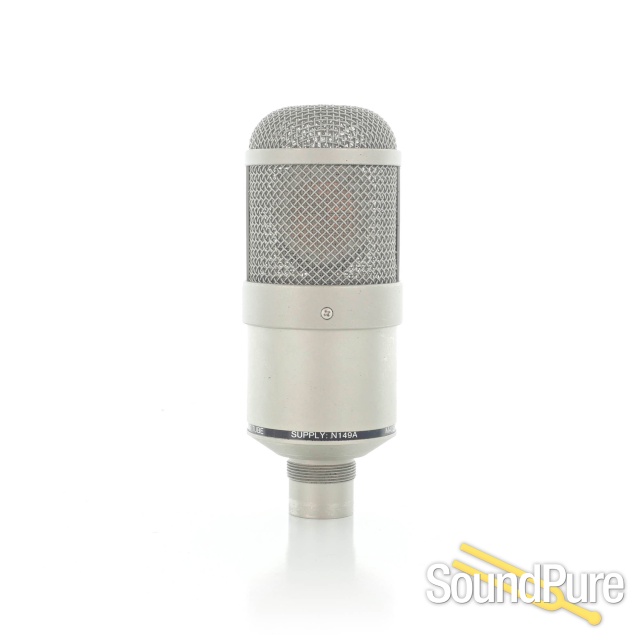

The M 147 Tube is a vacuum tube condenser microphone with cardioid characteristic. At the heart of this microphone is the K 47 dual diaphragm capsule, inherited from this model's now legendary predecessors, the U 47 and the M 49.

Following the capsule is a tube that functions as an impedance converter. The next stage is an efficient, transformerless output circuit that guarantees an extremely low self-noise level. Note: This innovative combination of current tube technology with the most advanced solid-state circuitry was decisive in awarding the 1997 TEC Award to the related M 149 Tube mic.

The M 147 Tube can feed extremely long microphone cables without affecting the quality of the audio signal. Like all Neumann tube microphones, the M 147 Tube comes with an elegant satin nickel finish.

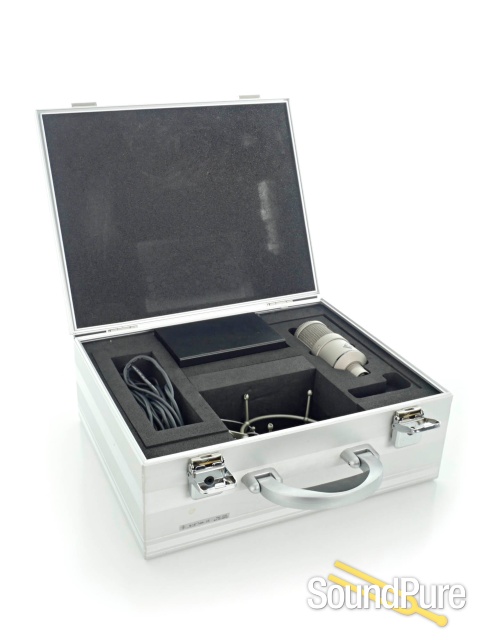

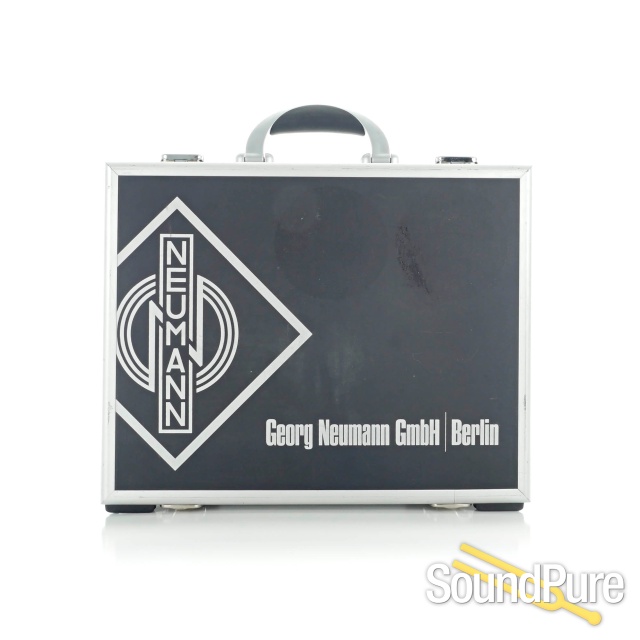

The microphone is delivered as a complete set in a high-quality aluminum case. Included with the microphone are a microphone cable, a metal swivel mount for a mic stand, and a compact universal power supply for standard mains sockets. Our modern manufacturing methods make it possible to offer this complete set at a very attractive price.

Applications

The famous capsule, together with complimenting tube characteristics, makes the M 147 Tube especially well suited as a vocal mic. In addition, it is a superb spot mic for all types of musical instruments. The extremely low self-noise of its tube circuitry makes the mic perfectly suited for use in modern recording chains, analog and digital.

Acoustic features

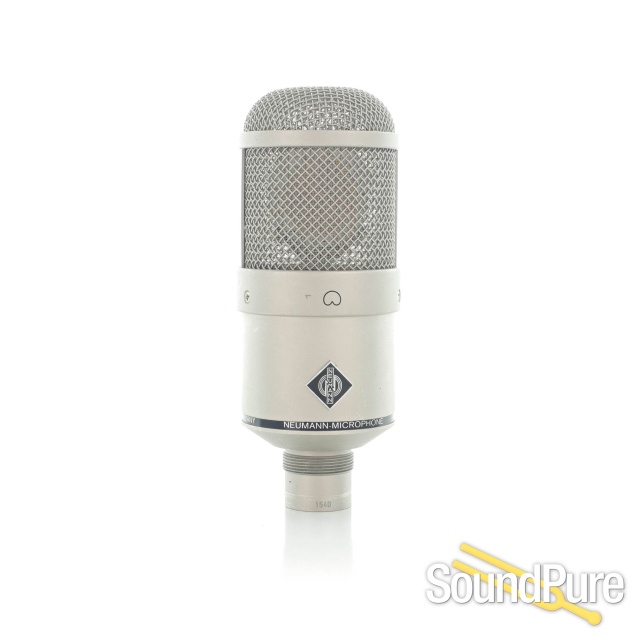

The M 147 Tube is addressed from the side, where the microphone body has the diamond-shaped Neumann company logo. The black color identifies tube microphones. The capsule is equivalent to the one used in the U 47, and is the deciding factor in determining the sound characteristic. It has a flat frequency response to the upper midrange, and a boost of up to 3 dB above 2 kHz. The headgrille design is a smaller version of the U 47. It protects the capsule effectively against popping and wind noise.

Polar pattern

The M147 Tube has a cardioid characteristic, leaning more toward super-cardioid due to its distinctive capsule design. At higher frequencies the pattern becomes more directional. This is very similar to the model after which this new tube microphone was patterned, the U 47 and the successor, the U 47 fet.

Electrical features

When compared to other microphones, the impedance converter used in the M 147 Tube is distinguished by its extremely low self-noise level of only 12 dB-A / 24 dB CCIR weighted.


Similar to the recently introduced M 149 Tube, the new M 147 Tube combines a specifically selected vacuum tube (triode) with modern circuitry. This technique takes full advantage of the special transfer characteristics of the tube and passes the processed audio signal of the capsule to the microphone output, without any coloration or unwanted side effects.

The tube amplifies the capsule's signal by approximately 10 dB, thus preventing any possible influences from subsequent electronics. The M 147 Tube delivers a high output voltage, and therefore can feed microphone cables up to 300 m length without signal degradation.

The ideal operating conditions (anode current, heater voltage) of the tube are maintained throughout its life expectancy. A sensor lead detects any voltage drop that occurs through the microphone cable and compensates for it in the N 149 A power supply. The tube warms up gradually using inverse current limiting to guarantee long life.

Filter

The electronic circuitry of the M 147 Tube mic has a flat frequency response from 20 Hz to well above 20 kHz. Only the attributes of the capsule determine the typical sound characteristics of the microphone.

Operational Stability

Both, the capsule and the entire circuitry are shock mounted to prevent any structure-borne noise. Because of its wide operating range, the M 147 Tube can reproduce extremely low frequency signals without distortion.

This implies that the microphone may also be sensitive to unwanted LF interference by structure-borne noise, or wind noise. To avoid possible signal degradation, we offer the EA 1 elastic suspension and the WS 87 windscreen as accessories. During close miking of vocals we recommend using the PS 15 or PS 20a pop screen.

N 149 A Power Supply

The N 149 A universal power supply works with all mains AC voltages from 100 V to 240 V, 50 or 60 Hz. Mains power is connected through a standard IEC 320 mains socket. The only difference between the three available versions of the M 147 Tube set is the power cord supplied. Note: The N 149 V power supply is fully compatible with the M 147 Tube microphone.



Universal tube microphone

Pressure gradient transducer with the large diaphragm capsule from the legendary U 47 and M 49

Transformerless circuitry

Low self noise level

Comes with swivel stand mount made of metal, universal power supply, and cable in an attractive aluminium case

Neumann USA

About Manufacturer

Specializing in some of the finest microphones in the world, Neumann has develpoed a top name in the industry for consistency, reliability, and sonic excellence. With microphones suited for the entire range of studio recording (and more recently live application), Neumann microphones are often a first choice for uncompromised acoustic reproduction.

Specifications

Acoustical operating principle

Pressure gradient transducer

Directional pattern

Cardioid

Frequency range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm

20 mV/Pa

Rated impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR1)

24 dB

Equivalent noise level, A-weighted1)

12 dB-A

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

70 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

82 dB

Typical SPL (tube characteristic)2)

114 dB for THD < 0.5 %, 134 dB for THD < 5 %

Maximum output voltage

8 dBu

Dynamic range of the microphone amplifier (A-weighted)

102 dB for THD < 0.5 %, 122 dB for THD < 5 %

Powering

Power supply N 149 A

Matching connector

Microphone: DIN 8F, Power Supply: XLR3F

Weight

460 g

Diameter

57 mm

Length

142 mm

______________________________________________
1) according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal
