Sound Pure's Take
Condition: Used, Mint
From Neumann USA
Included:

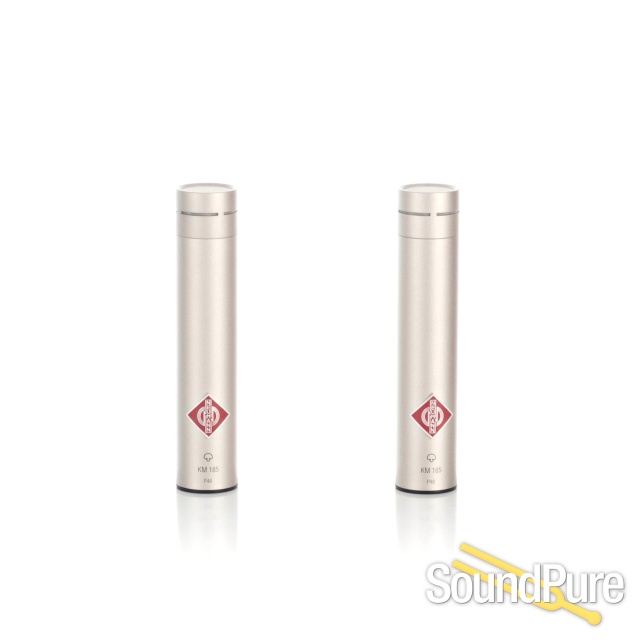

- Stereo-Set of KM 185 Miniature Hyper Cardioid Microphones

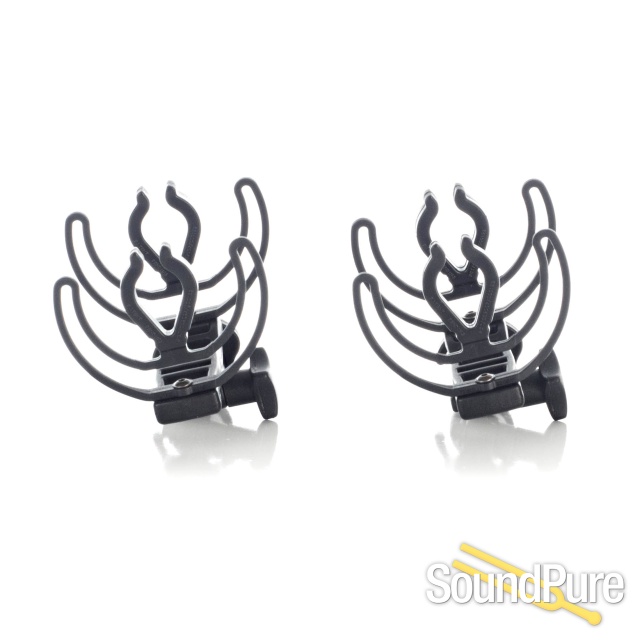

- One set of Rycote shockmounts for the KM 185

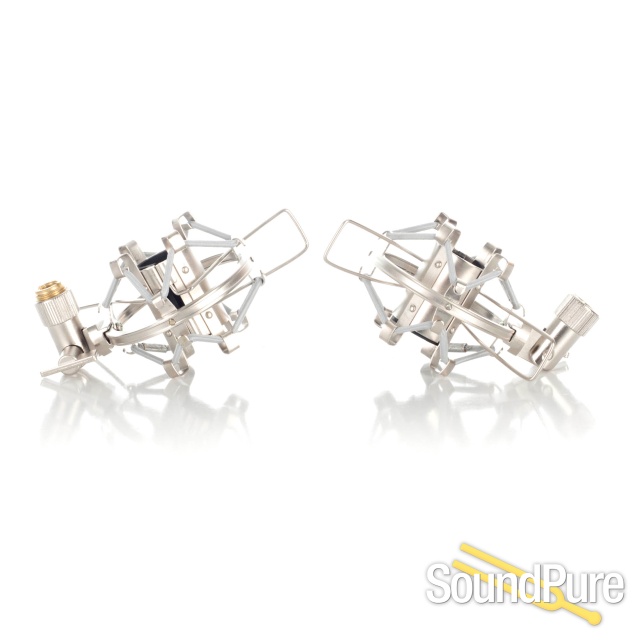

- One set of Peluso shockmounts for the KM 185
- A Neumann N80G2 dual phantom power supply.
| KM 183 / 184 / 185 Acoustical operating principle Pressure/Pressure gradient transducer Directional pattern omnidirectional/cardioid/hypercardioid Frequency range 20 Hz ... 20 kHz Sensitivity at 1 kHz into 1 kohm 12/15/10 mV/Pa Rated impedance 50 ohms Rated load impedance 1 kohms Equivalent noise level, CCIR1) 24/22/24 dB Equivalent noise level, A-weighted1) 13/13/15 dB-A Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 70/72/70 dB Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 81/81/79 dB Maximum SPL for THD 0.5%2) 140/138/142 dB Maximum output voltage 10 dBu Supply voltage (P48, IEC 61938) 48 V ± 4 V Current consumption (P48, IEC 61938) 3.2 mA Matching connectors XLR 3F Weight approx. 80 g Diameter 22 mm Length 107 mm ______________________________________________ 1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS 2) measured as equivalent el. input signal | |
|---|---|
| KM 183 / 184 / 185 | |
| Acoustical operating principle | Pressure/Pressure gradient transducer |
| Directional pattern | omnidirectional/cardioid/hypercardioid |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 12/15/10 mV/Pa |
| Rated impedance | 50 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR1) | 24/22/24 dB |
| Equivalent noise level, A-weighted1) | 13/13/15 dB-A |
| Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) | 70/72/70 dB |
| Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) | 81/81/79 dB |
| Maximum SPL for THD 0.5%2) | 140/138/142 dB |
| Maximum output voltage | 10 dBu |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 3.2 mA |
| Matching connectors | XLR 3F |
| Weight | approx. 80 g |
| Diameter | 22 mm |
| Length | 107 mm |
| ______________________________________________ 1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS 2) measured as equivalent el. input signal |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
This item is not eligible for the Try-Before-You-Buy 48-hour audition. Standard return policy applies — see Terms & Conditions, Section 18 for details.
