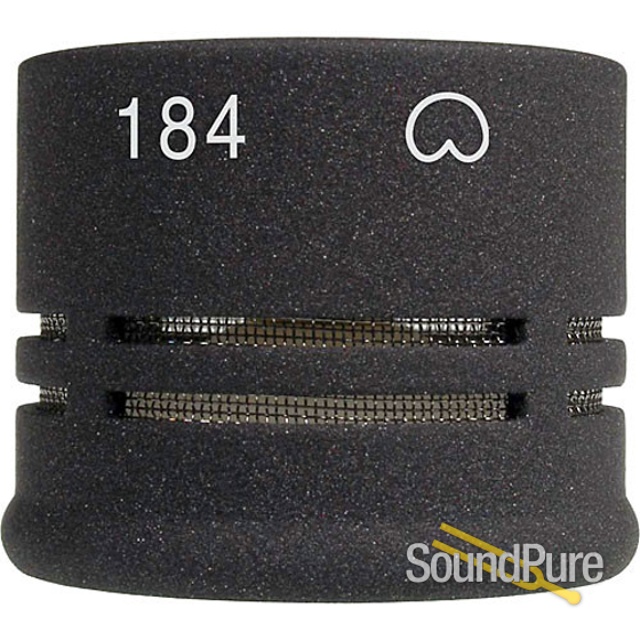

Neumann KK184 NX Cardioid Capsule for KM Series Digital Mics  From Neumann

THE OUTPUT STAGES (sold separately)

The analog, transformerless output stage KM A operates with P48 phantom power. A switchable -10 dB preattenuation allows for sound pressure levels of up to 152 dB (depending on capsule type) without distortion artifacts.

The digital output stage KM D is compliant to the AES 42 standard and opens entirely new possibilities, unattainable in the analog domain. The integrated DSP permits remote control of microphone parameters, such as digital gain, preattenuation (6, 12, 18 dB) and low cut (0, 40, 80, 160). An integrated peak limiter and a compressor/limiter with an additional de-esser function protect the audio signal from overload. Neumann’s patented A/D-converter technology ensures a very high dynamic range of up to 122 dB-A across the entire digital production chain.

At any time the user may opt to work in the analog or digital domain, without the expense of a complete system change, simply by using the KM A or KM D output stage.

Two popular combinations are available as complete sets with capsule, output stage and swivel mount: KM 183 A nx and KM 184 A nx. Any other components are offered separately.
