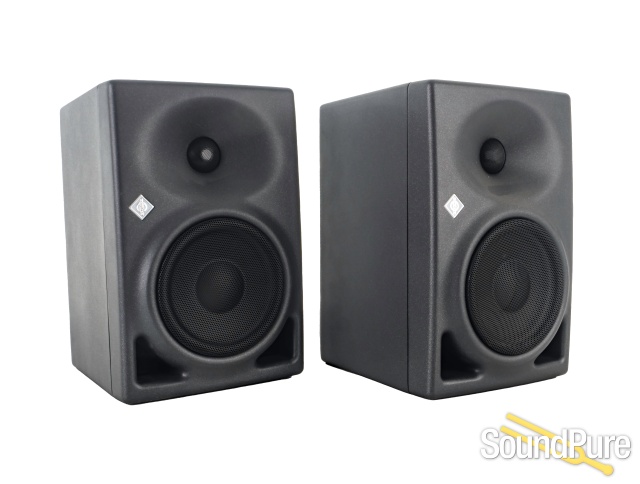

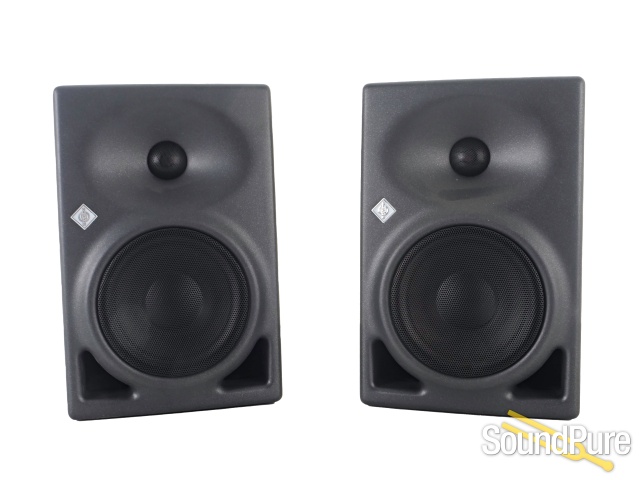

Don't be deceived by the small size - these Neumann KH 120's are packing some serious HEAT, and are equally at home in a commercial facility or a bedroom studio. In Used, Excellent Condition.
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?
When Neumann decided they wanted to get into the studio monitor market, they really did it right by buying out an outstanding and well-established company - Klein & Hummel. The Neumann KH 120 is a refined version of the original K&H O 110. Neumann was able to tighten up the tolerances on the components and essentially has created a more consistent O 110.
If you liked the old K&H O 110, you'll be right at home with the Neumann KH120's. If you're not familiar with either monitor, you're in for a treat. The 120's are remarkably full range for a speaker of this size. They extend noticeably further down than other 4 or 5 inch monitors in this class, and have a more robust representation of the low end that lives down there.
These monitors are a breeze to work on. There's a great sense of depth, with a well defined back wall to your stereo field. They're quite detailed, so you're going to be hearing all the subtle nuances of your compressor settings, and your delay and reverb tails - it may not always be pleasant, but better that you hear it while mixing rather than on playback of a finished album! Speaking of that detail, these monitors really seem to expose your mix for what it really is, without smacking you across the face with it. You can work on these monitors all day long, hearing everything you need to hear, without the ear fatigue you'd find in many other monitors.
The KH 120's are world class monitors that are easy to work with. Give us a call and try a pair out for yourself!
Neumann is excited to introduce its latest innovation, the KH 120, representing the first product in the new line of Neumann Studio Monitors.
The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.
The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.
Specializing in some of the finest microphones in the world, Neumann has develpoed a top name in the industry for consistency, reliability, and sonic excellence. With microphones suited for the entire range of studio recording (and more recently live application), Neumann microphones are often a first choice for uncompromised acoustic reproduction.
Acoustics
-3 dB free field frequency response: 52 Hz … 21 kHz, ± 3 dB
Pass band free field frequency response: 54 Hz … 20 kHz, ± 2 dB
Self-generated noise (with input gain set to 100 dB for 0 dBu): <20 dB(A) at 10 cm
Sine wave output with a THD < 0.5 % at 1 m: 95 dB SPL (>100 Hz)
Max. SPL In half space at 3% THD at 1m: 111.1 dB SPL (averaged between 100 Hz and 6 kHz)
Electronics
Woofer amplifier, cont.(peak) output power*: 50 W (80 W)
Tweeter amplifier, cont.(peak) output power*: 50 W (80 W)
Controller design: Analog, active
Crossover Frequency: 2.0 kHz
Crossover Slope (dB/oct.): 24, 4th order
Equalization - Bass: 0, -2.5, -5, -7.5 dB
Equalization - Mid: 0, -1.5, -3, -4.5 dB
Equalization - High: +1, 0, -1, -2 dB
Protection circuitry: Limiter; low, high
Infrasonic filter frequency; slope: 30 Hz; 6 dB/oct.
Analog Input
Impedance, electrically balanced: XLR, >10 kΩ
Input Gain control (sensitivity): 0 dBu to -15 dBu
Output level control: 94, 100, 108, 114 dB SPL
CMRR: >56 dB @ 15 kHz
Displays and Mains Power
Displays and indicators - power on: Neumann logo “White”
Displays and indicators - limit/clip: Neumann logo “Red”
Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz
Power consumption – Idle: 20 W
Power consumption – Full output: AC 200 W
Mechanics
Cabinet surface finish, color- custom: Painted aluminium, Anthracite (RAL 7021)
Operating conditions: +10° C to +40° C (+50° F to +104° F),
<90% RH, non-condensing
Transport/storage conditions: −25° C to +70° C (−13° F to 158° F),
<90% RH, non-condensing
Drivers: Magnetically shielded
Woofer: 130 mm (5.25”)
Tweeter: 25 mm (1”)
Mounting points: 2 x M8 on rear panel
Height x width x depth, mm (inches): 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)
Internal net volume / external volume: 6.5 liters / 9.7 liters
Weight: 6.2 kg (13.7 lbs)
