t’s in that moment when you start playing. You hear the speaker start to rotate and you sense the moving air. With a little growl it becomes magic from that first moment. This is what rotary speaker is about and with VENTILATOR II, you enter a sonic world of absolute perfection - handy, light and absolutely reliable. The best rotary speaker sound you could wish for, now it’s yours!
For purists, only the original has been considered, because the forefather of all rotary speakers is the measure of all things. With VENTILATOR II you now have the very best alternative to the real thing, emulating every nuance of the originals in the most minute detail. All the character and the stellar sound of the real thing in a handy format.
Complex modeling algorithms, precise replication of Leslie 122 rotary effects
Simple, analog operation
Independent simulation of bass and treble rotors with adjustable rotation speed and acceleration
Exact reproduction of mechanical properties
Authentic Leslie 122 speaker frequency response (can be switched off for playback via guitar amp)

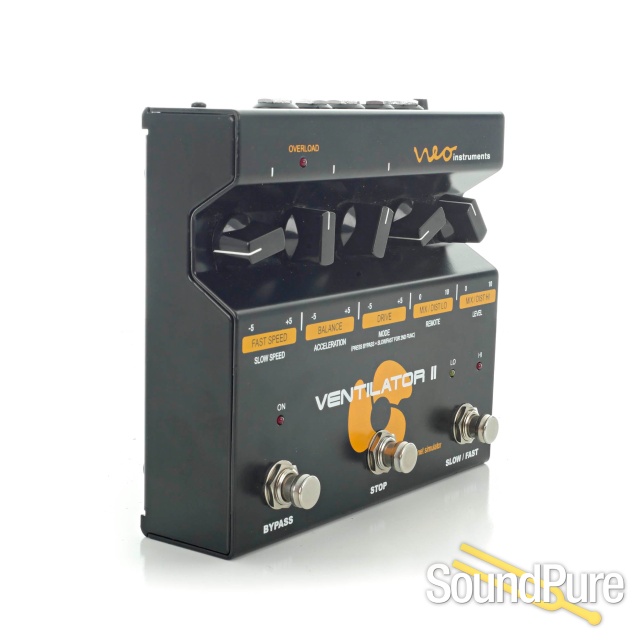

Wide & detailed parameter controls (Speed, Balance, Drive, Distance, Mode)
800Hz Crossover just like the original
Drive section simulates distortion / final stage saturation of the Leslie tube amp
Variable microphone distance
Silent foot switches for True Bypass Relay, Slow/Fast &Stop
Connection for Remote Foot Switch / Halfmoon Switch / Expression Pedal
Sturdy steel housing, recessed knobs
- Signal processing
- 32 Bit SHARC DSP
- Analog Digital Conversion
- 48khz, 24 Bit
- Digital Analog Conversion
- 48khz, 24 Bit
- Noise Level
- -80 dBA
- InputSensitivity
- -10 dBV (Hi), 0 dBV (Lo)
- Input Impedance
- 1MOhm
- Output Level
- +6 dBV
- Output Impedance
- 100 Ohms
- Recommended Load Impedance
- 10 KOhms or more
- Weight
- 1.1kg / 2 lbs 7 oz (without Power Supply)
- Dimensions (W x D x H)
- 160 x 143 x 55mm
- Mains Voltage
- 100-240V, 47Hz-63Hz
- Current Draw
- < 300mA
- Connectors

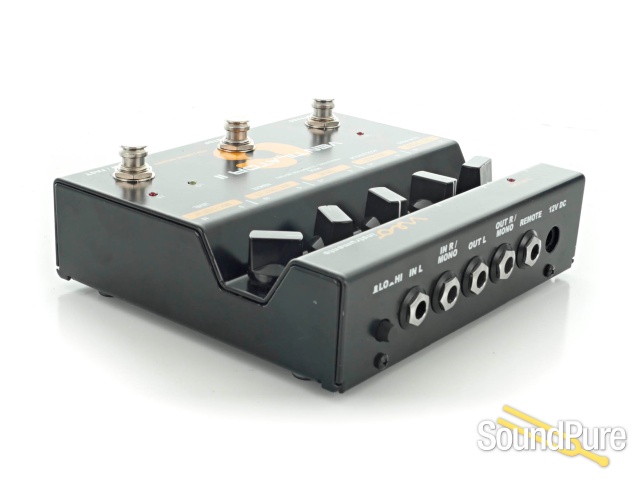

- Input L, Input R / Mono, Output L, Output R / Mono, Remote Input
- Options
- Ventilator Remote (II), Halfmoon Switch CU-1, Expression pedal FC7
