From Millennia Media

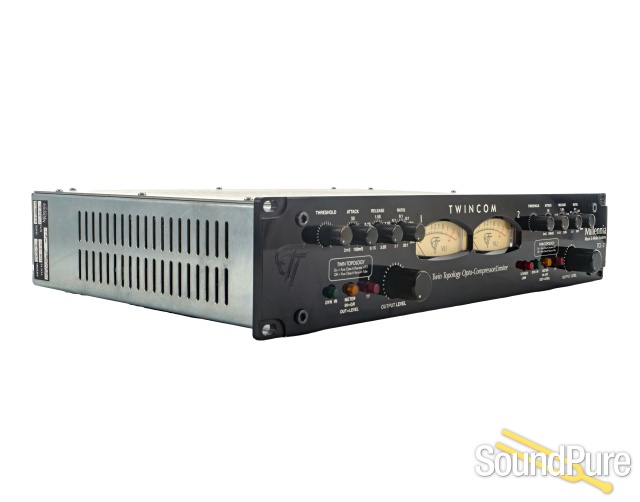

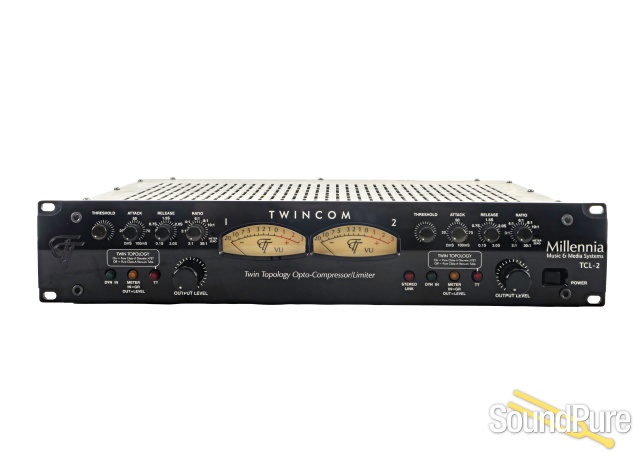

Control Dynamics with Total Signal Integrity
· Two paths to perfection with Twin Topology™
· Stereo optical compressor/limiter with unprecedented sonic purity & integrity
· All triode 300 V vacuum tube signal path or...
· All discrete J-FET solid state signal path
· Both topologies are entirely transformerless, high voltage, pure Class A
· Minimalist design: only one active stage in the audio path
· Threshold: Infinity to + 20 dBu
· Ratio: 1.4 : 1 to 30 : 1
· Attack: 2 to 100 ms
· Release: 100 ms to 3 s
· Large meters: switchable for VU or Gain Reduction
· Constructed for demanding professional applications
· Ultra-Premium components throughout
· Gold relays, connectors, switches, tube sockets
· Silver Teflon power wiring
· Mogami Neglex OFC audio wiring
Options
· Musically rich vintage vacuum tubes
| Threshold Range | Infinite to +20 dBu, Continuously Adjustable |
|---|---|
| Maximum Output Level | > + 32 dBu |
| Maximum Input Level | + 30 dBu |
| Output Gain Control | Continuously Adjustable |
| Frequency Response | +0 / -3 dB sub 2 Hz to beyond 100 kHz |
| Noise | |
| 20 Hz - 22 kHz | -87 dBu (SS), -82 dBu (VT) |
| Attack Range | 2 ms to 100 ms, Continuously Adjustable |
| Release Range | 100 ms to 3.0 S, Continuously Adjustable |
| Compression Ratio Range | minimum 1.4 : 1, maximum 30 : 1 Continuously Adjustable |
| THD + Noise | |
| 20 Hz - 30 kHz | < .01 %, typ .003 % (VT or SS) |
| Common Mode Rejection Ratio | |
| 10 Hz - 20 KHz, 100 mV C.M. | > 50 dB, Typ > 70 dB |
| Dynamics Bypass For Each Channel? | Yes |
| Meter Gain Reduction Or VU Selection? | Yes |
| Stereo Linking Switch? | Yes |
| Input Impedance | 25k Ohms |
| Minimum Output Load Impedance | 300 Ohms (SS), 1k Ohms (VT) |
| Recommended Minimum Load | 600 Ohms (SS), 3k Ohms (VT) |
| Output Impedance | < 5 ohms (SS), < 300 ohms (VT) |
| Twin Topology Compressor Amplifiers | Switch In: Pure Class-A Discrete J-FETs |
| Switch Out: Pure Class-A Triode Tubes | |
| Power Consumption | 55 watts maximum |
| Power Requirements | Selectable: 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19” W x 12.5” L x 3.5” H, 26 lbs. |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: take it home, commit only when it's right. Program details →
