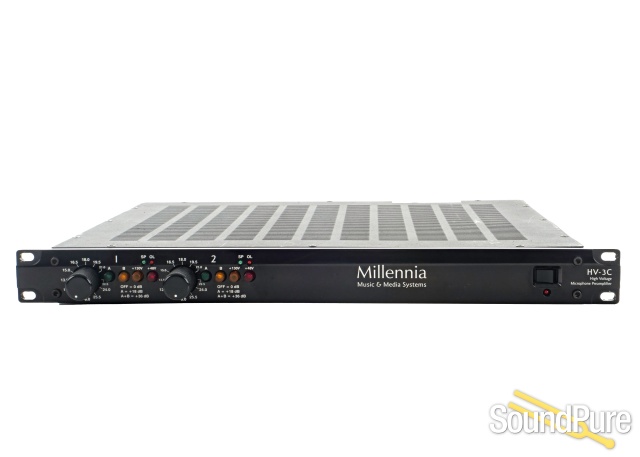

From Millennia Media
Authentic Transparency for Unrestricted Creativity
· Unsurpassed ambience retrieval
· Transformerless design with matched hi-speed discrete transistor octet has 23 dB input headroom: no attenuator “pads” needed
· Uncolored timbral accuracy at all dynamic levels
· Entirely balanced audio path with precision components maintains signal integrity: THD under 5 ppm (.0005%)
· Effortless, vividly realistic, musical performance
· Laser-trimmed FET-based output stage has 32 dB headroom: drives 1000 foot (300 m) cable runs with ease
· Standard 36-step gain controls (1.5 dB per step) are stereo matched to .08 dB
· Ultra-clean toroid power supply
· Gold audio connectors and switches
· Mogami Neglex OFC audio wiring
· Silver Teflon power wiring
· Welded 16 gauge steel rack chassis
Options
· DPA (B&K) +130 V mic inputs
· DC inputs for ideal performance with dynamic and ribbon microphones
| Minimum Gain | 8.5 dB |
|---|---|
| Maximum Gain | |
| (1.5 dB per step, 36 steps) | 65 dB (up to 75 dB on request) |
| Frequency Response | |
| +0 / -3 dB | sub 3 Hz to beyond 300 kHz |
| Noise | |
| 60 dB Gain, 10 Hz - 30 kHz, Inputs common | -133 dB EIN |
| Total Harmonic Distortion + Noise | |
| 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out | < .001%, Typ. < .0005% (< 5 ppm) |
| Intermodulation Distortion | |
| (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out | < .0009% |
| Phase Response | |
| 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out | < 2 degrees deviation |
| Common Mode Rejection Ratio | |
| 35 dB Gain, 10 Hz - 2 0 kHz bandwidth, 100 mV C.M. | > 65 dB, Typ > 85 dB |
| Slew Rate | |
| 35 dB Gain, +27 dBu Out | > 25 Volts per microsecond |
| Maximum Input Level | |
| 20 Hz - 40 kHz | +23 dBu (no attenuator pads required) |
| Maximum Output Level | |
| 20 Hz - 40 kHz | +32 dBu |
| Phantom Input Impedance | |
| 1 kHz | 6,750 ohms |
| Output Impedance | 24.3 Ohms (x2) |
| DPA (B&K) Mic Powering | +130 V dc max, (non-phantom) |
| Phantom Powering | +48 V dc, +/- 2 V dc |
| Power Consumption | 12 watts maximum |
| Power Requirements | Selectable: 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19” W x 1.75” H x 12” D, 15 lbs. |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: 48-hour audition. Program details →
