Miktek C5MP Small Diaphragm Condenser Matched Pair - Demo  From Miktek

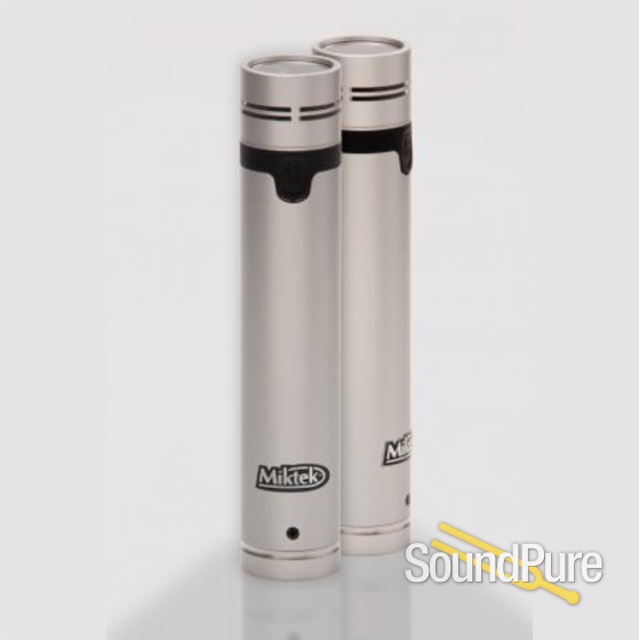

The Miktek C5 pencil condenser provides discerning engineers with a valuable new tool for the critical recording of acoustic instruments. The C5, fitted with our MK5a, 0.5-inch cardioid capsule, produces a super-linear, full-bodied response. The capsule employs a 5-micron tensioned Mylar diaphragm, on which a 0.5-micron layer of evaporated gold is applied. Tight tolerances and special attention to precise machining of the backplate, and acoustical porting, produces an off-axis response that ensures the accuracy of the microphone.

The C5’s head amplifier has been designed around the AMI T5 transformer and, together with the implementation of high quality components including hand-selected transistors, offers a sweet response reminiscent of the iconic classic mics of the past. The Miktek C5 is perfect for recording acoustic instruments including violin, acoustic guitar, mandolin, dobro, brass, woodwind, and piano. The C5 produces excellent results on drums as overheads or hi-hat mics.

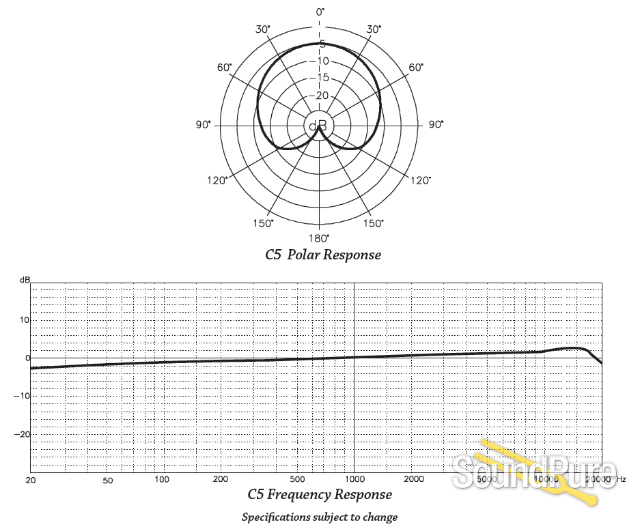

The Miktek C5 is hand built using components from the US, Europe and Asia, and is tested and packaged in Nashville, Tennessee, USA. Each microphone includes its serialized frequency response graph created during final testing.

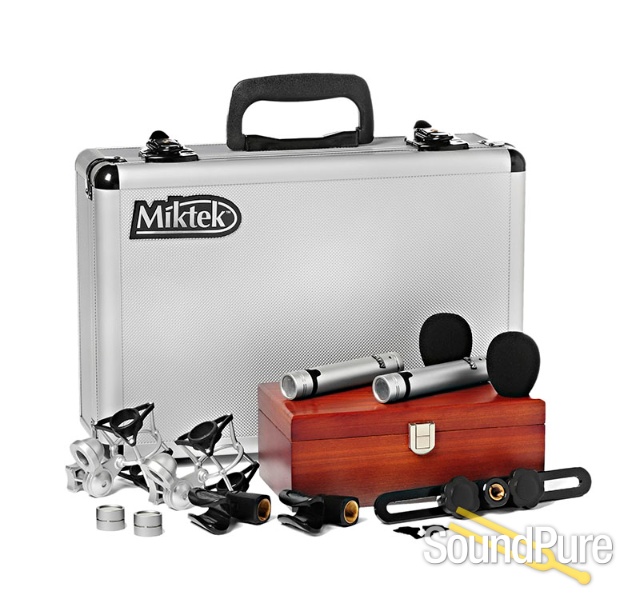

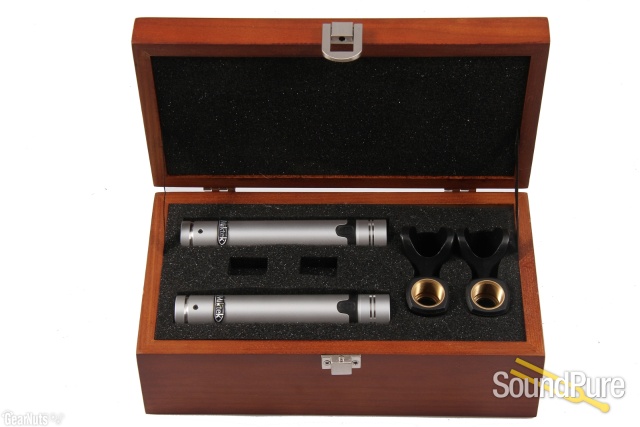

This matched pair microphone set ships with a pair of C5 cardioid pencil mics in a wooden storage box, interchangeable omni and cardioid capsules, mic clips, two shockmounts, two windscreens, stereo bar, and aluminum flight case.
