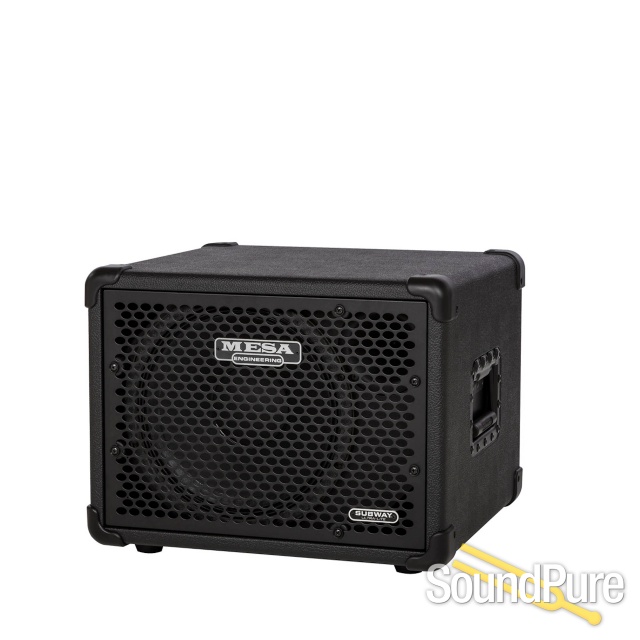

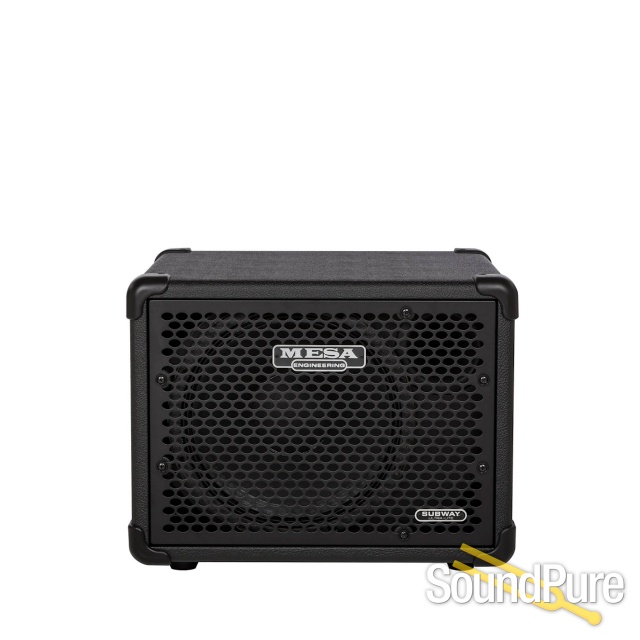

SUBWAY® ULTRA-LITE 1x12 BASS CABINETS
Where MESA®’s passion for Design Excellence and Portability meet the demand for Great Tone in a simple, accessible package…the next chapter in the MESA/Boogie® Bass Story awaits; Introducing the SUBWAY® ULTRA-LITE Cabinet. Handcrafted in Petaluma, California, our Lightweight Italian Poplar Cabinets are Tuned and loaded with the following features:
Designed & Handcrafted in Petaluma, California
Tuned Front Ported Tri-Port Porting™ with Aviation style bracing (superior strength/reduced weight)
Lightweight Italian Poplar Cabinets – Legendary Mesa Quality Construction
Custom Subway® Neodymium Speakers & High-Frequency Horn with Premium Attenuator
Combination Speakon & 1⁄4” Input and Parallel Output
Recessed, Flip-Out Metal Handles
Black Bronco Vinyl with Black Metal Grille
Lexan Corners
Slip Cover
Technical Specifications
- Model
- Subway 1x12
Input/Output Connectors
- Speak-On connectors wired 1+/1-
- 2 x SpeakOn-1/4" (NL-4 combo)
Nominal Impedance
- Average impedance normalized up to standard value
- 8 ohms
Minimum Impedance (@ frequency)
- Minimum cabinet impedance value from 20Hz - 5kHz
- 7.45 ohms (@ 50.8 Hz)
Average Sensitivity (RMS) (50Hz-1000Hz)
- Average sensitivity based on an RMS signal from 50Hz - 5kHz
- 97.5dB/1W/1M
- Maximum SPL (50Hz-1000Hz)
- Maximum SPL calculated from average sensitivity and maximum RMS input power: 124dB/1M
Average Thermal Power (RMS) (50Hz-1000Hz)
Power rating ("RMS") of L.F. driver based on EIA RS-426A standard: 400 Watts
Average Mechanical Power (RMS) (50Hz-1000Hz)
Average power rating ("RMS") based on average safe cone excursion: 400 Watts
Minimum Mechanical Power (RMS) (@ frequency)
Power rating ("RMS") based on the point of maximum safe cone excursion: 385 Watts (@ 74.3Hz)
Low Freq F3 (Hz)
- 3dB point of the LF response below the average response
- 57.5 Hz
Low Freq F6 (Hz)
- 6dB point of the LF response below the average response
- 48.1 Hz
Low Freq F10 (Hz)
- 10dB point of the LF response below the average response
- 41.5 Hz
- High Freq Response
- Nominal HF response, dependent on the position of HF attenuator:>12kHz
- Dimensions
- 15 1/4" x 19 1/4" x 18 1/4"
- Weight
- 32.9 lbs.
