The FLUX-FIVE™ Powerful new EQ version adds our classic Five Band Graphic EQ and footswitchable HI/LO performance Modes featuring separate OUTPUT LEVEL controls to the already versatile FLUX-DRIVE™ package for increased shaping power and enhanced stylistic versatility.

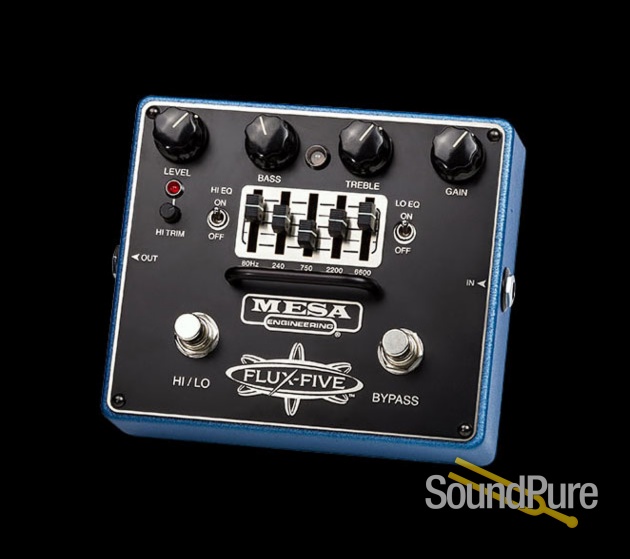

The reception for the FLUX-DRIVE’s fat, smooth, expressive gain has been outstanding among Artists and players alike, and with critical praise backing that up around the globe, it was an obvious recipient for the enhanced power of our Five Band EQ. Introducing the FLUX-FIVE overdrive, a supercharged version of our popular FLUX-DRIVE that features a shrunk-to-size version of our classic Five Band Graphic EQ and new added versatility thanks to footswitchable HI/LO performance Modes. The LO Gain Mode is the original FLUX-DRIVE in every way and now on this wider platform a new higher gain version of this soulful sound appears in the HI Mode. The Graphic EQ allows the popular “V-Curve” EQ setting to be applied to its layers of thick gain creating a huge, wide Heavy Rock or Metal sound that still retains the FLUX’s warm character. The original TREBLE and BASS rotary EQ controls can be used to dial in global enhancements and the combination of the two EQ styles produces signature sounds for any genre.
The Graphic EQ can be applied to both HI and LO Gain Modes enabling you to have a global EQ curve or it can be applied to either gain Mode separately allowing you to have two “preset” sounds with different EQ shapes and gain signatures to switch between. A HI TRIM pot allows the volume level of HI to be adjusted in relation to the original LO (FLUX-DRIVE) Mode. However you choose to utilize all this potential, the warm rich FLUX-FIVE overdrive is sure to inspire you and bring out your best.
PRODUCT FEATURES:
- Designed and Handcrafted in Petaluma, California, USA
- True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
- Input Level Control provides Unity Gain Detent and ability to boost by +6db or cut by -40db
- Output Level Control provides Unity Gain Detent and ability to boost by +6db or cut by -40db
- Slider Controls provide Mesa’s legendary tone-shaping power with +/- 12db of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz and 6.6Khz
- On/Off Status LED
- 9V Battery Powered or Externally Powered (optional) via External Power Jack Input
- Input & Output Jacks (Nominal Input -20db)
SPECIFICATIONS
- Dimensions (W/D/H): 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
- Weight: 1.6lbs (725.7g) with battery, 1.5lbs (680.4g) without battery
- True Bypass Switching
- Battery Type: 9VDC (one)
- Power Consumption (Current Draw): 9VDC/25mA
- External Power Supply (Not Included):
WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with aNEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm. - Input Impedance: 1M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm
