MERGING HAPI has been a hugely popular networked audio converter and instrumental in introducing so many to the exciting world of RAVENNA/AES67. Its economical form factor made it the ideal local stagebox or studio rack unit for any application. HAPI MkII allows full interface card compatibility with the original Hapi and Horus products.
Hapi MKII utilizes the ZMAN technology introduced with Anubis and this powerful processor allows some very meaningful performance upgrades. The introduction of the ADA8S and ADA8P cards improved the headroom of the mic-pre inputs and effectively doubled the analog I/O count to 16 in/16 out in DSD, all in 1U rack mountable box.
Merging’s range of audio device options make Hapi the optimum interface for any DAW, regardless of OS.
Features
Channel-based routing. Each channel can be routed individually to make the most efficient use of resources
Improved AoIP streams performance and reliability for smaller channel banks (<8)
Improved Headphones specifications and features
Mastering grade Headphone Amp
Powerful Headphone Amp suitable for ultra-low to very high impedance headphones.
Headphones DSD volume support (DSD64, DSD128, DSD256)
Headphones DSD256 support.

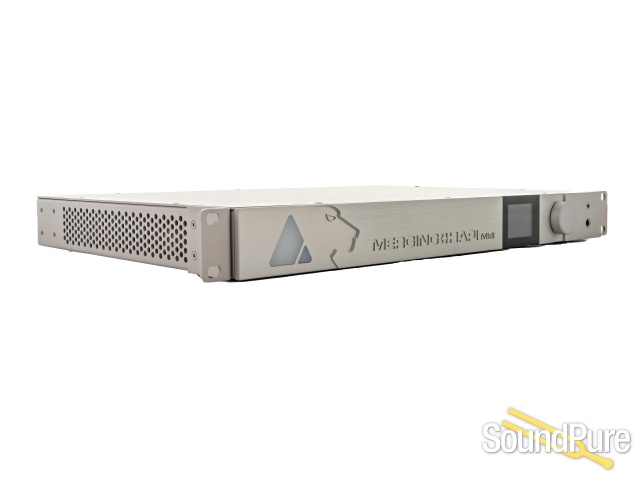

New front panel with improved display. Clear Plexiglas with dimming options
ST2022-7 Support. Perfectly complementing Anubis SPS and MAD, Hapi MKII is now fully compliant with the Seamless Protection Switching strategy
Switch mode support - Remove the need for an external network switch when using one other Networked Interface
Additional DA Roll Off filters
Per channel DA Trims level and polarity support
0.1 dB level precision steps on DA and all trims – Precision mastering control
Per channel Headphones Trims level and polarity support
Hapi MkII Base Unit Features
Modular by Design
Build a Hapi unit to fit your exact needs by adding from range of analog and digital option cards. Put small amount of inputs and outputs in various locations, or load 16 channels of analog I/O in a single unit. Digital I/O conversion and routing can also be managed in this compact unit. Flexibility and power in any form you need.

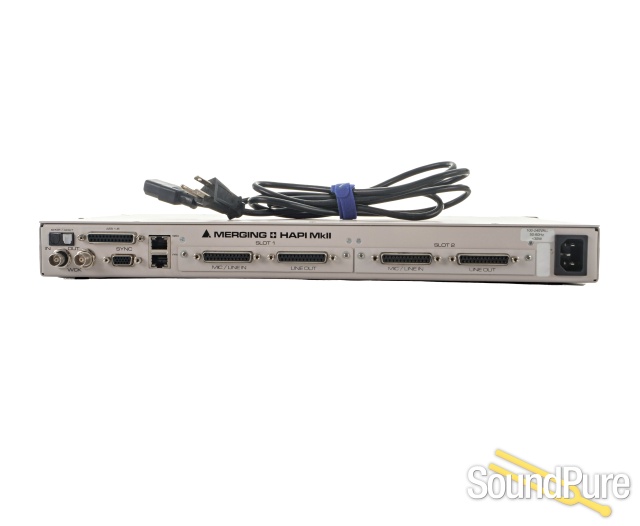

Base Unit - Hardwired Features
- Digital I/O
- 8 AES/EBU I/O (D-SUB)
- 8 ADAT / 2 SPDIF (Switching)
- RAVENNA / AES67 (RJ45)
- Word Clock I/O
- Synchronization I/O
- LTC
- MIDI
- Video Reference
- Sample Rate support
- 44.1 – 384 kHz PCM
- DXD and DSD64/128/256
- User Interface
- Remote control over LAN (CAT5E/CAT6)
- Direct access on unit with rotary control
- Redundant Power Options:
- Optional DC power input to be used as a redundant or alternate power source
Options
- 2 Option slots that fit any combo of:
- 8 Channel Mic/Line Input Card (AKD8D / AKD8DP)
- AKD8D sample rates from 44.1 -> 192kHz
- AKD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
- 8 Channel Line Out Card (DA8/DA8P)
- DA8 Sample rates from 44.1 -> 192kHz
- DA8P sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
- 8 Channel Mic/Line Input & 8 Channel Line Out Card (ADA8S/ADA8P)
- ADA8S sample rates from 44.1 -> 192kHz
- ADA8P sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
- 64 Channels of Pro Tools HD™ connectivity in each card (PT64)
- Sample rates from 44.1 -> 192kHz
- The left slot may be fitted with 64 I/O MADI coaxial/optical module (MADM/MADS)
Note: P and “non-P” cards (Premium and Standard) can be mixed in the same unit
Hapi MkII Base Unit
- Specifications
-
- Case MaterialPowder Coated Steel
- Front Panel MaterialBrushed Aluminum
- Weight (excluding redundant PS)4.5 kg / 10 lbs
- Dimensions (1U rack mounting)483 x 320 x 44 mm
- Voltage (AC)90V–260V, 47–63 Hz
- Voltage (DC) (optional)10-14V
- Power Consumption (Max)< 30 Watts
- Front Panel TFT size/resolutionOLED (160x128 px)
- Headphone Monitor Jacks
-
- Headphone Jacks6.35mm (¼”) & 3.5mm TRS Female Stereo
- Dynamic Range (A-weighted, typ.) High / Low> 118 dB
- Max output Level High / Low15.5 dBu / 7.3 dBu (load 600/16 Ω)
- Max output Power2 x 200 mW (load 16 Ω)
- Frequency response +0/-0.2dB @ fs = 48 kHz6 Hz – 22 kHz
- Frequency response +0/-3dB @ fs = 96 kHz2 Hz – 44.2 kHz
- Frequency response +0/-3dB @ fs = 192 kHz2 Hz – 88.1 kHz
- Output Impedance20Ω
- THD+N 1 kHz @ 0 dBFS High / Low< -106 dB (0.0005%)
- Attenuation Range (Software controlled)- ∞ dB to 12 dB
- Gain Step / Precision0.5 dB / ±0.05 dB
- DXD SupportNative
- DSD SupportDSD 64 to DSD 256
- Sync Connectors
-
- "Sync" Cable (LTC/Video Ref/MIDI)D-Sub 15Pin
- LTC In & Out (via “Sync” Cable)Balanced XLR
- Video Reference In (via “Sync” Cable)BNC
- MTC (I/O via “Sync” Cable)5-Pin DIN
- Word Clock Input (Switchable 75 Ω Termination)BNC, 0.5Vp-p min
- Word Clock Output (Zout = 35 Ω)BNC, 5Vp-p
- Maximum supported deviation+/-1000ppm
- RAVENNA module
-
- RAVENNA Primary / Secondary (GbE)RJ45
- AES-EBU module
-
- AES Connector pinout (DB-25 female)DB25 / AES59 (Tascam Dig.)
- AES I/OGrounded and transformer coupled
- Input & Output Impedance110 Ω
- MADI module
-
- MADI types (Coaxial / Optical)BNC / SC
- Input & Output Impedance110 Ω
- ADAT module
- ADAT/SPDIFOptical Toslink
