Maxon CP-9 Compressor Effect Pedal From Maxon

Compressor Pedal

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Maxon we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from Maxon

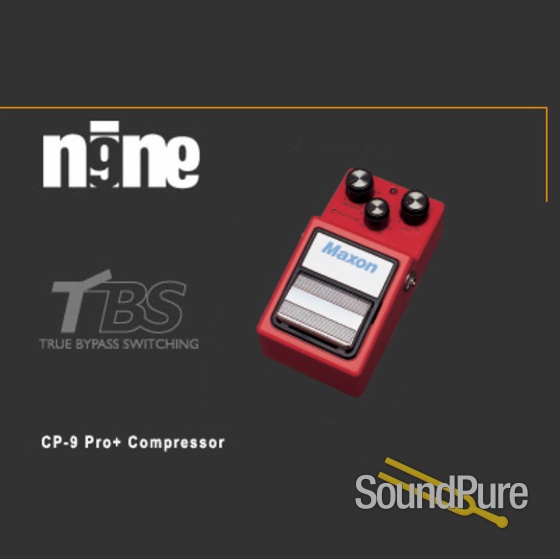

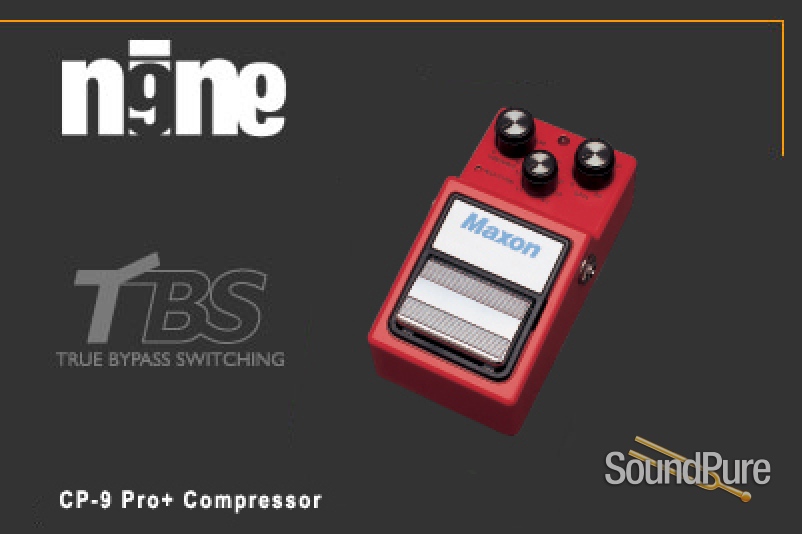

With the CP-9 Pro+, Maxon has taken one of the most lauded compression circuits of all time and placed it in one amazing little stompbox, creating the most "effective" compressor yet!

More than a reissue, the CP-9 Pro+ features a completely redesigned circuit that is vastly superior to the original 1980?s model. The CP-9 Pro+ circuit is based around the patented low-noise DBX compression technology that is used in many high-end pro audio products. This circuit combines a high-quality VCA (voltage controlled amplifier) with an RMS (root mean square) sensor, providing a natural attack response while maintaining an extremely low noise floor generally not found in floor-based units.

The CP-9 Pro+ has Threshold, Ratio, and Gain controls that are extremely interactive and allow for a variety of useful applications for the unit. With a maximum compression Ratio of ?:1 (no increase in output level, regardless of level) the Pro+ can be used as a limiter to balance volume levels. At medium Threshold settings a variety of compression effects from ?pinched? notes to shimmering, sustained arpeggios can be achieved by simply varying the Ratio and Gain knobs. With a maximum Gain of +30 dB and Threshold set at 1:1 (no compression) the Pro+ can also be used as a clean booster to slam the front end of your amplifier or other effects units. The CP-9 Pro+ has the highest Gain available from a pedal compressor, making it possible to achieve a balanced output at any compression setting. A Reduction status LED accurately displays the degree of the compression effect for the user to see when the unit is engaged.

To offer improved performance, Maxon has added their proprietary DC-DC stabilized voltage converter to this DBX-based compression circuit. The converter takes the 9 volt (+/- 4.5 volts) input power and bumps it up to 18 volts (+/- 9 volts). Operation in this voltage range provides a wider dynamic range than ordinary compressors while allowing maximum head room to prevent input distortion. This fuller frequency response makes the CP-9 Pro+ ideal for use with Bass or Keyboards as well as today's high-gain guitar pickups and electronics.

Like all Maxon 9-Series models, the CP-9 Pro+ features True Bypass Switching using a 4PDT mechanical switch, feeding your amp with direct, unaltered signal when the effect is disengaged.

Simply put, the CP-9 Pro+ is the last compressor you'll ever need to buy!

About Manufacturer

Since their beginning in the late 1960s, Maxon has built their reputation on a single concept quality. Early on our engineers realized that anything could be built faster and cheaper, but to build something better was the true mark of a master. Our relentless pursuit of perfection met many obstacles over the years, but like anyone committed to a cause, Maxon kept their sights focused on the ultimate goal to build the highest quality audio products possible. Our quest led us to many firsts in the industry the first realistic tube-amp overdrive; the first compact analog delay; the first multi-effect unit; the first programmable effect the list goes on. And while many companies have "borrowed" these groundbreaking design concepts over the years, few have been able to match Maxon's ingenuity, determination and longevity on their own. Today, after nearly 25 years as an OEM supplier to some of the music industry's largest companies, Maxon is once again offering our own brand of products to the US marketplace. We've made available detailed information on Maxon's line of analog effect units including technical specs, audio demos, user comments, and design secrets that have until now remained classified. We hope you gain as much enjoyment from studying this information as we did in compiling it! Thirty years in, Maxon has their sight set on the same goal to build the finest quality audio products possible, always. Maxon still effecting generations.
