From Manley Laboratories Inc

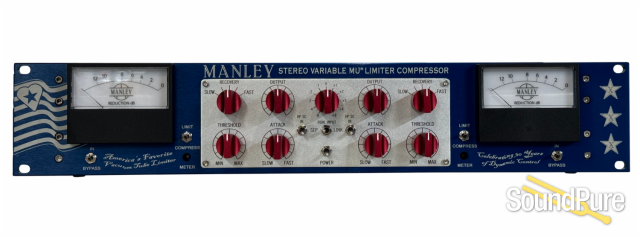

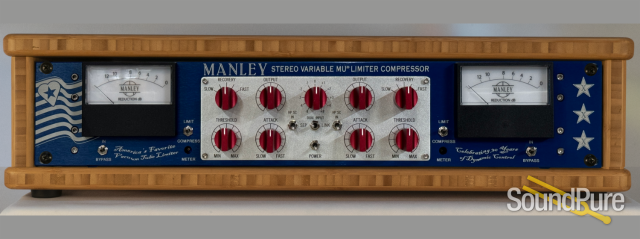

Manley Variable Mu® 30th Anniversary Edition
Stereo Limiter Compressor
The Stereo Manley Variable Mu® Limiter Compressor is the glue that holds your mix togetherwhile crystallizing it into a professional, final product. It takes your track from song, to record.An all-tube, all transformer, all-American legend. And now, it’s time to celebrate its 30th yearon the planet with a limited edition T-Bar XXX version that offers ten critically tested tubes andfour custom wound transformers—everything you love about the Variable Mu, with theexpanded superpower of extreme limiting.This mod makes the Variable Mu even smootherwhen pushed past 6dB of compression. Using two matched 6BA6 pentodes strapped as triodesmakes this choice better than an unobtainable and unsortable 6386. Only 50 units are available,handcrafted from the engineers at Manley—to you.
- MANLEY input & output transformers with nickel laminations in mu-metal cases with flat frequency response from 20Hz-25KHz
- BALANCED INPUTS & OUTPUTS (600 Ohms)
- Fully differential ALL-TUBE circuitry using one each 5670, 5751 (or 12AX7), 7044 (or 5687), & 12AL5 per channel
- Independently regulated B+ and Heater supplies
- Hard-wire BYPASS switch
- Stepped switch INPUT attenuator as of 10/2011. (older units use Silent dual-ganged potentiometer)
- RECOVERY 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
- Variable ATTACK: 25msec-70msec
- Continuously variable THRESHOLD
- LIMIT (4:1 to 20:1) or COMPRESS (1.5 to 1)
- HP SC: High Pass Side Chain Filter -3dB @ 100Hz
- Large ILLUMINATED Sifam METERS (older units before serial number MSLC61642 shipped before 12/2003 use: 26V 1.2W FESTOON LAMPS; Manley's Part Number: VAR016B) Order spare bulbs using our parts order form. (newest units after serial number MSLC61642 shipped after 12/2003 use white LED lighting)
- STEREO LINK SWITCH
- Several units can be linked for Surround (custom order )
- Maximum gain: 35dB
- Max. output: +30dBu (26Vrms) 26dB Headroom
- <0.1% THD @ 1KHz Noise floor: -85dB typical
- Power Consumption (120/240VAC): 80 watts
- Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
- Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
- Mains Fuse Value for 100~120VAC operation: replace with 1.25A as of 10/2011
- Mains Fuse Value for 220~240VAC operation: replace with 0.6A (600mA) as of 10/2011
- Mains Fuse Type: MDA or MDL SLO-BLO Time delay 1 1/4" x 1/4"
- Mains Voltage Frequency: 50~60Hz
- Dimensions: 19” x 3 1/2” x 10” (chassis occupies 2u) Power transformer protrudes 3.5" out the back of the chassis.
- Shipping Weight: 23 lbs.
