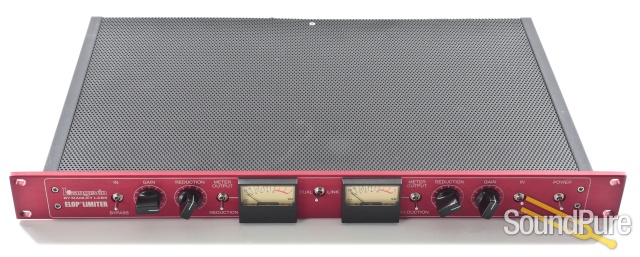

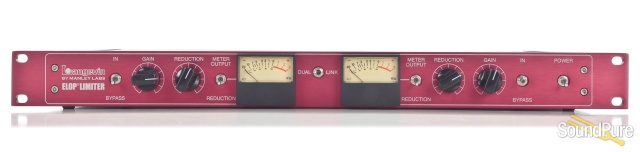

Manley Langevin ELOP - Stereo Electro-Optical Limiter  From Manley

Close

Our product photos are the actual, specific serial number for sale!

This specific item was photographed by us here in Durham, North Carolina. We are a very small team dedicated to providing you the most accurate photos possible, through our obsessive focus - individually photographing nearly everything that comes through the door. Questions about what you see? Want more information, photos, or just a friendly conversation with someone that cares and who has actually had their hands on this exact item? Contact us now!
Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Manley Laboratories Inc

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

What We Think

The ELOP is one of those processors that offers beauty in both sound and simplicity of design. With only two main controls (Make Up Gain and Gain Reduction), it’s pretty hard to mess this limiter up. Because of this and its relatively fast attack (for an electro-optical limiter), the ELOP is one of the best options I’ve used when tracking vocals, guitars, and bass. There, it serves as a smooth and responsive audio leveler by effortlessly controlling louder peaks, resulting in a more even and full performance with a touch of Manley’s famous tube polish.

Oh, and don’t let the “limiter” title scare you. While having a higher ratio that technically qualifies as limiting, the applications where you’d use ELOP overlap with where you’d use a traditional compressor, as opposed to solely mix buss or mastering purposes. Meticulous detail went into designing the ELOP to be a powerful yet forgiving and easy to use box - essentially it’d take some serious determination to make the ELOP sound bad!

Manufacturer's Description from Manley

Langevin ELOP

Set it and forget it! Our Langevin ELOP® Limiter makes your job easy. The principle of operation is based around using a rectified sample of the audio to shine an LED (Light Emitting Diode) onto an LDR (Light Dependent Resistor). The photo-resistor in combination with a fixed resistor simply act as a changing voltage divider to attenuate the signal-- like a smart volume control. A similar principle was found in the older Teletronix & Urei LA-2A, LA-3, and LA-4 units which used a slower electro-luminescent panel-light on a conventional LDR encased in a light-tight enclosure. Ours uses modern VACTROL technology (but with a trick!) for exact sample-to-sample tracking and no high frequency loss while digging deep into limiting-- problems commonly associated with older LA-series limiters and other opto-based units.

The audio signal passes only through all-discrete Class A amplifiers in the Langevin version. Each channel can be run separately or switched to "stereo - link". Due to their inherently quick attack, these Electro-Optical Limiters are skilled soldiers for tracking vocals or individual instruments.

Manley Laboratories Inc

About Manufacturer

The MANLEY brand has been around since the late 1980's. Manley's first commercially available products were upper echelon high-fidelity vacuum tube amplifiers and preamplifiers constructed at the old Vacuum Tube Logic of America factory.

In this history lesson, we'd like to direct special focus on our people at Manley Labs. The people whose years of dedication, service, and expertise bring you people, our customers, these products. It's all about the people...

On January 30, 1989, a 20 year old EveAnna on sabbatical from her studies at Columbia University met the crew and was hired on to the production team. Baltazar Hernandez, already with two years experience, taught her how to solder in those first few days. It was in 1989 that the first Manley professional products were developed, starting with the original 1u Reference 60dB Microphone Preamplifier and soon followed by our Manley Enhanced Pultec and Mid Frequency Equalizers. Baltazar and EveAnna, busy building gear, were soon joined by Saulo and Ramiro. Just next door, Elias was employed by a printed circuit board maker later brought into the Manley Labs fold when in 1993, Manley Laboratories, Inc. became a separate entity apart from VTL. The new Manley Labs factory at 13880 Magnolia Ave. in beautiful and bovine Chino, California was outfitted to house the Manley HiFi and Pro Studio manufacturing as well as the Langevin production lines, our newly acquired machine shop, and printed circuit board facilities.

Specifications

ALL-DISCRETE audio path

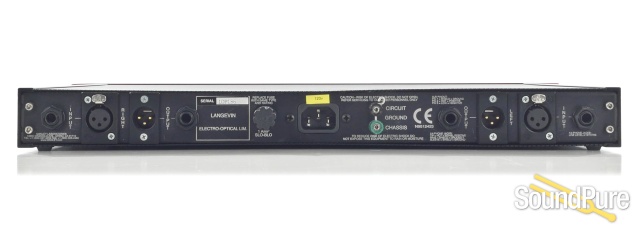

Balanced XLR inputs & outputs and...

Unbalanced 1/4" inputs & outputs

Silent conductive plastic INPUT attenuators

Max. GAIN REDUCTION 22dB

ATTACK time 10mS for 6dB GR

RELEASE: 2.5 Seconds for 6dB GR

BYPASS switches

Sifam VU METERS

Meters switch to read OUTPUT or REDUCTION

STEREO LINK switch

<0.015% THD @1kHz

S/N Ratio: 126dB

Gain: -2 dB to 12 dB (adjustable)

Power consumption (120/240VAC): 24 watts

Factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.

Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.

Mains Voltage Frequency: 50~ 60Hz

Dimensions: 19" x 1 3/4" x 10" (occupies 1u)
