Lynx Hilo Reference A/D D/A Thunderbolt Converter - Used  From Lynx

Mastering grade 2 In 4 Out A/D D/A Converter with a preinstalled Thunderbolt 2 interface card. In Used, Excellent condition

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Lynx Studio Technology

$2,250.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
In Stock!
Ships immediately after order processed!
Payments as low as $51/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

What We Think

Lynx Hilo (pronounced “hee-low”)

There are very few units that are truly “game changers” in the world of digital audio interfaces, and the Hilo is indeed one of them. No detail was left unattended on the Hilo, as the unit has an A/D converter for overdub tracking as well as a D/A converter for mix printing. It also has a separate D/A converter [which provides maximum performance capability] for the Hilo's monitor section, and yet another D/A conversion system for the headphone output!

The design of the Hilo took over 3 years to accomplish. Every trace on the 8 layer PCB is the shortest run possible, and redundant copper ground planes were added for superior noise and cross-talk rejection. Unparalleled attention was paid to component placement to avoid the possibility of infinitesimal current leakage and the potential for capacitive irregularities between components. All of this adds up to one of the best sounding converter systems possible. The net result is spectacularly clear and detailed audio.

The line inputs are fully balanced and buffered to provide high input impedance and rejection of common mode noise. The line output faithfully mimics the qualities of transformers using precision amplifier circuitry. Both the inputs and outputs exhibit an extremely flat frequency response of ±0.02dB of variation – and that's in the worst case!

As a converter's full-scale signal level must match a studio's line level closely to minimize noise, Hilo provides eight standard trim settings on line inputs and outputs. To accomplish this, Telecom-quality relays with gold-plated contacts are used to avoid any additional distortion and/or noise that can be caused by other fain-switching methods that are commonly employed in lesser devices.

Hilo also incorporates Lynx's proven SynchroLock™ sample clock, which generates an extremely low-jitter situation when syncing internally, as well as when syncing to external clock sources. Additionally, the BiLinear™ conversion technology was developed. Based on a completely differential topology that minimizes noise pickup and reduces harmonic distortion components, high-speed differential amplifiers are employed to provide an ideal interface for all your two channel conversion needs. This insures proper transient response, as well as the most linear audio possible. The ability also exists to pick up the output level by 14db to use the “monitor output” as an additional “line level” output, which adds to the overall flexibility of the Hilo.

The real icing on the cake is the user interface, which employs a touch screen display for all your function selection, routing, and metering requirements. The metering options include both PPM [Peak Program Meters] for the input and output, as well as a “vintage” looking VU [Volume Unit] option that will supply the RMS metering option that is so important for understanding the true loudness of a mix.

Between the superior sounding A/D conversion, amazingly stable clock, attention to detail on the build, ease of setup via the “touch screen” menus, a superior monitor output section that works in 1/2dB increments [like units that only have a D/A and cost 3 times more], flawless audio from the headphone output, and the planning ahead Lynx did with the Hilo's expansion slot [which will permit interface with any current and future format!], all of your audio requirements are totally covered!

Manufacturer's Description from Lynx

Lynx Reengineers the two-channel converter format with innovative features and control

Lynx Studio Technology is proud to present the Hilo Reference A/D D/A Converter System. With the pristine, open, transparent audio quality for which Lynx is known, Hilo (pronounced HE-low) provides two channels of mastering quality analog to digital conversion, up to eight channels of digital to analog conversion, a secondary monitor output, and a world class independent headphone amplifier in a compact half-rack size. A first for the two-channel pro converter market, Hilo’s innovative 480 x 272 touchscreen provides a flexible and intuitive interface that can adapt to a particular application and be easily upgraded with enhancements and new features. Initial front panel controls support extensive signal routing and mixing, sample rate selection, clock source options, levels, metering and diagnostic features.

Hilo completely redefines and evolves the category of the two channel converter. Of utmost importance is the audio signal quality. The completely new design of the analog stages and converter topology for Hilo break new ground in terms of lowering distortion and noise while maintaining transparency for A/D and D/A conversion. Beyond that, Hilo offers extensive I/O capabilities and utilizes the latest FPGA technology with vast resources for control, routing, and signal processing capabilities. Also in development are diagnostic and analysis tools for Hilo. The LCD screen is a natural interface for these functions.

The digital or analog inputs can be routed to three separate outputs, Line Output (with 8 trim settings), Monitor Output, and Headphone Output. Each of these output pairs has its own dedicated DACs, allowing each to offer a unique mix. The Monitor and Headphone Outputs have volume controls, accessible via faders on the touchscreen or the single knob on the front (offering control in ½ dB increments). Another innovation, the Headphone section has its own dedicated D/A converter. This supports the creation of 32-channel headphone mixes independent of the main and monitor outputs, as well as providing specifications that rival those of dedicated headphone amps costing $1500 and more.

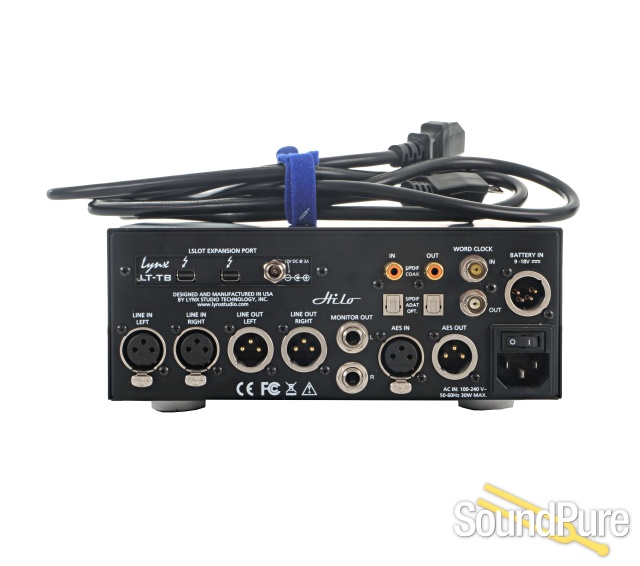

The digital section offers a wide range of inputs. AES/EBU inputs and outputs have transformer isolated balanced XLR connectors. SPDIF input and output are available via transformer-coupled coax or optical (TOSLINK) connections. The Optical ports can also be used for up to eight ADAT channels. The ADAT input and output channels are completely independent from the AES/EBU or S/PDIF coax channels.  Lynx’s low jitter SynchroLock word clock is also included, with Word Clock in and out connections available.

In total, Hilo has 12 total inputs, 16 total outputs plus 32 channels possible via its LSlot port. The unit’s FPGA powers its internal 32 channel mixer, which allows Hilo to offer the most versatile I/O and routing in the two channel converter genre. This is just the beginning of the innovation.

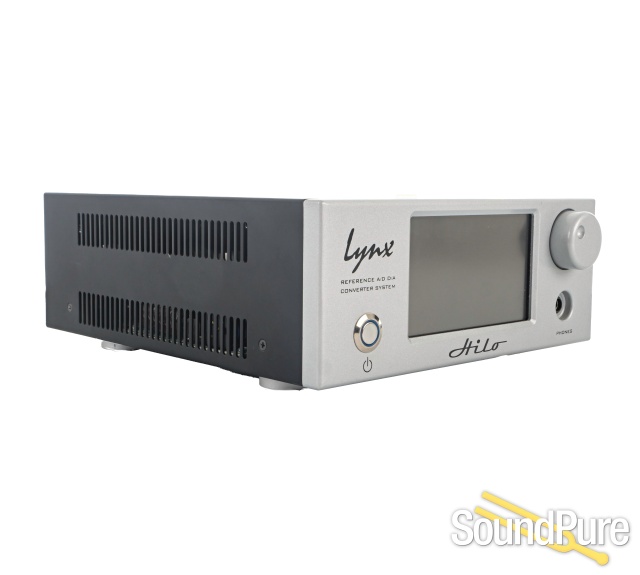

In contrast to the concentrated and intricate back panel, Hilo’s front panel is elegant in its simplicity. It has a power switch, headphone jack, multipurpose control and a 480 x 272 pixel high resolution LCD touchscreen. This high-resolution screen does a lot more than simply replace the buttons on the front panel of most other converters. Of course it handles the basic settings and routing functions, clocking and level settings.

A second meter screen shows just two larger bar-graph style stereo bar meters. Any input or output set can be assigned to each meter. In addition to bar-graph meters common on most converters, Hilo’s touchscreen is able to show more traditional metering types, such as old style VU meters. Also in development are diagnostic screens, such as real time analyzer, phase meter and loudness meter. As with all other Lynx products, Hilo is FPGA based, meaning new features, capabilities and graphics can be added at any time with a simple download.



LT-TB LSlot card

The LT-TB is a two-port Thunderbolt expansion card that supports daisy-chaining Aurora and Hilo converters and any other certified Thunderbolt device on both Apple and Windows computers. The LT-TB and accompanying Aurora and Hilo models are the first Thunderbolt audio devices certified for Windows as well as Mac.

The LT-TB LSlot card can be installed into any existing Hilo or Aurora with an easy and free firmware update. In addition, Lynx is making Thunderbolt equipped Aurora and Hilo models available at the same time. These models are:

• Hilo-TB in Black and Silver

• Aurora 16-TB

• Aurora 16-VTTB (variable trim model)

• Aurora 8-TB

The LT-TB, in development for over a year, uses Intel’s Cactus Ridge second-generation Thunderbolt controller. This device allows for a more robust design electrically. Similar to other Lynx products, LT-TB incorporates an FPGA for audio mixing and control functions that can be easily updated in the field.

Months of in-house testing along with support from Apple and Intel assure that LT-TB works well with any other certified Thunderbolt product on the market.

Whereas some earlier Thunderbolt equipped converters are limited to two units and 32 analog channels, the LT-TB can be used in a chain of up to 6 Aurora converters for up to 96 analog channels, plus 96 digital channels on one Thunderbolt port. So theoretically, the upcoming 6 port Mac Pro could deliver up to 1,152 channels.

The Thunderbolt protocol allows up to six devices and one display to be connected to the computer on a single Thunderbolt port. So in addition to Lynx converters, you can have external drives, displays, expansion chassis and so on. The LT-TB has two Thunderbolt ports, which allows this daisy chaining of devices.

One of the other nice features of the LT-TB and other Thunderbolt devices is the ability to plug, unplug and hot-plug them. So you can easily bring in an additional Aurora or Hilo or other Thunderbolt device without needing to reinstall drivers or reset anything. It’s all automatic.

According to Intel, the developer of Thunderbolt, “Thunderbolt delivers unparalleled performance, flexibility and simplicity to personal computing.” said Jason Ziller, Intel’s director of Thunderbolt Marketing, “Products like the Lynx LT-TB LSlot interface help highlight what Thunderbolt makes possible.”

Thunderbolt technology is the fastest connection to your PC at 10Gbs – in each direction, and at the same time. This is twice the speed of USB 3.0. Thunderbolt provides flexibility and simplicity by connecting up to six data and display devices in a daisy-chain.

Lynx Studio Technology

About Manufacturer

Lynx Studio Technology, Inc. is a debt-free, privately held corporation that designs and manufactures professional, computer related audio products. The company was formed by a team of engineers previously associated with industry-leading digital audio companies with the goal of utilizing cutting-edge technology to create the highest quality products at a good value to the customer. The Lynx team is focused on "linking" the professional audio world with computers by utilizing their many years of experience in both hardware design and device driver coding. This complementary expertise is borne out in reliable products that not only have great specifications, but are also shipped with extremely stable and well-tested drivers. Support for Windows 95/98/ME/NT/2000/XP and Macintosh platforms are standard for most products. With the ability to support multiple platforms, buses, and operating systems Lynx plans to supply products to a variety of audio markets and applications such as audio production, delivery, and testing for recording studios, project studios, post production studios, home studios, and live concert settings. Lynx supports the retail market with a standard product line through its dealers and distributors. Lynx also supports OEM?s for larger quantities and custom designs. For information regarding retail and OEM sales please contact us at:

Specifications

Crucial for mastering and critical listening, Hilo offers world class, verifiable specifications. Actual measurements of a preproduction model show:

LINE IN A/D PERFORMANCE

THD+N -114dB @1kHz, -1dBFS, 20kHz filter

Dynamic Range 121 dB, A-weighted, -60dBFS signal method

Frequency Resp. ± 0.01 dB, 20 – 20kHz

Crosstalk -140 dB maximum @ 1kHz, -1dBFS signal

LINE OUT D/A PERFORMANCE

THD+N -109dB @1kHz, -1dBFS, 20kHz filter

Dynamic Range 121 dB, A- weighted, -60dBFS signal method

Frequency Resp. ± 0.02 dB, 20 – 20kHz

Crosstalk -135 dB maximum @ 1kHz, -1dBFS signal

Hilo can be powered by standard 110-230V AC power or remotely with 9-18 volts DC, allowing the use of standard video battery packs or even auto cigarette lighter connections. Hilo measures 8.50 x 3.25 x 10.00 inches, weighs 6.75 pounds and will be available with a silver or black front panel/knob option. Now available in Silver and Black, the US suggested retail price is $2495.

It is impossible to compare Hilo to other two channel AD and DA converters. In fact it is a unique product that is, at first, a little difficult to get your head around. Basically, Hilo replaces three different, critical components:

#1 Hilo is an analog to digital converter

#2 It is also a digital to analog converter. With most companies, these are two separate units.

#3 It is an independent headphone amplifier. The headphone section has its own, dedicated D/A converter. This provides two key benefits. First this allows Hilo to offer a headphone output with exceptional clarity and noise specifications. Second, due to Hilo’s internal 32 channel mixer, any input set can be routed to the headphone stereo output. This means that a mix that is entirely different from the analog outputs and monitors can be applied to the headphones.

  • Hilo is a 3 in one unit – AD converter, DA converter and Headphone with its own dedicated D/A converter.
  • There are three unique sets of analog outputs: main analog output, monitor output (with volume) and headphone output (with volume)
  • The flexible digital I/O section offers the choice of AES/EBU, SPDIF by coax or TOSLINK optical, or ADAT formats
  • The innovative design of the analog stage and converter topology allow ultra low noise and distortion specifications
  • A 480 x 272 pixel LCD touch screen for operation and monitoring
  • A 32 channel internal mixer in the updatable FPGA
  • 12 total inputs, 16 total outputs plus 32 channels possible via LSlot.
  • AC powered with Battery operation available
  • Open ended software for future measurement, metering, diagnostic and personalization features using the touch screen LCD.
  • Size - 8.50” wide x 3.25” tall x 10.00” deep (half rack, two spaces)
  • Weight: 6.75 pounds
