Sound Pure's Take
Condition: Used, Excellent
From Lynx Studio Technology

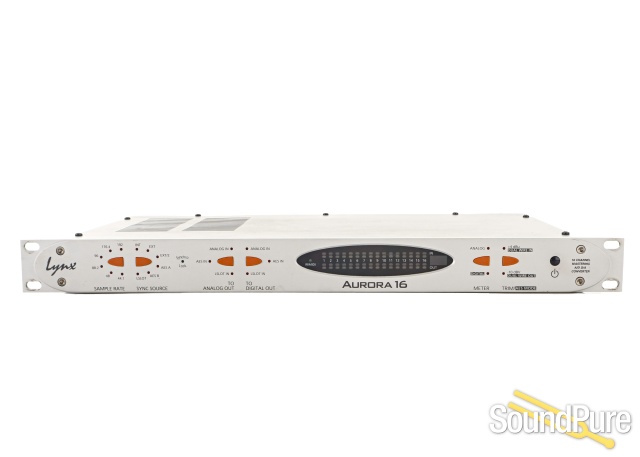

The Aurora 16 and Aurora 8 AD/DA converters provide world-class analog to digital and digital to analog conversion in a compact one-rack space format. With sample rates up to 192 kHz, Aurora offers wide, open, uncompressed and unequalized audio for studios, mastering facilities, remote recording, broadcast and production. Lynx’s exclusive SynchroLock word clock offers extreme jitter reduction, providing clean digital audio signals for Aurora and other digital devices in the studio.
Aurora also avoids some of the limitations that other pro level converters have. Aurora does not have a noisy fan, does not lose channel count at higher sample rates and does not require costly analog and digital modules to achieve the unit’s full channel count.
Aurora can be used with any audio content. Equalization and limiting functions, which can color or alter the sound, have not been added. Lynx’s design provides accurate conversion, clear clean audio, wide imaging – the sound you put into Aurora is the sound that you get out of Aurora.
Several interfaces allow Aurora to be used in a number of different configurations. LT-HD allows Aurora to be recognized by and controlled from a ProTools|HD® system. FireWire access is easy using the LT-FW. 16 channels of ADAT Lightpipe I/O is made available with the LT-ADAT. LT-MADI allows up to four Aurora converters to send and receive up to 64 MADI channels. The LT-USB is a USB 2.0 device for up to 16 I/O channels. And Lynx AES16 and AES16e allow interface with a wide range of Windows and Macintosh computers.
The Aurora 16 was nominated for a TEC award in 2005. Aurora with LT-HD was nominated for a 2007 TEC award.
Aurora 16 converters are preconfigured for three voltages. Aurora 115 volt models are available in the US, Canada, Mexico and Brazil. The 100 volt models are available in Japan only. 230 volt units are available throughout the rest of the world through authorized distributors and retailers.
- Simultaneous 16 Channel Analog I/O and 16 Channel AES/EBU I/O
- 24 Bit / 192 kHz Mastering Quality A/D and D/A conversion
- 192 kHz AES/EBU I/O Supporting Single and Dual Wire Modes
- Single Rack Space Configuration
- Extensive Remote Control Capability via Lynx AES16, IrDA and MIDI
- On-board 32 Channel Digital Mixer Provides Flexible I/O Routing
- Word clock I/O with Lynx SynchroLock™ Sample Clock Technology
- Digital I/O DB-25 connectors follow Yamaha pinout protocol
- Analog I/O DB-25 connectors follow Tascam pinout protocol
- RoHS compliant
- Available in 100V, 115V and 230V models
LYNX AURORA 16 AND AURORA 8 SPECIFICATIONS
ANALOG I/O
Aurora 8 Eight inputs and eight outputs
Aurora 16 Sixteen inputs and sixteen outputs
Type Electronically balanced or unbalanced
Level +4 dBu nominal/ +20 dBu max, or -10 dBv nominal / +6 dBv max
- Input Impedance Balanced mode
- 24k Ω
- Unbalanced mode
- 12k Ω
- Output Impedance Balanced mode
- 100 Ω
- Unbalanced mode
- 50 Ω
Output Drive 600 Ω impedance, 0.2 µF capacitance
A/D and D/A Type 24-bit multi-level, delta sigma
ANALOG IN PERFORMANCE
Frequency Response 20Hz - 20kHz, +0/-0.1 dB
Dynamic Range 117 dB, A-weighted
Channel Crosstalk -120 dB maximum, 1 kHz signal, -1 dBFS
THD + N -108 dB (0.0004%)@-1DBFS
104 db (0.0006%)@-6DBFS
1 kHz signal, 22Hz-22kHz BW
ANALOG OUT PERFORMANCE
Frequency Response 20Hz - 20kHz, +0/-0.1 dB
Dynamic range 117 dB, A-weighted
Channel crosstalk -120 dB maximum, 1 kHz signal, -1 dBFS
THD + N -107 dB (0.00045%)@-1DBFS
106 dB (0.00050%)@-6DBFS
1 kHz signal, 22 Hz-22kHz BW
DIGITAL I/O
- Number/Type Aurora 8
- 8 inputs and 8 outputs
- Aurora 16
- 16 inputs and 16 outputs
24 bit AES/EBU format, transformer coupled
- Channels Aurora 8
- * in/out in single wire mode
4 in/out in dual wire mode
- Aurora 16
- 16 in/out in single wire mode
8 in/out in dual wire mode
Sample Rates All standard rates and variable rates up to
192 kHZ in both single-wire and dual-wire modes
ON-BOARD DIGITAL MIXER (VIA AES16/AES16e)
Type Hardware based, low latency
Routing Ability to route any input to any or multiple outputs
Mixing Up to four input or playback signals mixed to any
output, 40-bit precision
Status Peak levels to -114dB on all inputs and outputs
CONNECTIONS
Digital I/O Ports 25-pin female D-sub connectors
- Port A
- channels 1-8 I/O
- PortB
- channels 9-16 I/O (aurora 16 only)
Yamaha pinout standard
Analog I/O Ports 25-pin female D-sub connectors
Analog in 1-8
Analog in 9-16 (Aurora 16 only)
Analog out 1-8
Analog out 9-16 (Aurora 16 only)
Tascam Pinout standard
External Clock 75-ohm BNC word clock input and output
MIDI One input and one output, standard opto-isolated
5-pin female DIN connecters
REMOTE CONTROL OPTIONS
Function Controls all I/O, levels, monitoring, routing and setting recall
- Method AES16-AES16e
- with PC or Mac IrDA: For compatible Pocket
PCs and laptops
- MIDI
- Selected MIDI devices
GENERAL
AC Power 110/115/230 VAC, 70 watts
Size 1.75" H x 19"W x 9"D
Shipping Weight 12lbs
Certifications CE and FCC Class B EMI, CE Product Safety
LSLOT™ EXPANSION PORT
Compatibility Supports Lynx Lslot expansion cards
Channels Up to 16 input and 16 output simultaneously at up to
192 kHz sample rate
OPTIONAL INTERFACE CARDS FOR LSLOT
LT-ADAT Provides ADAT Optical I/O
LT-HD For ProTools/HD/Native
LT-FW Provides up to 16 channels via FireWire 400
LT-MADI Provides up to 64 MADI I/O channels
LT-USB Provides up to 16 I/O channels, USB 2.0
LT-FW Expansion Card Specs
Two FireWire 400 (IEEE-1394a) ports
Up to 16 channels of analog I/O at 96 kHz
Works with Apple and Windows PCs, including laptops, with compatible FireWire port
Supports ASIO and WDM for Windows and CoreAudio for Mac OSX
All relevant settings, such as sample rate selection, sync source selection, channel routing, latency, and buffer size are enabled, controlled and monitored from the host computer
Full WDM implementation allows multiple channel support of 5.1 and 7.1 surround playback formats
Easily installed into Aurora converters
Ideal for in-studio or remote recording applications
RoHS compliant
Shipped with two 6’ FireWire cables (4-pin and 6-pin)
Manufactured in the USA by Lynx Studio Technology, Inc.
