From Locomotive Audio

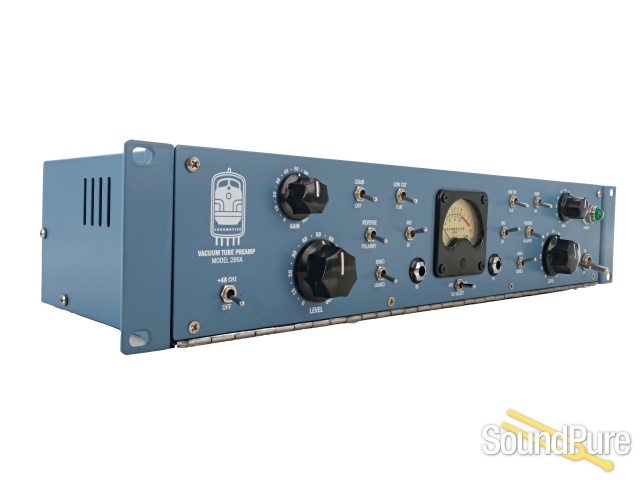

The Locomotive Audio 286A Preamp offers two huge channels of sweet & harmonic tube preamp gain. This is the unmistakable vintage sound of tubes & transformers!
From beautiful glowing vocals, natural acoustics and punchy drums to overdriven and saturated classic tube warmth, the two channel 286A preamplifier offers a huge sonic palette for engineers and producers to explore.
The Locomotive Audio 286A Preamp offers a huge sonic palette for engineers and producers to explore. Its single-ended Class A tube signal path is what makes this preamplifier so special. Inspired by the great vintage Ampex 601 vacuum tube tape recorder, the 286A features four tubes; there is one EF86 and one 12AY7 per channel. The 286A can play nice by acting clean and natural with gentle even-order harmonics for a smooth, sweet touch. Get more aggressive with the “Gain” knob and drive the first 12AY7 stage for a warm and colored thickening effect. Go all-out and slam the final 12AY7 stage and output transformer through the “Level” knob for a fully-driven, saturated tube amp sound! Clean and natural to overdriven and fuzzy warm; your choice!
Along with its classic tube gain stages, the 286A has been given the modern front panel features that allow for flexible interfacing with today’s studio equipment.
- Microphone and high impedance instrument inputs
- One EF86 & one 12AY7 per channel
- Polarity reverse switch
- 20dB pad switch
- 100 Hz low cut filter switch
- Microphone load impedance switch
- Mic/DI selection switch
- +48v phantom power switch
- 3-position VU meter switch: CH1 - Off - CH2
- Custom Sifam backlit VU meter

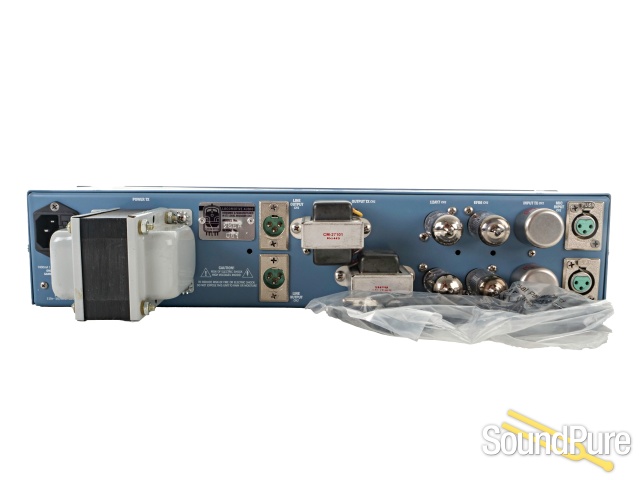

- XLR input and output connections
- Cinemag input and output transformers
- High-grade Solen capacitors in signal path
- Hand-built in USA
- Heavy 16 gauge steel chassis
- 115v/230v AC mains option on rear
- Microphone input load impedance
- 500Ω or 1800Ω
- Output impedance
- 300Ω
- 1/4" DI impedance
- 169kΩ
72dB of gain
- Frequency response
- 20Hz-20kHz
- Maximum 20Hz & 1kHz input level for 1% THD
- -18dBu (+2 dBu with Pad)
- Maximum output level
- +24dBu
- THD+N
- <1%
- S/N ratio
- >70dB
- Dimensions
- 19"w x 3.5"h x 10"d (2u rackspace)
- Shipping Weight
- 18 lbs.
- Power Consumption (120/240VAC)
- 25 watts
