Sound Pure's Take
Condition: Used, Excellent

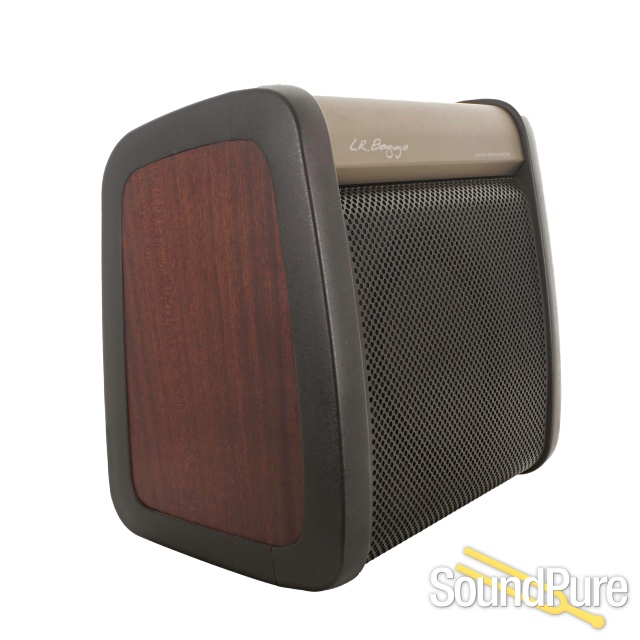

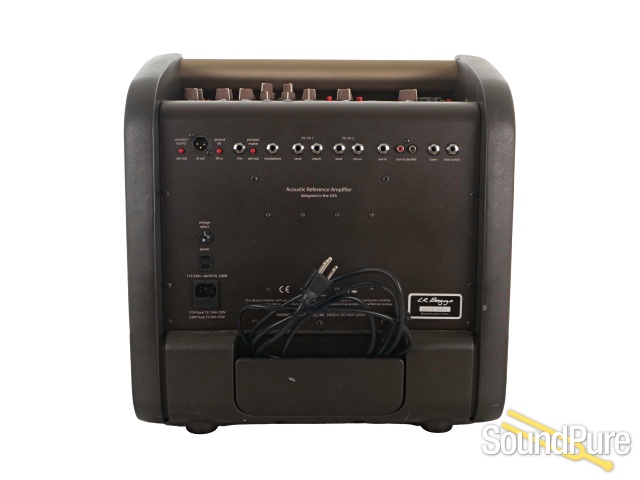

Experience pristine, studio-quality sound reinforcement with the L.R. Baggs Reference Acoustic Amplifier! Designed specifically for discerning acoustic musicians, this high-grade amplifier features an ultra-high 10-megohm 1/4" input alongside a balanced XLR input, ensuring both high-impedance piezos and studio microphones sound natural, detailed, and uncolored. Deep tone-shaping is made simple with a semi-parametric 4-band EQ and a sweepable notch filter designed to eliminate problematic feedback frequencies on live stages. Pushing up to 108 dB SPL and loaded with direct, line, and FX loop routing options, this 28 lb portable rig offers unbeatable dynamic headroom and tour-ready durability for acoustic soloists and multi-instrumentalists alike.
1/4” INPUT
Input Impedance: 10 megohms
Preamp Gain - 8 to + 40dB
Input Level - 40dBv to +20dBv (.01Vrms to 3.53Vrms)
XLR INPUT
Input Impedance 6.8K ohms (Each leg of balanced)
Preamp Gain - 8 to + 50dB
Input Level -50dBv to +12dBv (.003Vrms to 4.2Vrms)
AU X INPUT
Input Impedance (1/4” mono) 6.6K ohms
Input Impedance (1/4” stereo) 20K ohms
Input Impedance RCA 20K ohms (each side)
Input Level -10dBv to +17dB (.3Vrms to 7Vrms)
EQ
Notch - 21 dB, sweepable from 60Hz to 320Hz
(The notch is bypassed when clicked to the “off ” position - full CCW)
Bass +/- 12dB @ 100 Hz
L o Mid +/- 12dB @ 500Hz, sweepable from 200Hz to 1kHz
Hi Mid +/- 12dB @ 2kHz, sweepable from 1kHz to 5kHz
Treble +/- 12dB @ 10kHz
EFFECTS LOOPS
Send Level -5dBv (0.5Vrms)
Output Impedance 600 ohms
Return Level +6dBv (2Vrms) Maximum before clipping
Input Impedance 20K ohms
D.I. OUT
Output level -8dBv (0.4Vrms) Balanced
Output impedance 600 ohms
LINE OUT
Output level -10dBv (0.3Vrms)
Output impedance 600 ohms
TUNER OUT
Output level -10dBv (0.3Vrms)
Output impedance 600 ohms
OUTPUT SPL MA X 108dB at 1 meter (full range)
POWER
AC Power Consumption 220W Max
AC Current Draw 230V = 1A, 110V = 2A Max
Voltage Range (115V Setting) 90V - 130V, 50Hz - 65Hz
Voltage Range (230V Setting) 190V - 260V, 45Hz - 60Hz
PHYSICAL CHARACTERISTICS
28 lbs, 17.50” Width x 12.25” Depth x 18.0” Height
