From Kali Audio

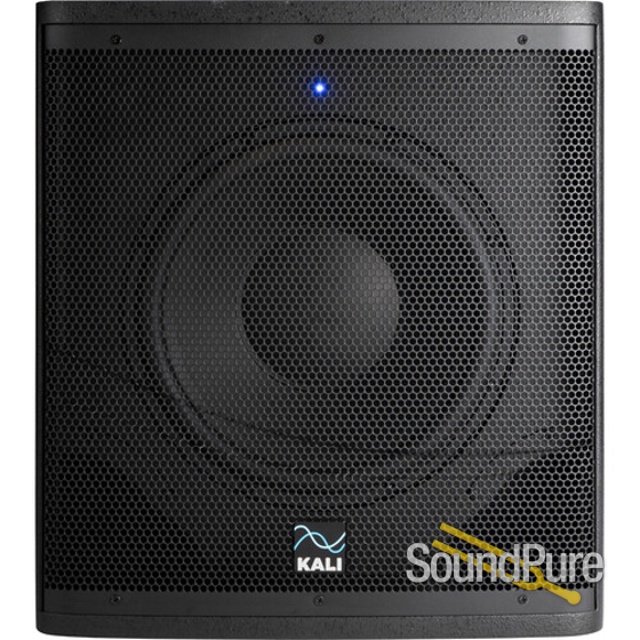

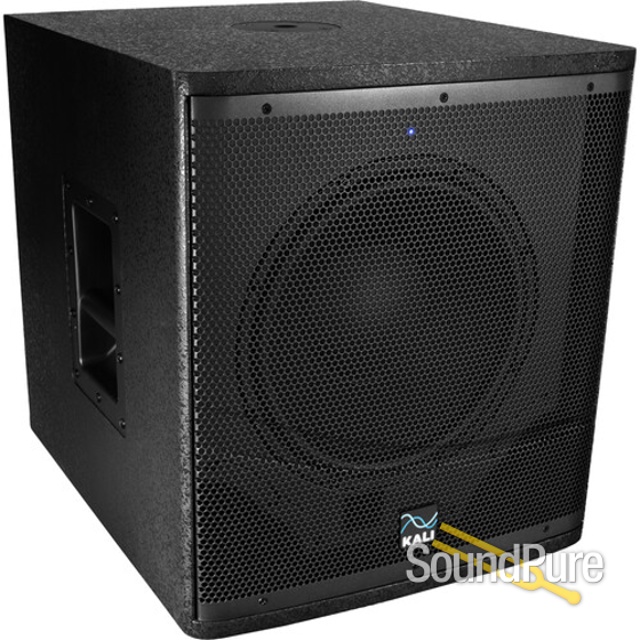

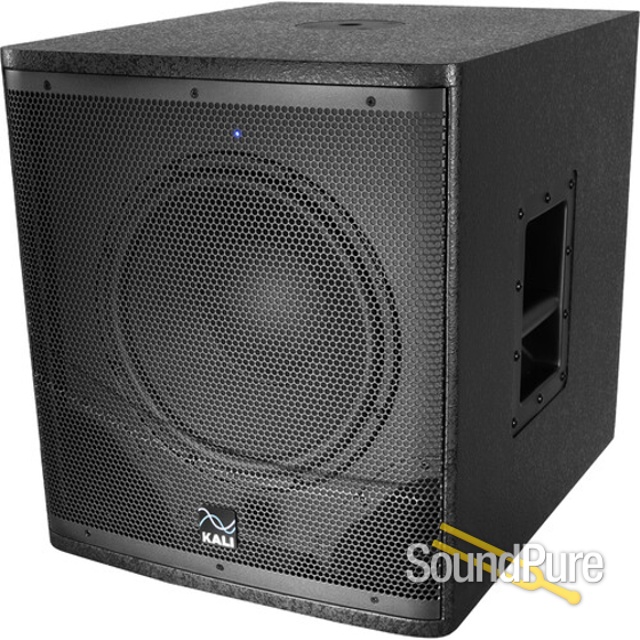

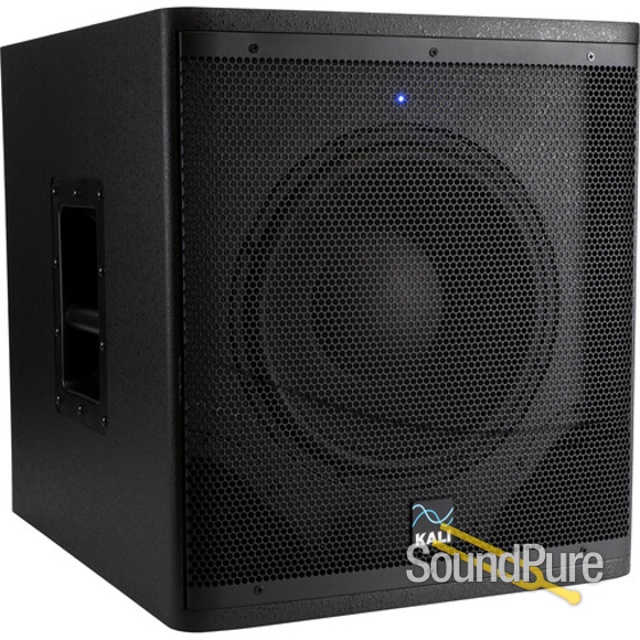

Designed for studio or light-duty stage applications, the Kali Audio WS-12 V2 is an active 12" subwoofer, well suited for recording studios, broadcast environments, film mixing, and small stage setups. The WS-12 V2 utilizes a 1000W Class-D amplifier to power the woofer, which is capable of a frequency response of 30 to 180 Hz at ±3 dB and a maximum SPL of 123 dB.

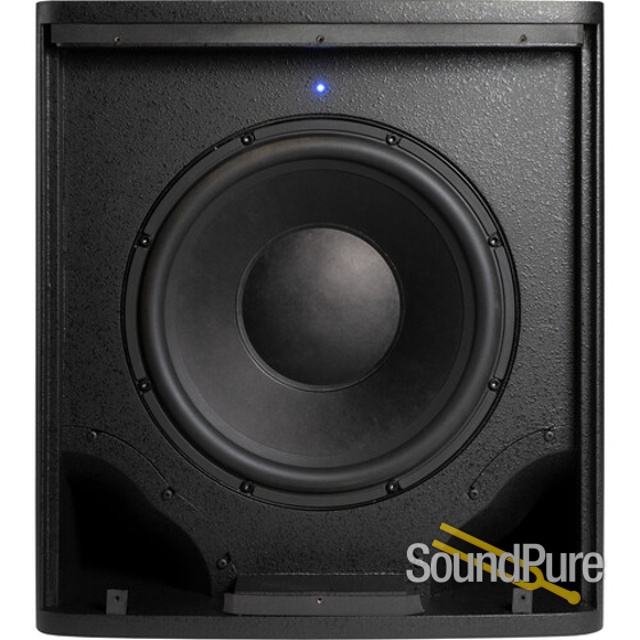

The WS-12 excels at reproducing film soundtracks and bass-heavy music like EDM and hip-hop. The front-firing port tube is designed to ensure that all the air leaves the port tube at the same velocity, preventing turbulent chuffing while creating a tight, clean bass tone that is devoid of noise.

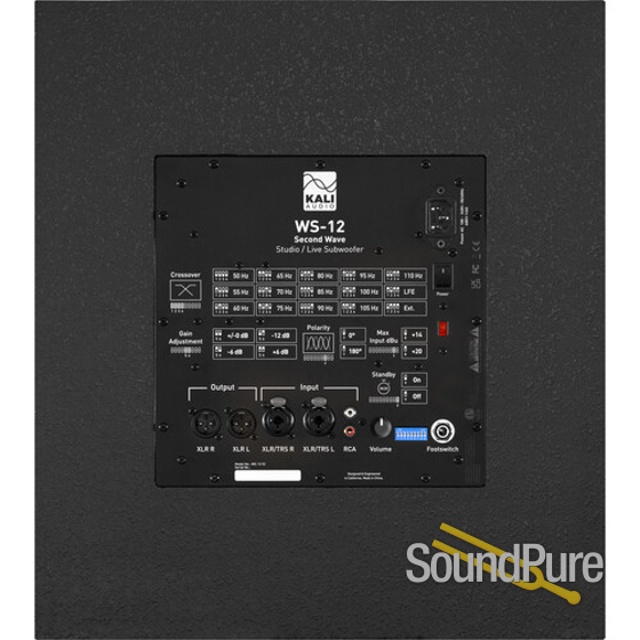

The rear panel offers several DIP switches for setting crossover settings, gain controls, and polarity. Two combo XLR-1/4" inputs and two XLR outputs allow for flexibility when deploying in the studio or onstage. Additionally, there are a pair of RCA inputs, which are defeatable via DIP-switch settings. A universal power supply allows the WS-12 to be used anywhere in the world with the flip of a switch. The Kali Audio WS-12 V2 ships with a power cord.
At a Glance
- 12" woofer
- Class-D 1000W amplifier
- 23 to 180 Hz frequency range
- User selectable crossovers
- 123 dB maximum SPL
- Combo XLR-1/4" inputs + stereo RCA
- Two XLR outputs
- 1/4" foot switch

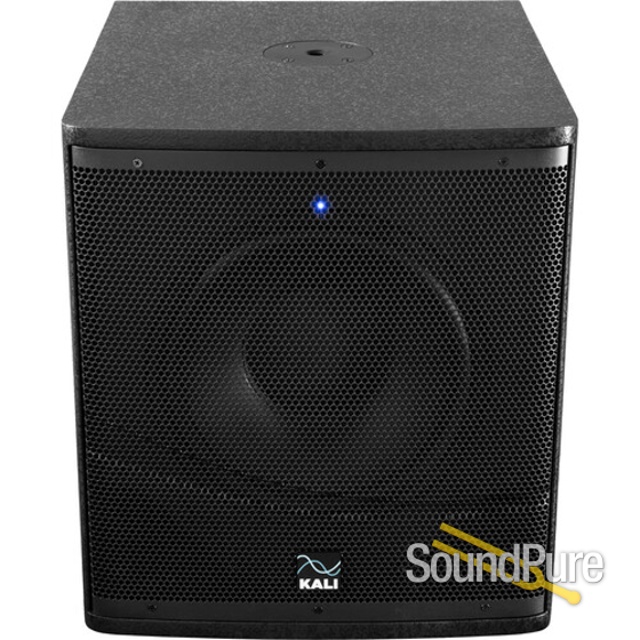

- M20 threaded pole cup for speaker pole
- Monitor Type & Configuration
- Active Subwoofer
- Total Power Output
- 1000 W Peak, 500 W RMS
- Subwoofer Drivers
- 1x 12" / 30.48 cm Cone, Voice Coil: 2.5" / 63.5 mm
- Frequency Range
- 23 Hz to 250 Hz (-10 dB)
- Audio I/O
- 2x Combo XLR-1/4" TRS Balanced Line Input, 1x Stereo 2RCA Unbalanced Line Input, 2x XLR 3-Pin Balanced Line Output
- Digital Audio I/O
- No
- Network I/O
- No
- Wireless
- No
- Enclosure
- Bass-Reflex/Ported
- Total Power Output
- 1000 W Peak, 500 W RMS
Drivers
- Subwoofer Drivers
- 1x 12" / 30.48 cm Cone, Voice Coil: 2.5" / 63.5 mm
- Amplifiers
- Subwoofer: 500 W / 1000 W Peak Class-D
Performance
- Frequency Range
- 23 Hz to 250 Hz (-10 dB)
- Frequency Response
- 30 Hz to 180 Hz ± 3 dB
- Maximum Sound Pressure Level (SPL)
- 123 dB
- Signal-to-Noise Ratio
- 115 dB
- Total Harmonic Distortion (THD)
- <2%
- Protections and Limiting
- Limiter
Signal Processing
- EQ
- No
- Filters
- No
- Crossover Frequency
- High-Pass: 50 to 110 Hz (Defeatable)
- Phase Adjustment
- 0 / 180° Phase Inversion
Connectivity
- Audio I/O
- 2x Combo XLR-1/4" TRS Balanced Line Input, 1x Stereo 2RCA Unbalanced Line Input, 2x XLR 3-Pin Balanced Line Output
- Digital Audio I/O
- No
- Network I/O
- No
- Other I/O
- 1x 1/4" Footswitch
- USB
- No
- Wireless
- No
- Mobile App Compatible
- No
Power
- AC Input Power
- 110 to 230 VAC, 50/60 Hz
- Power Consumption
- 600 W (Maximum)
Physical
- Color
- Black
- Monitor Orientation
- Vertical
- Enclosure Material
- Plywood
- Dimensions (W x H x D)
- 17.2 x 19.2 x 20.5" / 43.7 x 48.8 x 52.1 cm (Subwoofer)
- Weight
- 58.0 lb / 26.3 kg
Packaging Info
- Package Weight
- 63.68 lb
- Box Dimensions (LxWxH)
- 25.5 x 24.25 x 22.25"
