The groundbreaking multi-track MADI recorder based on the original award-winning BLACKBOX Recorder design, the BBR64-MADI can capture a full 64 channels of MADI data at standard sample rates directly to Broadcast WAV files on an external USB2 drive. Double sample rate MADI recording (up to 96kHz) is also accommodated.
The recorder sports both coaxial and optical MADI connections for interfacing with any MADI equipped console or other equipment. Additionally, the BBR64-MADI caters for 56-channel legacy MADI and can record a further 8 channels of analogue (balanced line in) for capturing the audience reaction or general ambience.
The BBR64-MADI will lock to or generate word clock, as well as locking to the received MADI data stream. The MADI input is echoed direct to the output to ease system integration. In addition to the PFL bus providing both high-resolution metering and headphone monitoring, an additional “mix” feature has been added to the headphone output.
All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the BBR64-MADI multi-track MADI recorder is the solution the professional audio industry chooses and trusts. For more information, see below to download the BLACKBOX Recorder brochure, for full information on the entire BLACKBOX range.
- Form Factor
- Rackmount
- Number of Tracks
- 64
- Maximum Simultaneous Tracks
- 64x Recording / 64x Playback
- Display
- 1x Color
- Maximum Sampling Rate
- 96 kHz / 24-Bit
- Number of Microphone Inputs
- No
- Built-In Microphone
- No
- Number of Headphone Mixes
- 1x Master
- Sample Pads
- No

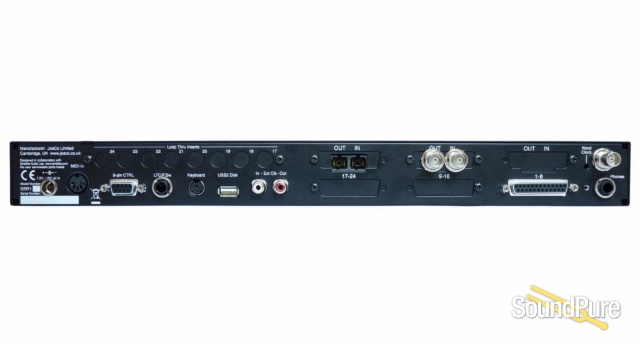

Connectivity
- Analog Audio I/O
-
- 1x DB-25 Balanced 8-Channel Input (AES 59/Tascam Pinout)
- 1x 1/4" TRS Headphone Output
- Phantom Power
- No
- Digital Audio I/O
-
- 1x BNC Coaxial MADI Input
- 1x BNC Coaxial MADI Output
- 1x SC-Plug Optical MADI Input
- 1x SC-Plug Optical MADI Output
- Host Connection
- No
- USB (Non-Host)
- 1x USB-A (USB 2.0, External Storage)
- Sync I/O
-
- 1x 1/4" TRS LTC Input
- 1x RCA Coaxial AES/S/PDIF Input
- 1x RCA Coaxial AES/S/PDIF Output
- 1x BNC Word Clock Input or Output
- MIDI I/O
- 1x DIN 5-Pin MTC/MMC/Open Loop Input
- Other I/O
-
- 1x DE-9/DB-9 Sony P2/Control
- 1x Mini-DIN 6-Pin Keyboard / PS/2 Input
- Wireless
- Bluetooth (Via Included Adapter)
Performance
- Maximum Input Level
- +22 dBu for 0 dBFS
- Maximum Output Level
- +22 dBu at 0 dBFS
- SNR
- 106 dB (A-Weighted)
- THD
-
- Inputs: 96 dB
- Outputs: 94 dB
Digital Audio
- Audio File Formats
- BWF, WAV
- Sample Rates
- 44.1 / 48 / 88.2 / 96 kHz
- Bit Depths
-
- 16 / 24-Bit (Recording)
- 24-Bit (AD/DA Conversion)
- Sync Sources
- Dante
- Frame Rates Supported
- 23.98 / 24 / 25 / 29.97 / 29.97 DF / 30
- Clocking
- MADI
Audio Storage & Playback
- Supported Media
- SDHC Card, USB Flash Drive, USB Hard Disk Drive
- Media/Memory Card Slot
- No
- File System Support
- FAT32
Compatibility
- Mobile Device Compatibility
- iPad 3rd Gen.
Power
- Power Requirements
- AC/DC Power Adapter (Included)
- DC Input Power
- 9 to 16 VDC
- AC/DC Power Adapter
- 9 to 16 VDC (Included)
- Power Consumption
- 25 W (Maximum)
Physical
- Rackmount Size
- 1 U
- Dimensions
- 16.7 x 5.9 x 1.73" / 425 x 150 x 44 mm
- Weight
- 5.3 lb / 2.4 kg
Packaging Info
- Package Weight
- 7.25 lb
- Box Dimensions (LxWxH)
- 22.6 x 15.7 x 2.8"
