JoeCo Bluebox BBWR08MP Workstation Audio Interface Recorder  From Joeco

Benefit from the absolute flexibility of BLUEBOX with the BBWR08MP, giving you 8 channels of individually switchable mic/line inputs with best-in-class preamps, 16 channels of dedicated balanced line inputs, simultaneous back up of all source recordings as an audio interface and a fully standalone multi-track field recorder.

Joeco

$4,119.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $93/mo.

Manufacturer's Description from Joeco

There are three BLUEBOX models to choose between, all delivering pristine 24bit/96kHz performance with the rugged reliability for which JoeCo is known. Newly added to the range is the BBWR24B, the most affordable BLUEBOX yet with 24 balanced line inputs, 16 Adat Lightpipe inputs with SMUXII support for higher sample rates and 24 balanced outs. Meanwhile, the BBWR24MP provides 24 channels of switchable mic/line inputs, while the BBWR08MP offers 8 channels of individually switchable mic/line inputs and 16 channels of dedicated balanced line inputs. All mic channels on both the BBWR24MP and BBWR08MP incorporate JoeCo’s renowned best-in-class mic preamps.

In a studio environment, your BLUEBOX can be used as a near-zero latency audio interface carrying up to 24 channels of 24bit/96kHz audio in both directions simultaneously over USB 2.0. And if your DAW freezes or fails, BLUEBOX keep running, utilising its onboard recording function to ensure that none of your source recordings are lost, even if the power fails. BLUEBOX also delivers the benefits of the famous BlackBox Recorder. For live work, the high-quality mic preamps built into the BBWR24MP and BBWR08MP mean either unit can be used as a stand-alone, live, multi-channel audio acquisition recorder, linking the low latency 24 channel, 24bit/96kHz workstation interface to a computer for backup recordings.

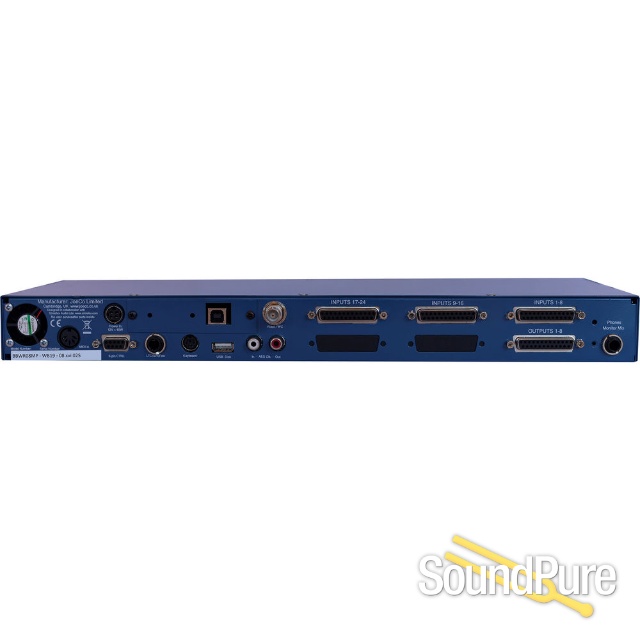

The high-quality microphone preamps, operate at up to 24bit/96kHz, and offer the user comprehensive control parameters. BLUEBOX features a range of connection options including individually switchable mic/line inputs and balanced outputs, with audio clocks locked to timecode, video, or word clock inputs. Microphones can either be connected to the unit via tails from the rear D-Sub connectors, or via an optional 2U breakout panel with XLR connectors.

Local audio is recorded direct to external USB2/3 drive in Broadcast WAV format for instant ingest into a workstation. Alongside the multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Optional support for iXML data can also be provided.

Your BLUEBOX will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoControl on the workstation itself or via JoeCoRemote for iPad. This includes the facility to set up individual mic pre channel parameters – level, mic/line, phantom power, hi-pass filter, soft limiter and phase reverse. Levels are displayed on high resolution meters.

The monitor mix can be adjusted in real time incorporating both local and workstation feeds giving the perfect mix for monitoring during recording. Expandable channel strips provide graphic faders, pan, solo, mute and other parameter controls.

The BLUEBOX compact dimensions, high-quality mic preamps and converters make it a practical, elegant solution for a range of applications. Ideal for use in the studio as an audio interface, giving unprecedented access to your workstation for external summing mixer or full mixing board with multichannel record and overdub on workstation, as well as for live engineers needing a supremely portable multi-channel recording option.

Joeco

About Manufacturer

Established in 2007, JoeCo is the creator of the award-winning BLACKBOX range of multi-track recorders and players, as well as the BLUEBOX series of Workstation Interface Recorders. Based near the beautiful British university city of Cambridge, the company is renowned for its innovative approach to design, and trusted worldwide for the reliability of its products in mission critical environments.

Specifications

General Specifications:

Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depth: 16 / 24 bit
Local Disk interface: USB2 (compatible with USB3)
Local Disk format: FAT32 – compatible with both Mac and PC
Local File format: Broadcast WAV (BWAV)
External drive: USB2/3 hard drive or fast memory stick
File type: Standard mono Broadcast WAV or multi-channel WAV
User interface: Primarily designed for use with the JoeCoControl app or JoeCoRemote iPad app, the unit can also be configured directly from the front panel



Audio i/o:

Workstation Interface: USB2.0 – up to 24 channels of 24bit 96kHz audio in both directions simultaneously
Driver compatibility: Core Audio and Windows drivers
Latency: Local foldback mix <10uS; Workstation (depends on spec of computer and plug-ins) typically 6.5mS round trip
Local Record/playback Up to 24 channels @ up to 96kHz / 24 bit
Inputs Switchable microphone / line inputs on channel by channel basis
Mic preamps Gain: 0 – +60dB continuously variable;
Soft limiter: software selectable on/off;
Hi-pass filter: -6dB @ 100Hz, 12dB/octave
Max input level: +21dBu
EIN: <-124dBu (20-22kHz)
THD: <-110dBFS (20-22kHz @ -10dBFS input)
Cross talk rejection > 80dB @ 20kHz
ZIN: >10kOhm (single ended); >2kOhm (differential)
Outputs Artist’s stereo headphone output
Engineer’s stereo headphone output
2 stereo artist feeds for feeding external headphone amps
E-E THD+N E-E: < -90 dBFS (unity gain, 20 – 22kHz, unweighted)
Frequency response: better than +/- 0.5dB, 20-40kHz @ 96kHz sampling
Monitoring Front-mounted ¼” TRS jack socket: stereo headphone mix, PFL, solo etc (Engineer);
Rear-mounted ¼” jack socket for stereo headphone mix only (Artist);
24 line level outputs



Control and Synchronisation:

Audio clock synchronisation Word clock, AES/EBU or SPDIF clock, Video reference* and SMPTE linear timecode* (all std frame rates supported)
Control JoeCoControl interface on workstation; JoecoRemote for iPad (requires JoeCoRemote hardware or JoeCo Bluetooth interface); Sony 9-pin and MIDI (MMC) for transport controls
Physical 19” rack-mounted 1U (435x44x170mm) – >3kg
Optional 19” rack-mounted 2U breakout panel (XLR)
(475mm x 88mm x 35mm) 1kg
Power 12V dc (Kycon 4-pole connector), 35W max. External universal PSU included.
