Item selected is discontinued (details below). Related products available now:

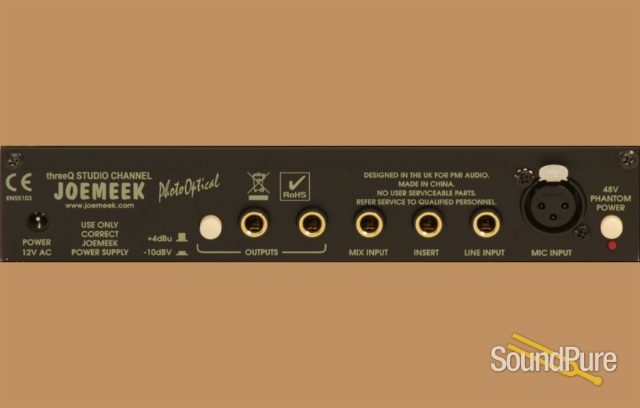

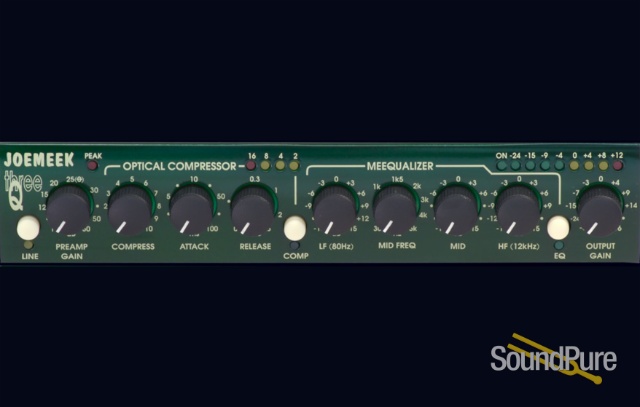

Joemeek threeQ Channel Strip  From Joemeek

A compact yet incredibly powerful and high-quality channel strip!

Joemeek

Manufacturer's Description from Joemeek

The Joemeek threeQ is the perfect link between your music and your computer. It will bring out the best qualities or your music by giving it the "gloss" of a professional recording studio, at a fraction of the cost!



Built into a compact ½ rack chassis, we used the same Burr-Brown IC's for the Mic Pre that you'll find on our more expensive studio channels. We then added an extremely musical EQ section and an optical Compressor, for that signature "Meek" sound.



With inputs to accept everything between microphone and instrument levels, the threeQ sounds much larger than it's size!

Joemeek

About Manufacturer

After 8 years of bringing great sound and creative ideas to the market, Joemeek will go through a major update to its entire product line. As the market gets more and more crowded, Joemeek will streamline its products, improve the build quality and feature sets. The New Joemeek line continue to maintain that Joemeek sound, but offer a more concise product line to avoid confusion with its own models. A new all aluminum front panel anodized in the traditional Joemeek Green will make all of the new products look better as well. More information will be posted as it is made available.

Specifications

Input impedances: Mic: 1.2kohm; Line: 20kohm
Pre-amp overall gain: 0dB to 60dB
Common mode rejection: 70dB
Equivalent input noise: -128.5dBu (unweighted)
Distortion: 0.001% (below Compressor threshold)
Frequency response: 10Hz to 70kHz (-3dB)
Maximum input before clipping: Mic: +19.5dBu; Line: +44.5dBu
Headroom before clipping: +19.5dBu
Compressor threshold: -6dBu to +20dBu (variable)
Compressor ratio: 5:1 (typical)
Compressor attack time: 1 msec to 100 msec (adaptive)
Compressor release time: 0.1 sec to 3 sec (adaptive)
Nominal output levels: +4dBu/-10dBv
Output impedance: 75ohm
Output Level switch: 12dB attenuation
Noise Floor: -85dBu (typical, with ~40dB mic gain)
VU Meter: 8 segment bargraph
Power supply: 12V ac mains adaptor
Power consumption: 12W
Mechanical: 220W x 44H x 180D (overall)
Weight: 1 kilo
EQ Boost and Cut: +/-15dB (zero phase-shift bell response)
LF Frequency : 80Hz fixed
MID Frequency : 300Hz to 5kHz variable
HF Frequency : 12kHz fixed
