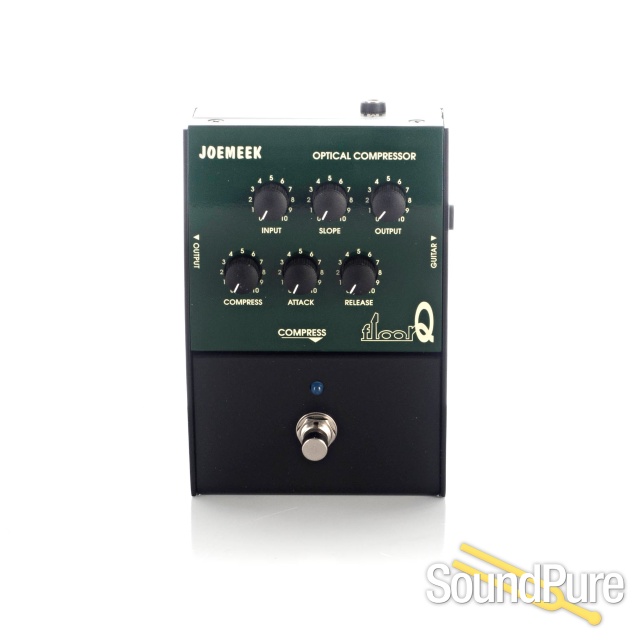

The floorQ is basically a Joemeek Optical Compressor in a pedal. "We realized that a lot of guitarists and bass players were buying our studio gear - such as the twinQ - just to put their guitars through" says PMI President Alan Hyatt. "They loved what the compressor did for their sound but it wasn't very practical from a live performance point of view. Actually the same circuit is in our small threeQ box but it still ain't a pedal, so we decided to give them one!" The floorQ also boasts a high impedance JFET input, Class-A preamplifier with an Input Level control, so even with the Compressor switched out, the pedal makes an excellent front end and level matcher for all types of guitar amps.
- Model
- floorQ
- Input Impedance
- 6.8 Mohm
- Pre-amp Gain
- 0dB to +20dB (variable)
- Equivalent Input Noise
- -94 dBu (unweighted)
- Distortion
- 0.001% (Below Compressor Threshold)
- Frequency Response
- 15Hz to 20kHz (-3dB)
- Maximum Input Before Clipping
- +19.5dBu
- Headroom Before Clipping
- +19.5dBu
- Compression Threshold
- -6dBu to +22dBu (variable)
- Compression Ratio (slope)
- 1:1 to 10:1 (variable)
- Compressor Attack Time
- 1 msec to 100 msec (adaptive)
- Compressor Release Time
- 0.1 sec to 3 sec (adaptive)
- Output Gain
- 0dB to +20dB (variable)
- Nominal Output Level
- 0dBu
- Output Impedance
- 100ohm
- Noise Floor
- -94dBu (typical, with 0dB Input and 0dB Output gain)
- Power Supply

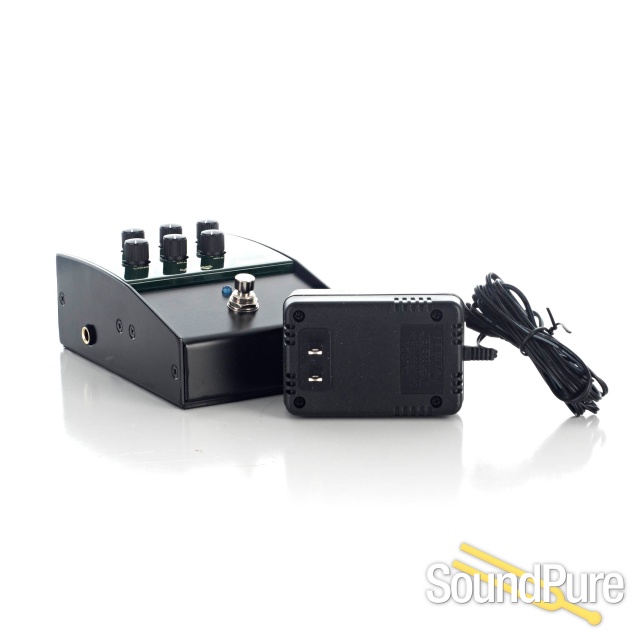

- 9V to 18V, ac or dc (12V ac adaptor supplied)
- Power Consumption
- 4W
- Dimensions
- 106mm x 65mm x 145mm
- Weight
- 1 kilo
