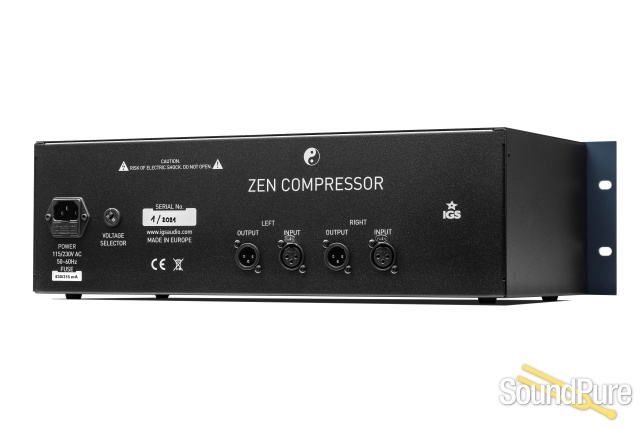

IGS Audio ZEN Dual Channel Compressor From IGS
If you want your music sounds like yin n' yang, you need a ZEN.
$3,195.00
"Experience the Difference"
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $72/mo.
Manufacturer's Description from IGS
The ZEN is unique. The construction is based on the legendary compressors used in Abbey Road Studios. It's the musical canon of art used by The Beatles. The ZEN Compressor audio circuit is based on 14 bi-polar transistors in each channel. The compression is achieved by 8 hand-matched Zener diodes biased by a perfect feedback circuit.
That's all you need to compress your mix.
Functions:
Input
ELMA switch, 24-stepped control
Output
ELMA switch, 24-stepped control
Attack
5 - 100ms or 20 - 500ms
Attenuation Switch
Attack and Release times four, times one
Mode Switch
Compressor / Limiter mode
Release
10 - 2000ms or 80 - 8000ms
HPF
Sidechain High Pass Filter:
Off, 60, 90, 120, 240Hz
AMP - Sidechain circuit bypassed the compressor works like 36dB amplifier
*also known as THD mode*
In/Bypass
Hardwire bypass, separate for Left and Right channel
About Manufacturer
IGS Audio is now one the most desired studio equipment brands in Poland and it is continuously expanding internationally. The original IGS Audio products qualify as pretendants to no.1. Clones of other brands produced by Igs Audio are accurate and excellent.
IGS Audio is all about happiness in success. IGS Audio offers 3 years warranty for all products.
IGS Studio has been operational since 1997. The IGS Audio brand was created in 2003.
Specifications
BASIC FEATURES
Compression type - Zener diodes
Stereo Link - Yes
HPF - Yes, 60, 90, 120, 240Hz
Hard wire bypass - Yes
All stepped manipulators - Yes
INPUT & OUTPUT
Input Impedance (balanced) - 10k Ohm
Output Impedance (balanced) - 75 Ohm
Audio transformers - Yes, IGS Custom, on inputs and outputs
LEVELS
Operating Level - +4 dBu
Dynamic Range - >100dB
Noise Level - -99dBu
Max. gain - -36dB
Max Gain Reduction - -35dB
TIME CONSTANTS
Attack:8 - 100 ms, x4 switchable
RatioVariable, depends on the input settings, plus Limiter
Release:10 - 2000 ms, x4 switchable
BANDWIDTH
Frequency response20 Hz - 20 kHz, +/- 0.1dB
DISTORTION (@ 20 HZ - 20 KHZ)
Signal to Noise Ratio>90dB
THD+N>86dB
IMD (SMPTE)>90dB
Crosstalk80dB @ 1kHz
FRONT PANEL
VU Meters- Yes, GR in dB's, left & right,
POWER
VoltageSelectable 115/230 VAC
Power consumption<30 VAC
Power supplyLinear, internal
PACKING BOX
Dimensions19" unit
Shipping weight9 kg / 5 lbs
OTHERS
Used forMastering, tracking
