From Millennia Media
Unrestricted Capacity, Uncompromised Clarity
-

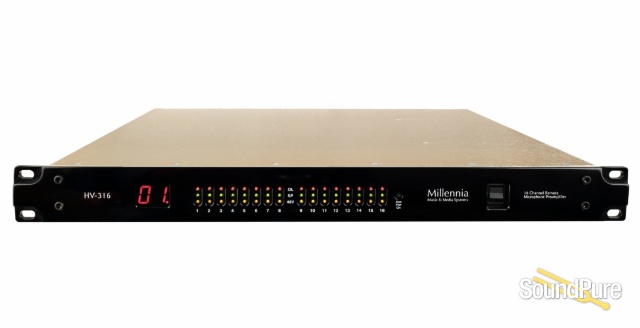

16 channels of pristine Millennia HV-3 microphone preamplifiers in a road-hardened 1U chassis (8 channel option)
-
Effortless, vividly realistic, dynamically uniform HV-3 musical performance
-
Dante network output standard -- analog output option.
-
Both 12VDC (battery) and 80-264VAC worldwide powering
-
Redundant power supply for fail-safe, glitch-free operation
-
Paralleled next-generation AKM A-to-D conversion assuring >120dB dynamic range
-
Designed for ultra-high-temperature continuous operation (65C / 150F)
-
RF “pi filter” shielding provided on analog and digital feeds, destroys mobile interference
-
Control up to 256 channels at once via conventional Ethernet.
-
+34dBu input headroom for use in the most extreme audio environments
-
Matched discrete-octet transistor gain topology, the classic Millennia HV-3 double-balanced circuit
-
Ælogic Mac & Windows third-generation software offers total control for both HV-316 and HV-3R on the same network
-
High-definition meters, grouping, linking, scene management, temperature monitoring
-
Entirely balanced audio path with precision components maintains signal integrity: THD under 10 PPM (< .001%)
-
Laser-trimmed FET-based output stage (analog output option) drives 1000-foot (300m) cable runs with ease
-
All channels matched to 0.08 dB
-
Advanced power supply rated for 650,000 hours MTBF operation
-
Aluminum 16-gauge rack chassis, ultra-lightweight, just 10 pounds
-
Billet aluminum laser etched front-panel
-
Lovingly hand-built and quality-assured in Northern California USA
Options:
-
Analog Output Option $863 (8 ch) $1,726 (16 ch) US Street Price
-
HV-316-8 Short-loaded 8 ch version can be upgraded to 16 ch at the factory
- Minimum Gain
- 1 dB
- Maximum Gain (1 dB per step)
- 64 dB
- Attenuator Pad
- -20 dB
- Frequency Response (analog output option) (+0 / -3 dB)
- sub 8 Hz to beyond 200 kHz (analog)
- Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common)
- -130 dB EIN
- Total Harmonic Distortion + Noise (35 dB Gain)
- < .005%, (<.001% Typ.)
Intermodulation Distortion (50 Hz & 7 kHz), 35 dB Gain, 0 dBFS: < .0009%
- Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, 0 dBFS
- < 2 degrees deviation
Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
- Slew Rate (35 dB Gain)
- > 25 Volts per microsecond
- Maximum Input Level (20 Hz - 40 kHz)
- +34 dBu (pad in)
- Maximum Output Level (20 Hz - 40 kHz)
- +22 dBu (analog output option)
- Phantom Input Impedance (1 kHz)
- 6,750 ohms
- Output Impedance
- 24.3 Ohms (analog output option)
- Phantom Powering
- +48 V dc, +/- 2 V dc, 15 ma per channel in reserve
- Power Consumption
- 100 watts maximum; AC: Universal 80-264V, 47-63 Hz; DC: 12V
- Dimensions/Shipping Weight
- 19" W x 1.75" H x 16" D, 10 lbs. (16ch), 9 lbs (8ch)
DANTE
- Physical Layer
- Ethernet
- Connectors
- Dual RJ-45 (Primary / Secondary)
- Cable Quality
- CAT-5e or better
- Transmission Speed
- 1Gbps
- Supported Sample Rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Minimum Dante Latency
- 250 µS
- Supported Modes
- Redundant / Switched
- AES67 Support
- Planned (Dante embedded)
- Certifications
- FCC CFR 47 Part 15 Subpart B, Class A; ICES-03 Issue 6 (Canada); ANSI C63.4-2014; EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013
- Compliance
- RoHS 2011/65/EU (and delegated directive (EU) 2015/863); WEEE 2012/19/EU + REACH
- Environmental
- -10o to +65oC / +15o to +150oF (fans enabled); -10o to +45oC / +15o to +115oF (fans disabled); 10% to 80% RH; Maximum Altitude: 5,000 meters
