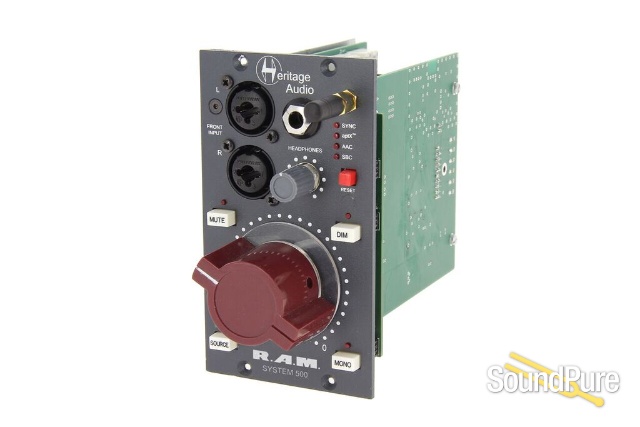

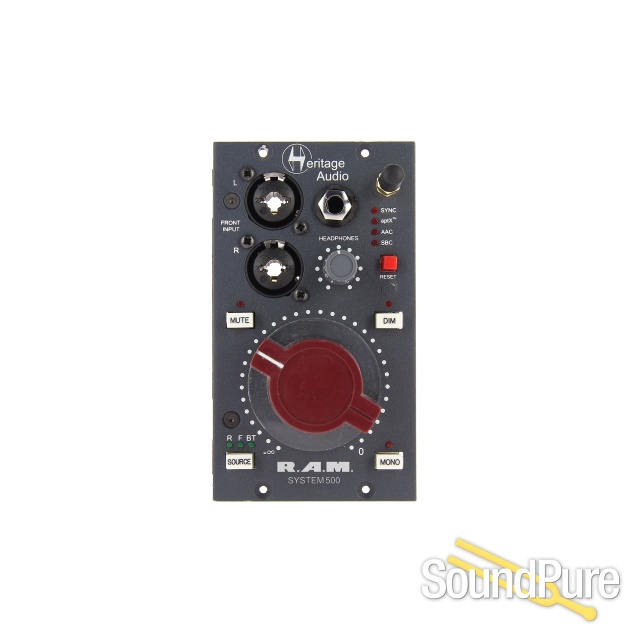

Heritage Audio RAM System 500 Monitor Controller From Heritage

Turn your 500-series rack into your monitor controller with the RAM System 500 from Heritage Audio!

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from Heritage

R.A.M. SYSTEMS OVERVIEW

Standing for Reference Audio Monitoring systems, this whole new line is the result of more than 2 years of intensive, full time R&D at the Heritage Audio Headquarters.

With audiophile grade sound quality in mind and sets of features custom tailored for studios of all kinds, sizes and budgets, the R.A.M. systems share the same state of the art technology and core analog audio path, from the smallest brother, the RAM System 500, to the full featured, 5.1 ready, RAM System 5000.

All 3 products employ relay switching all the way through as their working principle, including the 64 step relay ladder attenuator system employed for the master level, only previously found in the mega expensive units.

Also present is the acclaimed HA Bluetooth connectivity for mobile devices. A classic look, with massive red knob for easily dialing of the 64 steps of attenuation, rounds the pack.

The RAM Systems finally makes mastering grade monitoring affordable.

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

RAM System 500 features:

2-slot 500-Series module.
3 stereo inputs, including one front-pannel pair of Neutrik Combo connectors and a Bluetooth input (AAC, APTX and SBC)
1 stereo speaker output
1 high current headphone output, using the same exact circuit as in the largest RAM Systems
20 dB DIM, MUTE and MONO functions.
64 step, relay ladder attenuator based, master volume control in 1dB steps.
All gold plated relay based switching of every function, including inputs and outputs.
Burr Brown, state of the art analog circuitry, used throughout for the lowest noise and distortion, and highest transparency technology can deliver nowadays.
Ultra high current, high level, audiophile quality headphone amplifiers, able to drive any headphones -high or low impedance- to deafening levels without any coloration or noise.

64 step, relay ladder attenuator based, master volume control in 1dB steps.

All gold plated relay based switching of every function, including i

nputs and outputs.

Burr Brown, state of the art analog circuitry, used throughout for the lowe

st noise and

distortion, and highest transparency technology can deliver nowadays.

Ultra high current, high level, audiophile quality headphone ampli

fiers, able to drive

any headphones

–

high or low impedance- to deafening levels without any coloration

or noise.
