Heil HDK-7 Microphone  From Heil

Drum Mic Kit

Heil Sound

$1,399.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $31/mo.

Manufacturer's Description from Heil

The Heil HDK drum kit series is a culmination of over 2 years spent on the road with leading drummers. They gave us their ideas, their dreams and their needs which we turned into reality. Every component of a drum kit needs special attention when it comes to reproducing the sound accurately. There are many drum microphones out there but the artists that helped design the Heil drum microphones wanted more accuracy, not just level. Each one of them was tired of little plastic toys that did not reproduce well. They all agreed, after hearing and using the new technologies of the Heil drum microphones, that they had never heard this level of quality reproduction.

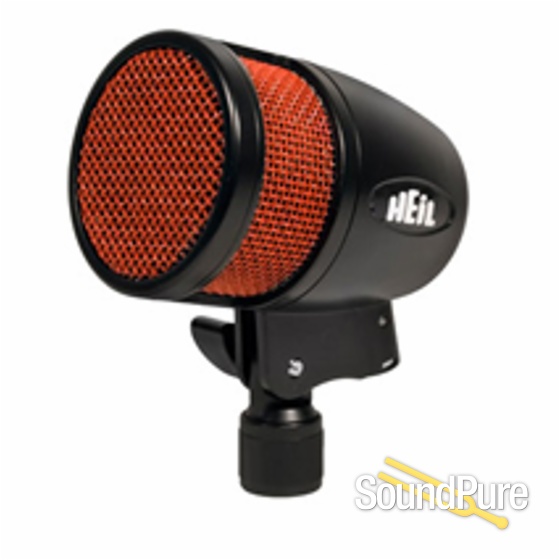

The PR 48 kick drum microphone starts with our 1.5" large diaphragm dynamic element sealed in a vulcanized shock mount and fed with a specially designed low pass filter that creates a +10 dB rise from 50 to 100 Hz. - right where the kick drum resonates. We built a + 4dB rise from 3.5 to 5 K to pick up the beater and drop off drastically after 8.5 K to eliminate any unwanted internal sounds. The total frequency response is 30Hz - 8.5kHz. Its rear rejection is -40dB @ 180° off axis. It can handle +148dB SPL.

The PR 48 metal housing was designed with a slanted entrance for the XLR at the suggestion of several drum techs so the cable assembly is easier to connect. The microphone provides a 600 ohm balanced output and is finished in flat black emron with red grills.

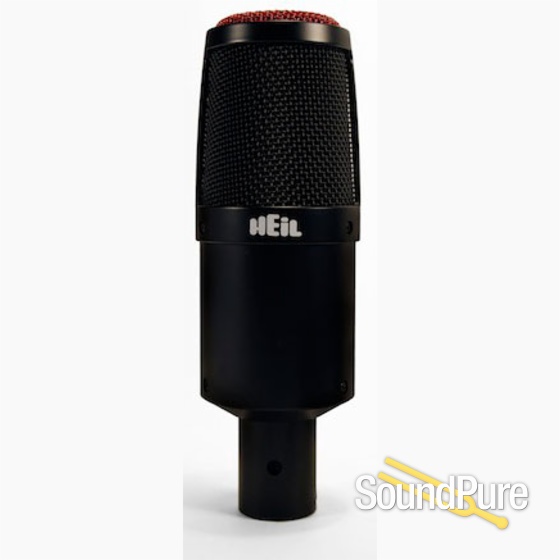

The Heil PR 30 represents completely new dynamic microphone technology designed for a wide range of professional applications such as sophisticated recording, live sound, and commercial broadcast. Its smooth, wide frequency range sounds like a ribbon but can withstand large amounts of SPL. Outperforming the tired, 30 year old technology of the industry, the large diameter of the PR 30's dynamic element produces an outstanding upper mid range that makes the PR 30 the absolute best guitar microphone in the industry today, while still an excellent choice for reproducing the human voice.

Since 1982, Heil Sound has been the leading manufacturer of communications microphones and has a paramount understanding of phasing. When properly applied, this knowledge creates outstanding cardioid patterns with unbelievable rear rejection that removes unwanted sounds that try to enter from the off axis rear. The pattern control of the Heil PR 30 is outstanding. This exceptional performance is achieved by using the ideal combination of materials for the large low mass diaphragm and a special mixture of neodymium, iron, and boron that gives the PR 30 the strongest magnet structure available. These features allow the microphone to achieve magnificent dynamic range. A unique screen system using two different diameter mesh screens and an internal breath blast filter allow the user to talk closely to the microphone with little worry of pops or excessive sibilance. The large diameter dynamic element is mounted in a unique shock mount atop a non-resonant fixture, decoupling the element from the massive steel body. This body and the internal hum bucking coil removes any worry of using the PR 30 near monitor screens or noisy lighting fixtures and controls. The new technology of the Heil PR 30 has redefined the dynamic microphone with superior wide frequency response, the lowest presence of noise in the industry, flawless design, and elite quality expected by an innovator and leader in the field. Your ribbon microphones will now be jealous.

The PR 28 is the premier drum microphone designed for toms, snares, bongo and many other applications. The tight cardioid pattern with a wide frequency response and stellar rear rejection makes the PR 28 suitable for many other applications. A unique dual suspension system between the actual dynamic element and the grill and body reduces unwanted vibrations. The PR 28 has a frequency response of 55Hz - 18kHz (3dB rise @3500Hz). Its rear rejection is -35dB @ 180° off axis. It can handle +148dB SPL.

The Heil PR 22 represents completely new dynamic microphone technology designed for a wide range of professional applications such as live sound, commercial broadcast, and sophisticated recording. Never before has such quality been built into a dynamic vocal microphone. With its wide frequency range, outstandingly low handling noise and ability to handle +140dB SPL, the PR 22 outperforms the tired, 30+ year old industry technology.

The end result is a microphone that can answer the call for any application. For example, the gorgeous articulation in the upper mid- range makes the PR 22 the best live vocal microphone, while its outstanding frequency response and superb dynamic range suit it perfectly for use with a snare drum or guitar instrumentation.

Since 1982, Heil Sound has been the leading manufacturer of communications microphones and has a paramount understanding of phase coherence. When properly applied, this knowledge creates an outstanding linear cardioid pattern with up to 40 dB of rear rejection that removes unwanted sounds that try to enter from the off- axis rear. The pattern of the Heil PR 22 is outstanding. No hot spot or unwanted proximity effect. This exceptional performance is achieved by using the ideal combination of materials for the large 1 -1/8' diameter low mass diaphragm and a special mixture of neodymium, iron, and boron that gives the PR 22 the strongest magnet structure available.

Handling noise occurs from 50 to 100Hz The popular ball microphones band stop their low end response at 125Hz to eliminate handling noise. Of course, they throw away an octave and a half of YOUR voice but you DO have low handling noise! Using the wide 50 Hz. to 18kHz response of the popular PR 20 diaphragm it was necessary for Heil to develop the ISO BAND tm, (patent pending) a special suspension system to eliminate low frequency handling noise. This new technology has brought an exciting new dimension to this amazing dynamic vocal microphone. This new Heil microphone is usable with extreme high sound pressure levels to nearly 150 dB making it perfect for live vocal and instrument applications as well as a superb microphone for serious recording studios.

Heil Sound

About Manufacturer

The Heil PRO division brings some new and exciting Heil innovations to the commercial broadcast and recording studio world using many of the techniques Bob learned from voicing and tuning that monster Wurlitzer theater organ 50 years ago! Heil Sound will continue to produce the unique and innovative products of this remarkable man's imagination for years to come. "It all starts at the microphone !"

Specifications

Kit Includes:

  • 2- PR 22
  • 2- PR 28
  • 2- HH-1 (Patent Pending) mounts
  • 2- PR 30B
  • 1- PR 48
  • 2- HM mic clips
  • Black Hardshell Carrying Case

PR 30

  • Largest dynamic element available
  • Smooth response sounding like a ribbon
  • Wide frequency response
  • Articulate natural mid range
  • Perfect for broadcast studios
  • Absolute best guitar amp microphone
  • Properly positioned hum bucking coil and heavy steal case insure maximum shielding
  • Assembled and tested in Illinois

PR 22

  • Wide frequency range
  • Outstanding low handling noise
  • Very linear cardioid pattern
  • Usable in extreme high sound pressure levels

Downloads

Action

Name

Description

HDK-7 Product Sheet (Includes Frequency Response and Polar Pattern Graphs)
