From HEDD

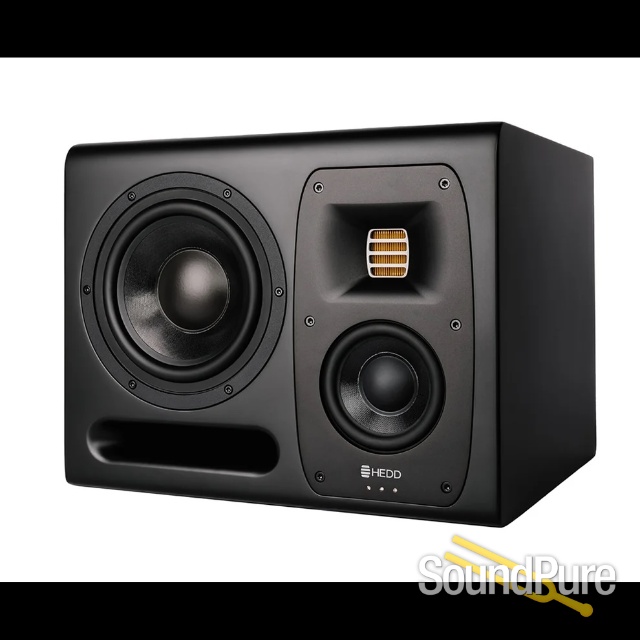

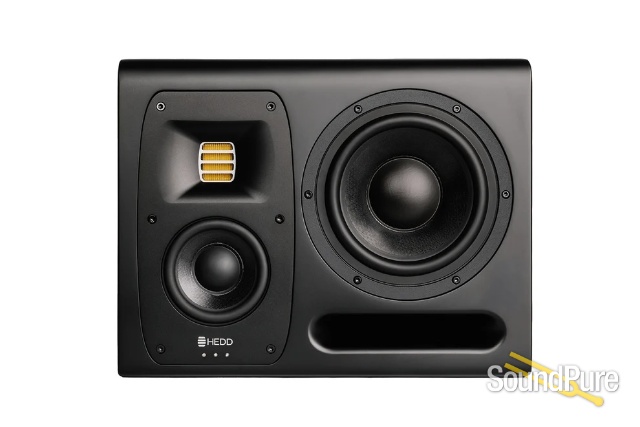

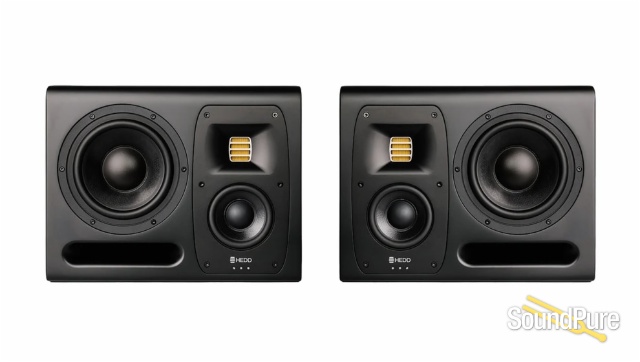

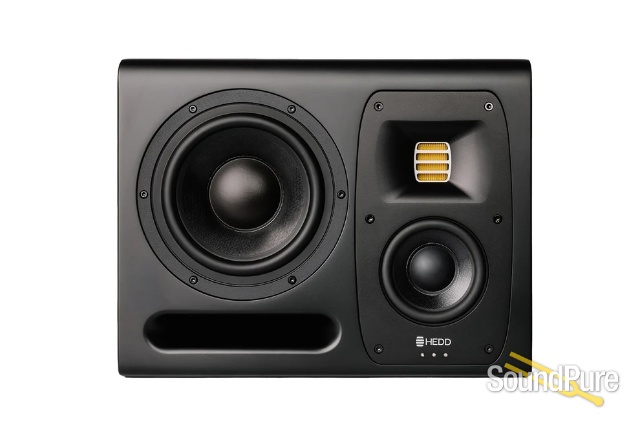

The TYPE 20 A-CORE expands the A-CORE range into a larger three-way format ideal for professional studios, mastering rooms, and discerning listeners.
Built with the same premium components as our MK2 monitors and Tower Mains system, it provides extended headroom, greater depth, and outstanding clarity across the full frequency range.
Every element is engineered for long-term accuracy, from the handcrafted AMT tweeter to the custom honeycomb composite woofers and amplification. With no DSP or software reliance, the TYPE 20 A-CORE's low latency analog performance delivers a natural signal path that translates truthfully in any environment.
Features:
- 3-way active near- to mid-field speaker
- Pure analog signal path – no converters, low latency, no software reliance
- 7" and 4" custom honeycomb woofers
- 3 x 300 W ICEpower Class D amplifiers
- High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies
- Analog filter board for natural, phase-coherent sound reproduction
- High and Low shelving EQ (±6 dB, continuous) to adjust for your room and tastes
- RCA (unbalanced), XLR & TRS (balanced) inputs
- Each unit is tested before shipping
- Mounting ready for Atmos installations
- Designed and assembled in Berlin with premium components
- 5 year warranty after registration
- Drivers
- 3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
- Power
- 3x300 W ICEpower amplification (85-264 V)
- Frequency Range
- 32 Hz - 40 kHz
- Crossovers
- 250 Hz / 3.200 Hz
- Maximum SPL
- SPL 120 dB SPL (sound pressure level) per pair at 1m

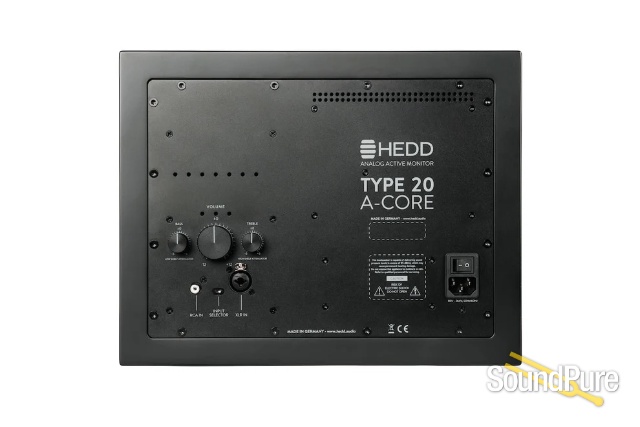

- Inputs
- XLR, TRS (balanced), RCA (unbalanced)
- Design
- Heavy duty MDF cabinet, black satin finish, front panel LED indicators
- Dimensions
- 280 x 358 x 338 mm
- Weight
- 15.4 kg per unit
