From HEDD

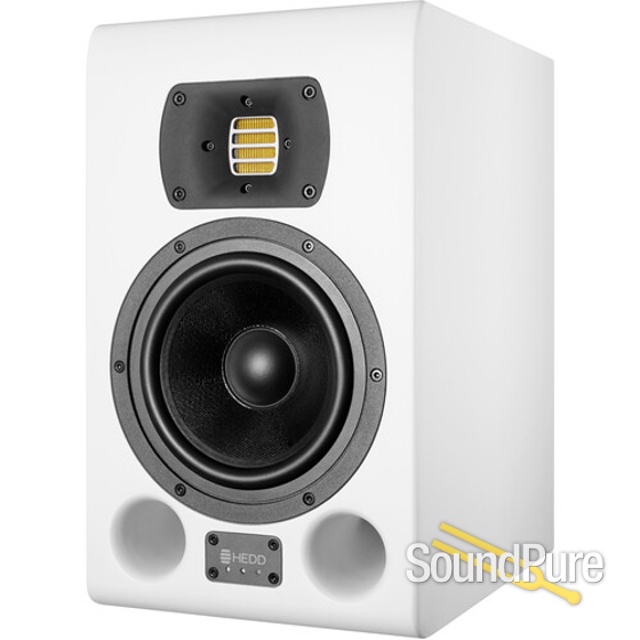

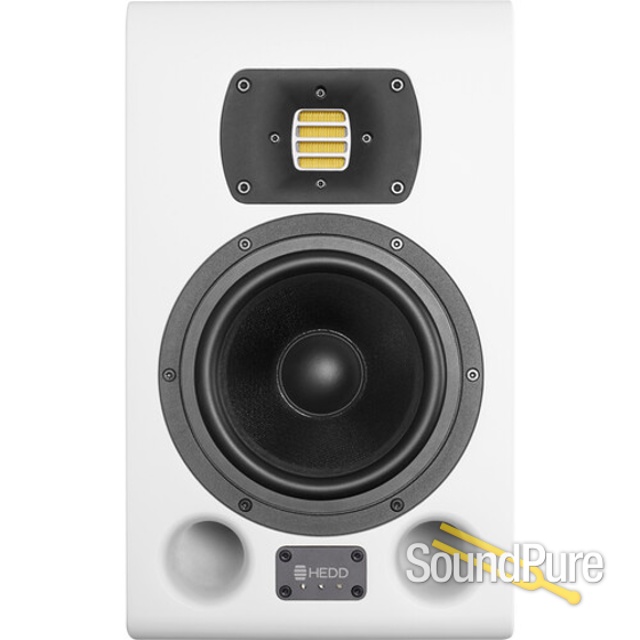

Our Type 07 studio monitor could be described as a classic nearfield monitor speaker, although that would not nearly do justice to its versatility and powerful sound. On first glance, this model’s standard size and classic setup with a 7” woofer and a HEDD Air Motion Transformer do not leave much room for additional technological advances. Yet the careful adjustment of its various components, particularly the way in which casing, amplifier, and diaphragm interconnect, creates a degree of sonic stability, strength, spatiality, and transparency that amazed us from the very first stages of this model’s development on. With its 2×100 Watt amps and its extremely well balanced frequency response, the Type 07 monitor sounds much bigger and more mature than its moderate size and sleek design make it appear. It is precisely for this reason that there is hardly a field of audio production, which the Type 07 is not ideally suited for: its clever design makes it an especially good player in broadcasting contexts as well as in recording and mix-down studios.



Our Type 07 studio monitor comes, like all models of our Series ONE, with XLR and RCA connections. In addition, it also features an empty slot that allows for a wider range of digital functionality. At the moment, we offer HEDD Bridge modules that can handle Dante (Audio-over-IP) transport.



HEDD LINEARISER®INTEGRATION

Implemented in the MK2 and subwoofer models is the HEDD Lineariser®, a phase linearisation tool that leads to perfect impulse responses andan audibly improved spatial reproduction.



»CoP« TECHNOLOGY (Closed or Ported)

Ever since there have been loudspeakers, there have been 2 different design approaches toget a good bass response: closed box design, sometimes called infinite baffle, and bass reflexspeakers, or ported designs. By offering removable plugs for the bass ports, combined withadvanced FIR (Finite Impulse Response filtering), we now give our users the choice betweenthese two worlds: A pin-point transient response / optimum accuracy (closed cabinetapproach) or the advantages of a dynamic and low-reaching bass-ported design withincreased SPL.



 THE FIRST LINEAR SUBWOOFER / SATELLITE SYSTEM

(GDC for Group Delay Compensation)

We are introducing a completely phase linear Sat-Sub system, a real first. These are the first Satellite Sub systems that are completely “...right in time” by applying switchable group delay at the satellite output. The potential listener distances between subwoofers and satellites can be compensated in a ± 2 m range, together with HEDD MK2 monitors a Linear Phase satellite system can be realized.





Woofer (honeycomb diaphram):    7" (1.5" voice coil)

Tweeter:    HEDD AMT

Crossover frequencies (48 dB/oct filters):    2.3 kHz

Input 1: analog stereo (2 ch) / Impedance:    XLR / 22 kΩ

Input 2: AES "in":    XLR

Output: AES "through":    XLR

Volume:    ±12dB

Input sensitivity (A/D modulation):    -10/-4/0/+4 dB

HEDD Lineariser®, disengageable, delay:    10 ms

Shelve filters high/low (.5 dB steps):    ± 4 dB

LF range (-3dB): normal/extended/satellite:    38/30/80 Hz

Desk Filter: Small/Medium /Large    180 Hz (-1 /-2/-4dB)

AD/DA Conversion:    96kHz / 24-bit

Frequency response (-3dB):    38 - 40,000 Hz

Max. SPL (sound pressure level) per pair:    116 dB SPL

Power Amplifier /Universal Mains 110-240V:    2 x 100 w/ ICE power

Cabinet with satin lacquer finish:    black or white

Dimensions (H x W x D):    370 x 220 x 300 mm

Weight:    9.9 kg

Warranty:    2 years

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

Try Before You Buy: 48-hour audition. Program details →

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$2,598
