Grace Design Space Bar SB-66  From Grace

Precision microphone positioning made simple, reliable and repeatable.

Grace Design

$435.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $38/mo.

Want a lower price?
Call Sound Pure toll free 888-528-9703, or email sales@soundpure.com, for LOWEST PRICE in USA!

Manufacturer's Description from Grace

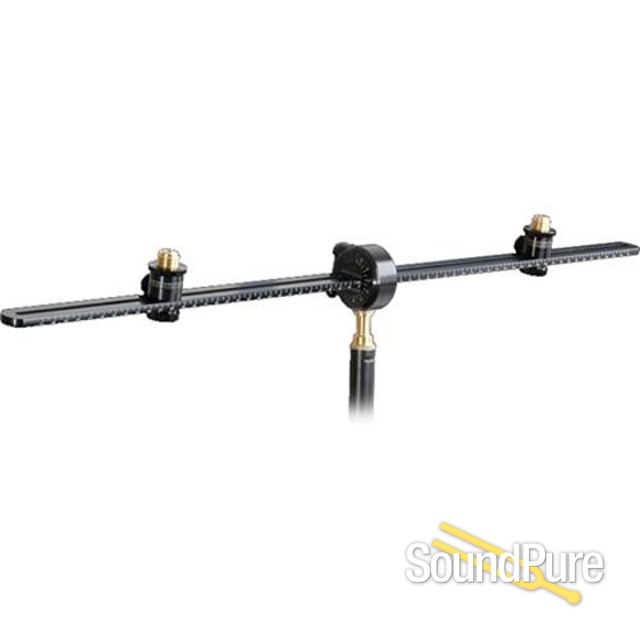

The Spacebar microphone positioner allows for precise and repeatable setting of microphone capsule spacing, angle of incidence, and rotation around the x axis. With precision scales for angle and distance engraved on the Spacebar components, it becomes easy to make perfectly measured and repeatable stereo microphone setups.

As well as being able to precisely set microphones in standard stereo configurations (i.e. XY, ORTF, NOS, and AB 50cm), the Spacebar allows for exact settings through the entire continuum of angle and spacing. This allows the user to adjust the stereo microphone array and tailor the pickup field to suit virtually any recording environment.

We highly recommend The Stereophonic Zoom by Michael Williams, a technical paper that provides detailed information on the relationship between angle of incidence, capsule spacing, and the effective angle of the recorded sound field. It is a very useful reference that can greatly increase the flexibility of your stereo microphone techniques.

The Spacebar system is precision fabricated from machined aircraft aluminum, brass, and stainless steel. Each system consists of a center stand clamp, horizontal bar, and microphone holders. The SB-30 and SB-66 are both supplied with two microphone holder assemblies and an additional tall microphone holder. The taller microphone holder body can be used to raise one microphone to avoid interference if the mic spacing requires that the microphone bodies overlap.

Grace Design

About Manufacturer

Audio engineer/designer Michael Grace originally began building single order custom audio products for a small, devout following of recording engineers and artists is 1990. Before long, the word had spread about Michael's custom microphone preamplifier designs, which were said to outperform anything else that was commercially available. Based on an increasing demand for his mic preamp design, in 1994 Grace Design was founded and began production of the original 801 mic preamp. Not only did the 801 provide a new level of audio performance and functionality, it helped to establish outboard microphone preamplifiers and direct-to-tape recording as a new standard in professional audio production. Over the years, Grace Design has maintained a steady, methodical pace to developing new products and technologies. Our product line has evolved into a definitive collection of microphone preamplifier configurations and other unique professional audio products. While the professional audio industry is inundated with products seemingly designed for obsolescence, we pride ourselves on providing audio professionals with the finest tools imaginable. Located in Boulder, Colorado, Grace Design continues its mission into the new millennium. As our company grows, we continually strive to improve our production methods to make sure theya re exact, efficient and environmentally sound. Their employees are treated like family and they strive to improve our production mehods to make sure they are exact, efficient and environmentally sound. Our employees are treated like our family and we strive to maintain our business relationships as friendships. And above all, we remain driven by the original passion that founded the company- the love of music.
