Grace Design Model m906 5.1 Monitoring System - Used From Grace
5.1 Monitoring System/ Converter with remote. In Used, Excellent condition
$1,800.00
No Sales Tax in 45 States.
Learn More.
"Experience the Difference"
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
In Stock!
Ships immediately after order processed!
Rating: 4.8
Payments as low as $40/mo.
Want a lower price?
Get Discount
Check your email inbox now!
Our best price is too low to print,
but we'll email it to you immediately!
How to get a lower price, instantly!
Why do we do this?
Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.
Manufacturer's Description from Grace
-Multiple 5.1 and stereo analog inputs
-24bit/192kHz digital 5.1 and stereo inputs- AES3, S/PDIF, ADAT and TOSLINK
-s-Locktm phase lock loop word clock regeneration for ultra-low jitter and rock solid digital stability
-Precision main and headphone level controls with a 100dB range in 0.5 dB steps

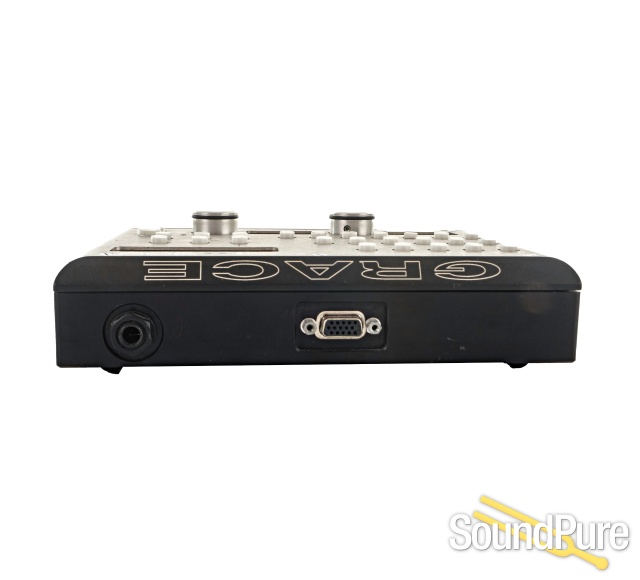

-All controls built into an elegant, convenient desktop remote control unit

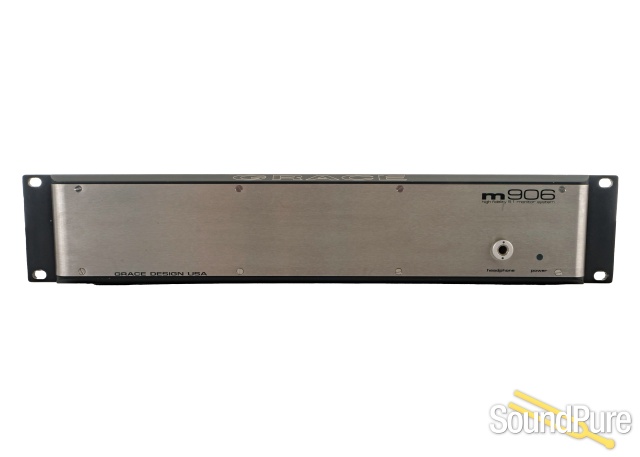

-All I/O and audio are routed in a 2U rack mount mainframe with an external 1U 1/2 rack power supply
-Multiple speaker set selection- two surround sets, up to 3 stereo sets
-High current audiophile headphone amplifier built in- one output jack on remote control unit and one on the mainframe unit
-Complete system level calibration (inputs, outputs, inter-channel balance, dim) and individual channel solo/mute;
-Balanced talkback microphone input and activation switch with additional external foot switch control jackp
-Fixed level 5.1 DAC output for direct digital transfers;
About Manufacturer
Audio engineer/designer Michael Grace originally began building single order custom audio products for a small, devout following of recording engineers and artists is 1990. Before long, the word had spread about Michael's custom microphone preamplifier designs, which were said to outperform anything else that was commercially available. Based on an increasing demand for his mic preamp design, in 1994 Grace Design was founded and began production of the original 801 mic preamp. Not only did the 801 provide a new level of audio performance and functionality, it helped to establish outboard microphone preamplifiers and direct-to-tape recording as a new standard in professional audio production. Over the years, Grace Design has maintained a steady, methodical pace to developing new products and technologies. Our product line has evolved into a definitive collection of microphone preamplifier configurations and other unique professional audio products. While the professional audio industry is inundated with products seemingly designed for obsolescence, we pride ourselves on providing audio professionals with the finest tools imaginable. Located in Boulder, Colorado, Grace Design continues its mission into the new millennium. As our company grows, we continually strive to improve our production methods to make sure theya re exact, efficient and environmentally sound. Their employees are treated like family and they strive to improve our production mehods to make sure they are exact, efficient and environmentally sound. Our employees are treated like our family and we strive to maintain our business relationships as friendships. And above all, we remain driven by the original passion that founded the company- the love of music.
Specifications
- Input Impedance:
- 30 kOhms, Balanced
- 50 kOhms, Unbalanced
- Output Impedances:
- 300 Ohms, Balanced (Source Impedance)
- 1 kOhm, Balanced (Min. Load Impedance)
- 25 Ohms, Headphone Out (Min. Load Impedance)
- Sensitivity (0 VU): Not Specified by Manufacturer
- Maximum Input Level:
- +30dBu, Balanced
- +20dBu, Unbalanced
- Maximum Output Level:
- +15dBu (Low Gain Mode, Balanced)
- +27dBu (High Gain Mode, Balanced)
- +20dBu (Headphone Out, 25 ohm Load, Momentary)
- +13dBu (Headphone Out, 25 ohm Load, Continuous)
- Noise:
- -86dBu, High Gain Mode (20-22kHz Bandwidth, -20dB Gain)
- -96dBu, Low Gain Mode (20-22kHz Bandwidth, -20dB Gain)
- THD + N:
- Less than 0.001% (+20dBu Out)
- Less than 0.003% (+10dBu Out)
- Less than 0.009% (0dBu Out)
- Crosstalk:
- Less than 100dB @ 100Hz
- Less than 100dB @ 1kHz
- Less than 85dB @ 20kHz
- Input Connections:
- 1 x BNC Word Clock/Super Clock In
- 1 x ADAT Input
- 1 x AES3 Digital Stereo XLR Female Input
- 1 x S/PDIF Stereo RCA Input
- 1 x TOSLink Optical Stereo Input
- 1 x AES3 Multi-Channel DB25 Female Connector (Tascam Pinout)
- 1 x XLR Talkback Mic Input with 48V Phantom Power
- 6 x Analog RCA Inputs
- 1 x DB15 Female Remote Connector
- 1 x 1/4" TRS Talkback Switch Jack
- 2 x XLR "Cue In" Connectors
- 4 x Balanced Analog XLR Inputs
- 1 x DB25 Female Connector for Balanced 5.1 Analog Input
- 1 x 6-Pin XLR Male DC Input
- Output Connectors:
- 1 x 5.1 DAC DB25 Female Output
- 2 x 5.1 CR Out DB25 Female Connectors
- 1 x Word Clock/Super Clock Thru BNC
- 4 x Stereo CR Analog XLR Outputs
- 2 x Cue Out XLR Connectors
- 1 x Front-Panel 1/4" Headphone Output
- Remote Unit:
- 1 x 1/4" Headphone Output
- 1 x DB15 Female Remote Connector
Meters
- Main Unit: 1 x Green Power LED
- Remote:
- 1 x Headphone Level Display
- 1 x Main Level/Edit Display
- 1 x System LCD for Displaying Status and Settings
- Talkback Mic:
- XLR Connector with 48V Phantom Power on Main Unit
- Control Switches on Main Unit and Remote
- Headphone Output:
- 1 x 1/4" on Main Unit Front Panel
- 1 x 1/4" on Remote Unit
Dimensions
- Main Unit: 17 x 10.5 x 3.5" (432 x 267 x 89mm)
- Remote: 5.25 x 8 x 1.6" (133 x 203 x 41mm)
- Power Supply: 8.5 x 8.5 x 1.7" (216 x 216 x 43mm)
Weight
- Main Unit: 14.1 lbs (6.4kg)
- Remote: 2.3 lbs (1kg)
- Power Supply: 6.5 lbs (2.9kg)
Packaging Info
- Package Weight
- 25.4 lb
- Box Dimensions (LxWxH)
- 26.5 x 18.8 x 11.8"
