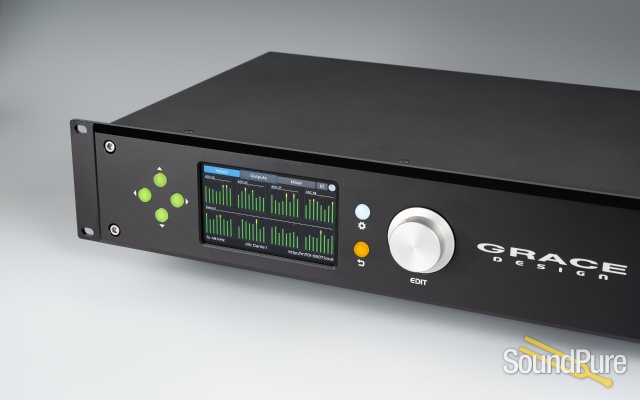

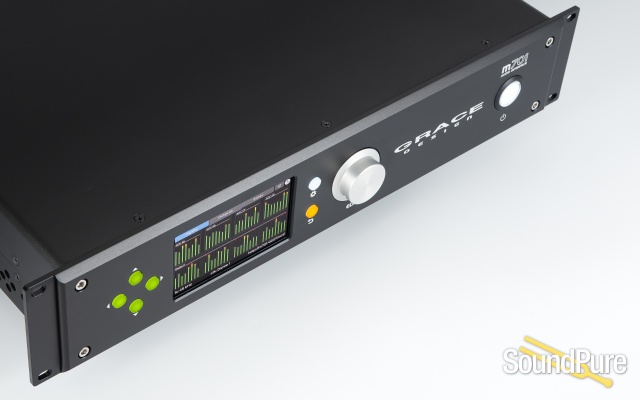

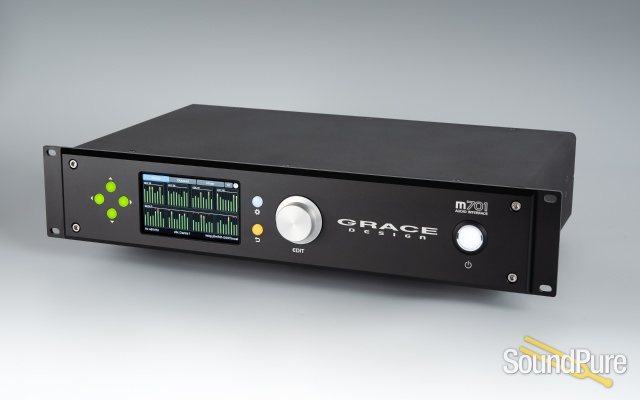

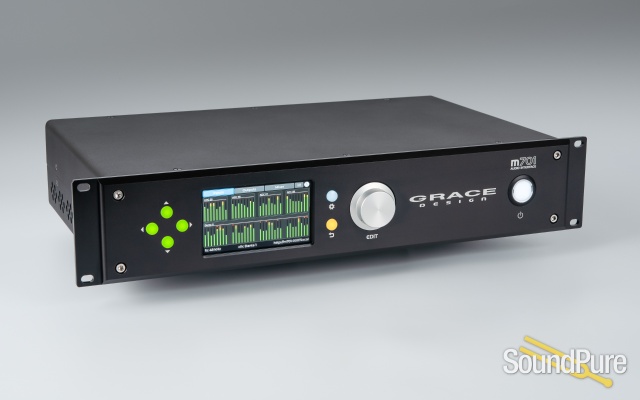

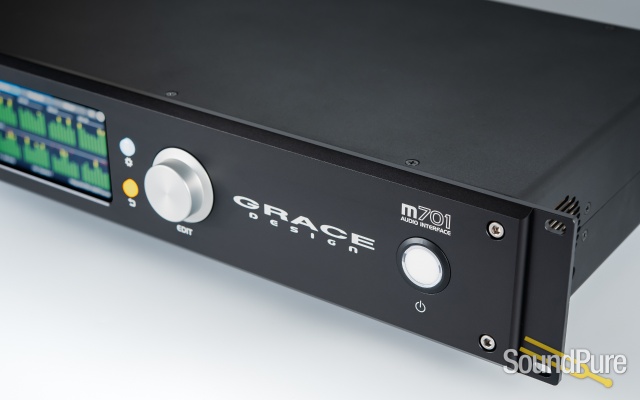

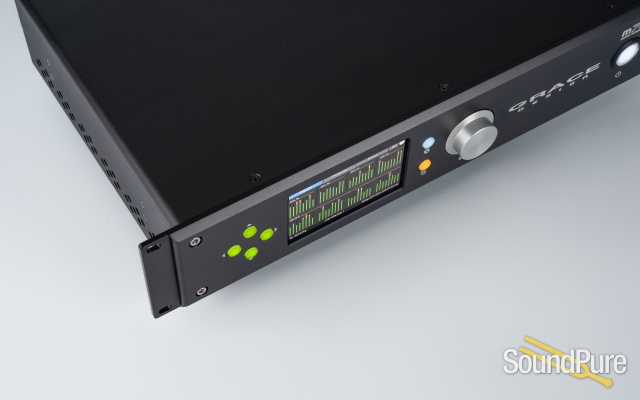

Grace Design m701 32x32 Dante Audio Interface  From Grace

Modular Audio Interface and AD/DA Converter. Base unit with 32 ch ADC, 32 ch DAC and Dante

Grace Design

$10,645.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

Retail:  $11,205.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Your credit card will not be charged until the item ships (do not use a debit card).
Payments as low as $242/mo.

Manufacturer's Description from Grace

The Grace Design m701 is a modular, high channel count audio interface designed for professional and commercial recording facilities. As our first foray into a complete interface design, the goal was to provide our very highest quality AD/DA convertion integrated into a powerful, configurable platform. The m701’s modular design allows a wide array of configurations based on your needs. From simple in the box systems to large hybrid studios, the m701 is ready.

Modern Conversion

We have been building AD/DA conversion into our mic preamp and monitoring products since the early 2000’s. During this time, digital audio converter chips have achieved a very mature state. Today it is hard to find a bad converter chip. But building a complete audio product around any converter still requires careful and expert audio design skills, which we have been honing for decades. Analog input and output circuitry, power supply, and clock design matter more than ever, and are what differentiates a great sounding I/O device from the rest. The m701 furthers our legacy of open and musical sounding audio hardware with a remarkably powerful studio I/O tool.

Massive I/O Capability

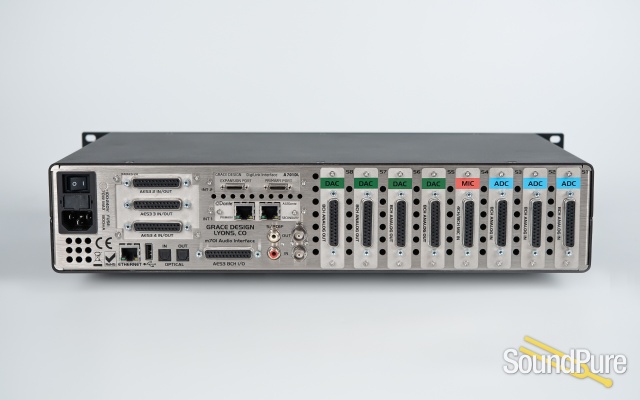

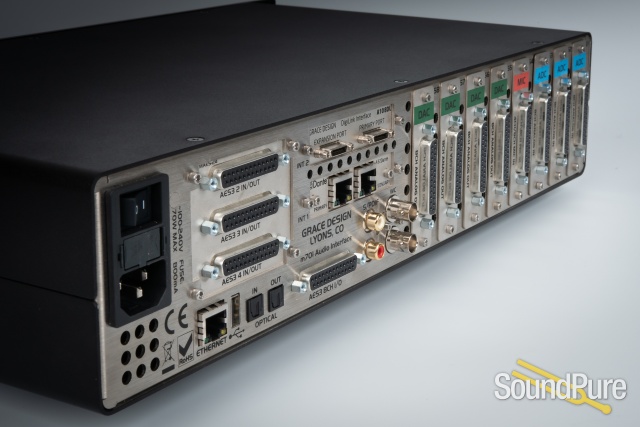

Individual 8 channel ADC and DAC modules can be installed in any combination into the 8 available card slots, allowing for a wide array of I/O combinations based on the customer’s need. Digital I/O options include: two 32 channel module slots for Digilink, Dante, USB2 (upcoming), Ravenna/ AES67/ ST2110 and other future formats. A third option module slot is provided for expanding m701 digital I/O capabilities, such as an additional 24 channel AES3 I/O module, Word Clock distribution module, or future studio monitoring functionality. Included baseboard digital I/O connections are 8ch AES, 8ch ADAT and 2ch S/PDIF. Also, optional Grace Design high-quality 4ch microphone preamplifier modules can mounted in any of the 8 card slots.

GraceNet

Configuring and operating the m701 is done at either the front panel or via our GraceNet web-based control software. GraceNet is built-in and automatically works with any browser – there is no software to install or update. The home screens for both the front panel hardware and GraceNet display comprehensive metering views for all inputs and outputs, as well as give access to all configuration and setup functions. GraceNet even includes an integrated control interface for Grace Design m108 microphone preamplifiers.

Cue Mixing Built-in

A built-in 32×8 mixer allows for multiple low latency cue mixes in a tracking environment, with individual mixers made available to the artist via GraceNet and a personal device (phone or tablet).

Grace Design Reliability

The m701 main unit is a single 2U chassis engineered with a high-quality dual redundant power supply and ultra quiet fan to maximize reliability for hardworking recording facilities. The m701 is backed by a 5 year transferrable warranty on all parts and labor.

FEATURES

• 64 channel analog I/O
• 202 channel digital I/O
• Reference quality 8ch AD/DA modules
• Eight 8ch AD/DA option slots
• Digilink & Dante option modules
• Ravenna /AES67/ ST2110 option module
• 32×32 USB2 option module (upcoming)
• 24ch AES3 I/O option module
• Included I/O: 8ch ADAT, 8ch AES3, 2ch S/PDIF
• High performance 4ch microphone preamp option module
• Integrated control for Grace Design m108 mic preamplifiers
• GraceNet built-in Ethernet / web browser control
• Built-in 32×8 low latency cue mixer
• System workflow load, edit, save, and recall
• 5 year transferrable warranty

Grace Design

About Manufacturer

Audio engineer/designer Michael Grace originally began building single order custom audio products for a small, devout following of recording engineers and artists is 1990. Before long, the word had spread about Michael's custom microphone preamplifier designs, which were said to outperform anything else that was commercially available. Based on an increasing demand for his mic preamp design, in 1994 Grace Design was founded and began production of the original 801 mic preamp. Not only did the 801 provide a new level of audio performance and functionality, it helped to establish outboard microphone preamplifiers and direct-to-tape recording as a new standard in professional audio production. Over the years, Grace Design has maintained a steady, methodical pace to developing new products and technologies. Our product line has evolved into a definitive collection of microphone preamplifier configurations and other unique professional audio products. While the professional audio industry is inundated with products seemingly designed for obsolescence, we pride ourselves on providing audio professionals with the finest tools imaginable. Located in Boulder, Colorado, Grace Design continues its mission into the new millennium. As our company grows, we continually strive to improve our production methods to make sure theya re exact, efficient and environmentally sound. Their employees are treated like family and they strive to improve our production mehods to make sure they are exact, efficient and environmentally sound. Our employees are treated like our family and we strive to maintain our business relationships as friendships. And above all, we remain driven by the original passion that founded the company- the love of music.

Specifications



DA CONVERTER Option Fs=48kHz unless otherwise noted.

THD+N Ratio

-3dBFS In, +15dBu Out, 22Hz-22kHz BW

<-115dB

-3dBFS In, +21dBu Out, 22Hz-22kHz BW

<-110dB

Dynamic Range

20-22kHz bandwidth

123dB

20-22kHz bandwidth and A weighting filter

125dB

Intermodulation Distortion

SMTPE/DIN 4:1 50Hz, 7kHz, 1.0V Out

<107dB

Frequency response

+/-0.2dB

-3dB

44.1kHz Fs

DC-20.5kHz

DC-20.6kHz

48kHz Fs

DC-22.2kHz

DC-23.5kHz

88.2kHz Fs

DC-27kHz

DC-43.2kHz

96kHz Fs

DC-27kHz

DC-47kHz

176.4kHz Fs

DC-27kHz

DC-85.5kHz

192kHz Fs

DC-27kHz

DC-92.7kHz

Output Level (selectable)

0dBFS

+24dBu or +18dBu

Output Noise (+18dBu=0dBFS)

20-22kHz

-105dBu

20-22kHz, A weighting filter

-107dBu

Crosstalk

Interchannel crosstalk, 1kHz

-123dB

Interchannel crosstalk, 10kHz

-103dB

Level and Impedanc

Digital Trim Range

-20 to +20dB, 0.1dB steps

Channel Tracking Accuracy

+/-0.05dB

Maximum Output Level

+18dBu or +24dBu

Output Impedance (balanced)

300Ω

A/D CONVERTER OPTION Fs=48kHz unless otherwise noted.

THD+N Ratio

1kHz, -1dBFS, 20Hz-22kHz

< 0.0004% (-108dB)

Dynamic range

22Hz-24kHz, 48kHz

>117dB

“A” weighted, 48kHz

>120dB

Intermodulation Distortion

IMD SMPTE 4:1 60Hz, 7kHz, -3dBFS

<0.002%

Frequency response

+/-0.2dB

-3dB

44.1kHz Fs

14Hz-20.6kHz

4.5Hz-21.1kHz

48kHz Fs

15Hz-22.4kHz

4.5Hz-23.0kHz

88.2kHz Fs

14.9Hz-41.1kHz

4.5Hz-42.3kHz

96kHz Fs

15Hz-44.7kHz

4.5Hz-46.1kHz

176.4kHz Fs

15.5Hz-79.6kHz

4.5Hz-88.09kHz

192kHz Fs

15Hz-86.7kHz

4.5Hz-95.97kHz

Full scale input level 0dBFS

Relay Selectable

+18dBu or +24dBu

Crosstalk

Interchannel crosstalk, 1kHz

-140dB

Interchannel crosstalk, 10kHz

-127dB

Input Impedance

Balanced Input (DB25 or XLR)

20k Ω

MICROPHONE PREAMPLIFIER OPTION MODULE

Gain Range

-6, +2-69B in 1dB steps

Sensitivity @ -6dB Gain

+30dBu = 0dBFS

Sensitivity @ 69dB Gain

-45dBu = 0dBFS

Dynamic Range

20-20kHz bandwidth, 14dB Gain

>119dB

20-20kHz bandwidth and A weighting filter, 14dB Gain

>122dB

Frequency Response

@ 40dB gain ± 0.2dB (50Ω source)

15Hz-300kHz

@ 40dB gain ± 3dB (50Ω source)

4.5Hz-1.0MHz

THD+N ratio

@ 20dB gain 0dBu in (-4dBFS), 1kHz

<-104dB

@ 40dB gain -20dBu in (-4dBFS), 1kHz

<-102dB

@ 60dB gain -40dBu in, (-4dBFS), 1kHz

<-87dB

Intermodulation Distortion

@ 40dB gain +20dBu out

SMPTE/DIN 1:1 (50Hz, 7kHz)

<.0010%

SMPTE/DIN 4:1 (50Hz, 7kHz)

<.0020%

Noise - Referred to Input

@ 60dB gain, 50Ω source

-129dB

@ 60dB gain, 150Ω source

-127dB

@ 60dB gain, 600Ω source

-123dB

Crosstalk

Any Channel @ 40dB gain 1kHz

-132dB

Any Channel @ 40dB gain 10kHz

-122dB

CMRR

@ 60dB gain, +20dBu CM, 1kHz

>95dB

@ 60dB gain, +20dBu CM, 10kHz

>84dB

@ 60dB gain, +20dBu CM, 60Hz

>70dB

Maximum Input Level

Balanced, 1kHz, -6dB Gain

+30dBu (24.5Vrms)

Balanced, 1kHz, 69dB Gain

-45dBu (4.3mVrms)

Impedance

Input: +48V On

8kΩ

Input: +48V Off, Ribbon Mode

20kΩ

Dynamic Range

20-20kHz bandwidth, 14dB Gain

>119dB

20-20kHz bandwidth and A weighting filter, 14dB Gain

>122dB

Channel Matching Accuracy



+/-0.05dB

CLOCKING

Supported Sample Rates kHz

44.1, 48, 88.2, 96, 176.4, 192



External Clock

Lock Range

FS +/- 1%

Word Clock Input Voltage (BNC)

200mV-5.0V peak to peak

Word Clock Output voltage

5V peak to peak

Word Clock Input Impedance

48kΩ or 75Ω

Word Clock polarity

Left data: High, Right data: Low

Intrinsic Jitter, 10Hz-20kHz BW

Internal Clock

<40ps RMS

External Clock

<40ps RMS

Jitter Rejection Corner Frequency

0.5Hz

GENERAL

System Latency, Linear Phase Filters

48kHz

96kHz

192kHz

ADC to Digital Output

0.5ms

0.25ms

0.12ms

Digital Input to DAC

0.8ms

0.4ms

0.2ms

System Latency, Minimum Phase Filters

48kHz

96kHz

192kHz

ADC to Digital Output

0.2ms

0.1ms

0.05ms

Digital Input to DAC

0.2ms

0.1ms

0.05ms

Cue Mixer Latency

TBD

TBD

TBD

Network connection modes

dhcp, static, link-local

100Mbps

RJ45

Mechanical

Weight

Dimensions

Audio Control Unit



6.8lbs (3.2kg) 19"W x 3.5" H x 10.9" L

Power Consumption

90-250V~ 50-60Hz

50W Max
