Gibson ES Les Paul Gold Top Electric Quick 'n' Dirty
In this video, Sound Pure electric guitar specialist Eddie Berman plays the Gibson ES Les Paul Gold Top Electric.
Used · Very Good
Luthier-Certified
Sound Pure's Take
Weight: 7.15 Lbs
Condition: Used, Very Good
Get your Buddy Miller,Neil Young,Daniel Lanois on with this unique approach to an LP !!!
P-90's,Semi Hollow Les Paul with a Bigsby - What's not to love :)
From Gibson Guitars

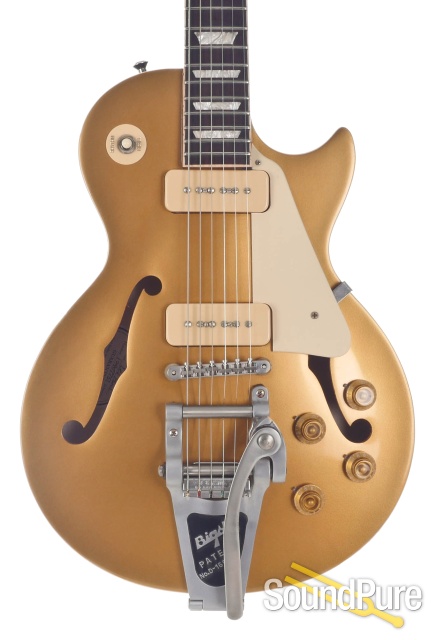

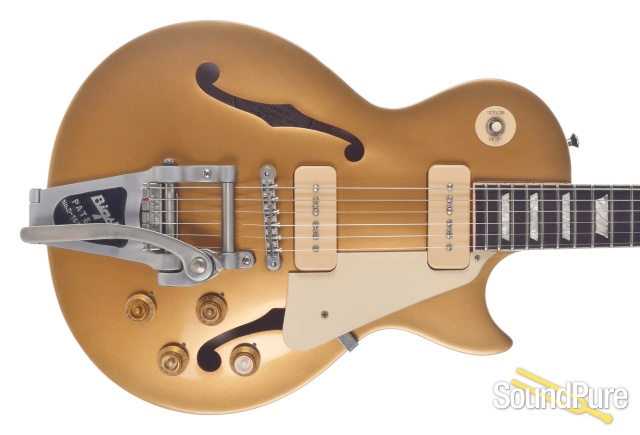

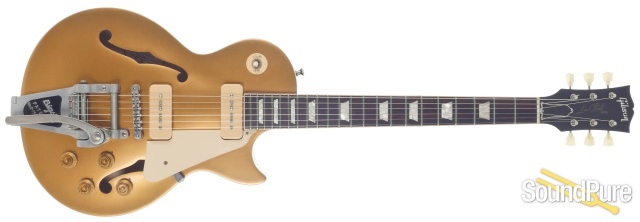

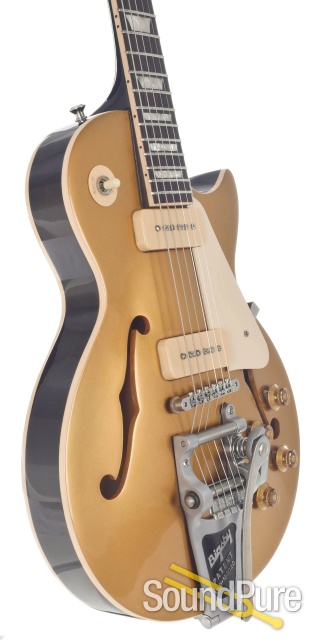

The popular new Les Paul-meets-ES-335 hybrid from Gibson Memphis gets a classy new outfit thanks to a VOS Goldtop finish. Semi-meets-solid construction, quarter-sawn Adirondack spruce bracing coupled with a mahogany center block, two MHS P-90 pickups, historic truss rod, titanium bridge saddles and a Bigsby vibrato provide classic tone, while rolled neck binding delivers a sublimely comfortable playing feel.
- Year
- 2017
- Serial Number
- 10407751
Top
- Wood Species
- Maple, Poplar, Maple
- Pieces
- 3-Ply
- Grade
- Plain
- Binding
- Cream

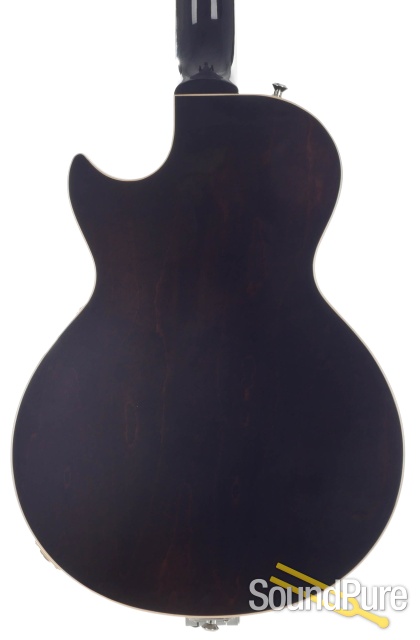

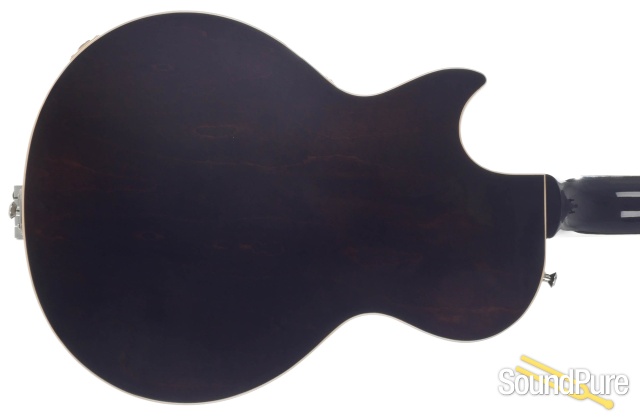

Back
- Wood Species
- Maple, Poplar, Maple
- Pieces
- 3-Ply
- Density
- Plain
- Binding
- Cream
Neck
- Wood Species
- Mahogany
- Pieces
- 1
Details
- Truss Rod
- Historic
- Profile
- Rounded "C"
- Thickness at Fret 1
- 21.59 mm / .850"
- Thickness at Fret 12
- 24.13 mm / .950"
- Other Materials
- Franklin Titebond 50

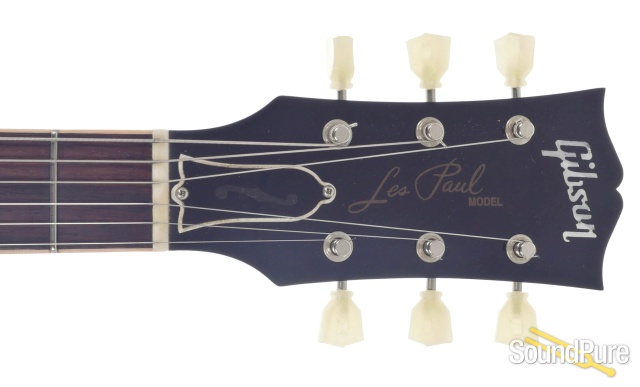

Peg Head
- Type
- SP-1
- Inlay
- Mother of Pearl
- Peg Head Binding
- None
- Logo
- Mother of Pearl "Gibson"
- Silkscreen
- Gold "Les Paul Model"
- Headstock Angle
- 17 degrees
Neck Fit
- Joint Angle
- 4 degrees
- Joint Angle Tolerance
- 0 deg 0 min 15 sec
- Type
- Mortise and Tenon
- Adhesive
- Franklin Titebond 50
Nut
- Style
- White
- Material
- Bone
- Width
- 4.2863 cm / 1.6875"
Fingerboard
- Wood Species
- Rosewood
- Pieces
- 1
- Shade
- Dark
Fingerboard Details
- Radius
- 30.48 cm / 12 "
- Frets
- 22
- Nut/End of Board
- 4.2863 cm / 1.6875" @ nut, 5.2375 cm / 2.062" @ end of board
- Scale
- 62.865 cm / 24.75"
- Binding
- Cream
- Side Dots (Color)
- Black
Fingerboard Inlays
- Style
- Trapezoid
- Material
- Pearloid
Electronics
- Pickups
- Soapbar P90
- Controls
- Volume, Volume, Tone, Tone

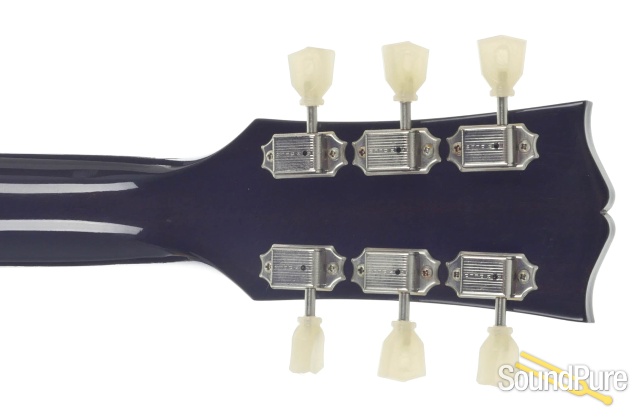

Tuning Keys
- Style
- Kluson Single Ring Tulip Button
- Material
- Body is stamped steel with plastic tulip button
Tuning Keys Details
- Tuning Ratio
- 15:01
- Gear Type
- Synchronized spur gear system
- What is allowable turn
- +/- 4 degrees
- Plating specs
- V.O.S. Nickel
Bridge
- Style
- ABR with Titanium Saddles
- Material
- Die cast alloy
- Plating Specs
- V.O.S. Nickel
Tailpiece
- Style
- Bigsby B-7
- Compensated
- No
- Material
- Aluminum
- Plating Specs
- Nickel
Output Jack
- Style
- 1/4" mono
Jack Plate
- Style
- Les Paul Square
- Material
- ABS - Cream (V.O.S.)
Strap Buttons
- Material
- V.O.S. Aluminum
Pick Guard
- Style
- Cream Les Paul (V.O.S.)
Truss Rod Cover
- Style
- Black and white bell with engraved F-Hole (V.O.S.)
Knobs
- Style
- Gold Top Hats (V.O.S.)

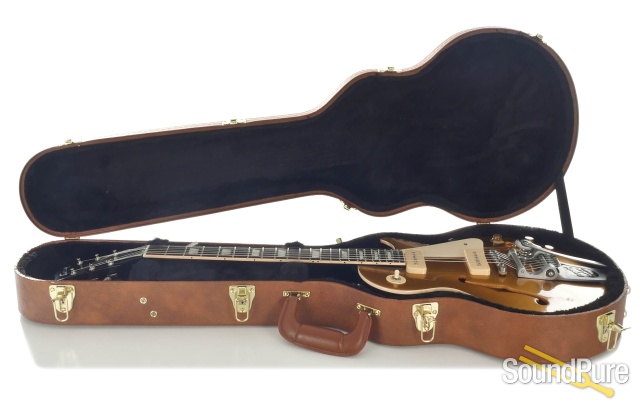

Hardshell Case
