Top

Wood Species

Maple

Pieces

2

Grade

Plain A

Binding

None

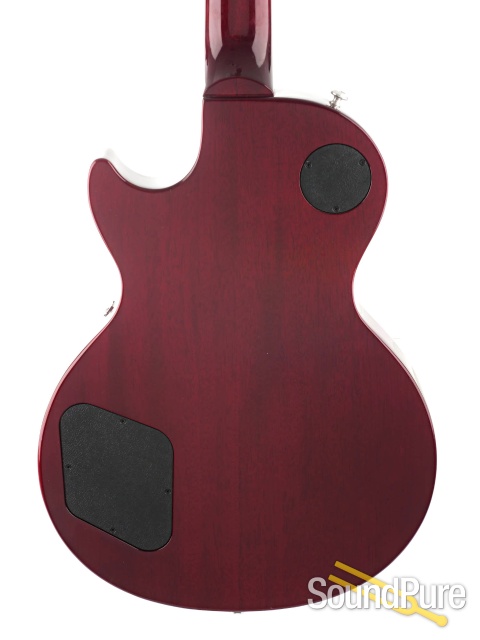

Back

Wood Species

Mahogany

Pieces

Multi-Matched

Density

Medium

Binding

None

Weight

Weight Relief

Ultra-Modern

Average Weight (body only)

4lbs. 6.7oz

Materials Used

Glue

Franklin Titebond 50

Body Contour

Carve

Classic

Neck

Neck

Wood Species

Mahogany

Pieces

1

Details

Truss Rod

Les Paul

Profile

Slim taper

Thickness at Fret 1

.800"

Thickness at Fret 12

.875"

Average Weight

1 lbs 2.0 oz

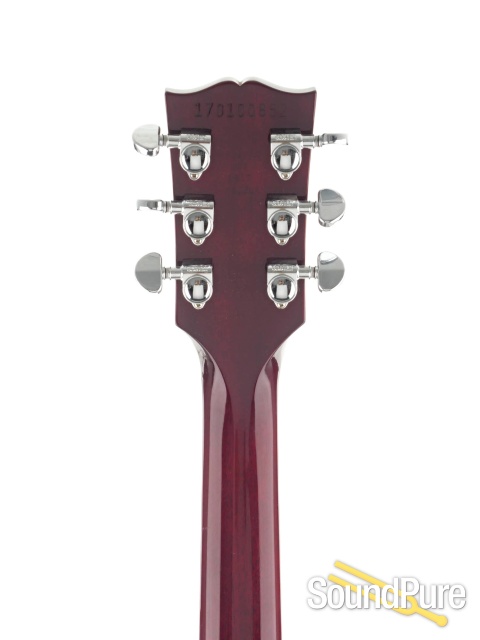

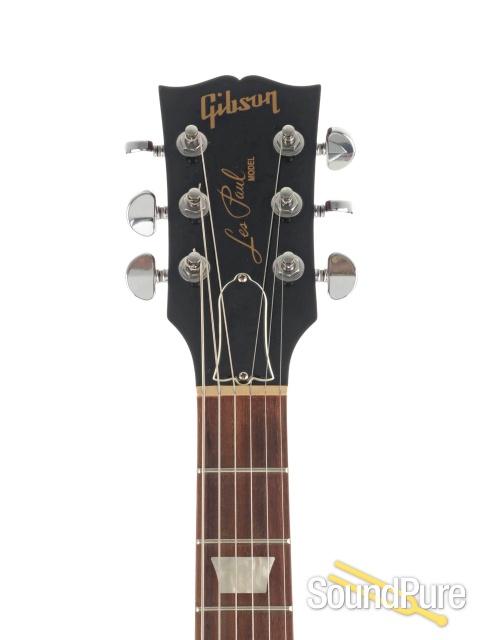

Peg Head

Type

SP1-B

Inlay

None

Peg Head Binding

None

Silkscreen

Gold "Gibson" & "Les Paul Model"

Headstock Angle

17 degrees

Neck Fit

Joint Angle

5.0 degrees

Joint Angle Tolerance

0 deg 0 min 15 sec

Type

Mortis and Tenon

Adhesive

Franklin Titebond 50

Gauges Used

Pitch Height Gauge and Alignment Gauge

Nut

Style

Nut

Material

Tektoid

Width

1.695"

Slots

E

0.046"

A

0.036"

D

0.026"

G

0.016"

B

0.011"

e

0.009"

Fingerboard

Wood Species

Rosewood

Pieces

1

Shade

Dark

Fingerboard Details

Radius

12"

Frets

22

Nut/End of Board

1.695" @ nut, 2.260" @ end of board

Scale

24 3/4

Binding

None

Side Dots (Color)

White

Fingerboard Inlays

Style

Trapezoid

Material

Acrylic

Dimensions

0.66" x 1.17"

Average Weight

0.24" x 1.56"

Finishes

Black Cherry Burst

Color Code

B6

Surface Texture

90 Sheen

Filler

Walnut

Sealer

1.5 - 2 mils

Top

Black Cherry Burst

Top Coat

Hi Gloss Lacquer / 90 Sheen, 7-8 mils

Scraped

Fingerboard and Nut

Wine Red

Color Code

WR

Surface Texture

90 Sheen

Filler

Walnut

Sealer

1.0 - 1.5 mils

Top

Wine Red

Top Coat

Hi Gloss Lacquer / 90 Sheen, 7-8 mils

Scraped

Fingerboard and Nut

Ebony

Color Code

EB

Surface Texture

90 Sheen

Filler

Walnut

Sealer

1.5 - 2 mils

Top

Ebony

Top Coat

Hi Gloss Lacquer / 90 Sheen, 7-8 mils

Scraped

Fingerboard and Nut

Electronics

PickupsRhythmLead

Style

490R498T

Winds/Coil

Screw side/Slug side:5250 / 52506900 / 6900

Material of Wire (gauge)

Copper (42)Copper (43)

Coil Dimensions (per coil)

2.61 x 0.68 "2.61 x 0.68"

Coil Material

ABSABS

Coil Winding Process

Machine WoundMachine Wound

Pole Piece Material

NickelNickel

Pole Piece Position from Nut

18 5/8"23 7/16"

Slug Material

NickelBare Steel

Slug Dimensions (diameter x length)

0.187 x 0.489"0.187 x 0.489"

Magnet Material

Alnico IIAlnico V

Magnet Position from Nut

19"23 1/8"

Magnet Dimensions

2.5 x 0.5"2.32 x 0.5"

Polarities

Screw side is the south pole of magnetReversed Polarity

Cover

ChromeChrome

Qfactor

5.624.07

ResistanceDC

7803 Ohms13980 Ohms

Resonant Frequency

2715.71 Hz2012.49 Hz

Tonal & Resonant Advancements

Better Hum canceling w/rev polarity Better Hum canceling w/rev polarity

Control Pocket AssemblyLead VolumeRhythm Volume

Type

500k Push/Pull "Coil-Tap"500k Push/Pull "Coil-Tap"

Peak Voltage

500V500V

Range

0-500K0-500K

Power Rating

1/4 watt above 100K ohms1/4 watt above 100K ohms

Resistance Tolerance

+/- 20%+/- 20%

Minimum Resistance

200 ohms200 ohms

Lead ToneRhythm Tone

Type

500K Non-Linear500K Non-Linear

Peak Voltage

500V500V

Range

0-500K0-500K

Power Rating

1/4 watt above 100K ohms1/4 watt above 100K ohms

Resistance Tolerance

+/- 20%+/- 20%

Minimum Resistance

200 ohms200 ohms

Capacitors

Lead ValueRhythm Value

.022uF.022uF

Hardware

Tuning Keys

Style

Grover Kidney

Material

Proprietary

Weight

.41 lbs

Tuning Keys Details

Tuning Ratio

18:01

Gear Type

Worm

What is allowable turn

Proprietary

Plating specs

Chrome

Part numbers

430-14157 / 58

String Dimensions

E

0.046"

A

0.036"

D

0.026"

G

0.016"

B

0.011"

e

0.009"

Bridge

Style

Tune-o-matic

Material

Aluminum

Plating Specs

Chrome

Part number

430-14450

Weight

.96 oz

Dimensions of String Slots

E

0.058"

A

0.048"

D

0.038"

G

0.028"

B

0.019''

e

0.014"

Tailpiece

Style

Stop Bar

Compensated

No

Material

Aluminum

Plating Specs

Chrome

Part number

430-14451

Weight

1.12 oz

Output Jack

Style

1/4" mono gold plated positive contact

Jack Plate

Style

Les Paul Square

Material

ABS Black

Part Number

430-19385

Weight

0.21 oz

Strap Buttons

Material

Aluminum

Plating Specs

None

Part numbers

430-19160 / 60E

Weight

0.14 oz

Plastics

Pick Guard

Style

Les Paul

Part Number

430-12689

Truss Rod Cover

Style

Black/White bell, Stamp "Studio"

Part Number

430-19708

Knobs

Style

Speed Knobs Gold

Part Number

430-19264

Dial Pointers

Yes/No

No

Control Plate(s) (Backplate Cover)

Style

SS infused polycarbonate for ESD protection

Part Number

380-12209

Control Plate(s) (SwitchPlate Cover)

Style

SS infused polycarbonate for ESD protection

Part Number

380-12211

Switch Washer

Style

None

Part Number

n/a

Trim Rings

Style

Black Humbucker Low/High and Cream Humbucker Low/High

Part Number

440-13884 / 440-13851

Accessories

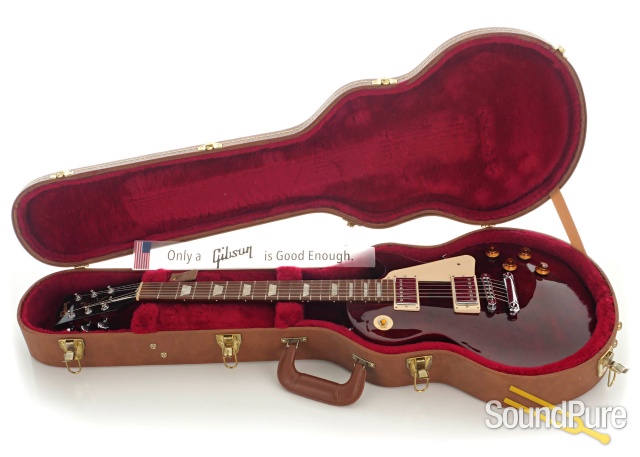

Case

Style

LP Hard Shell

Color

Brown

Strap Locks

None

Tools

Gibson USA Multi Tool, Gibson USA Premium Strap, Gibson USA Polishing Cloth

Manual

Gibson USA's owners

COA/Other

None
