2017
- Serial Number
-
170030933

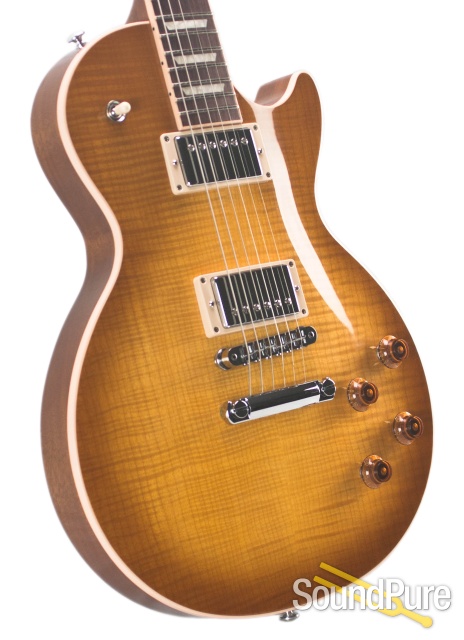

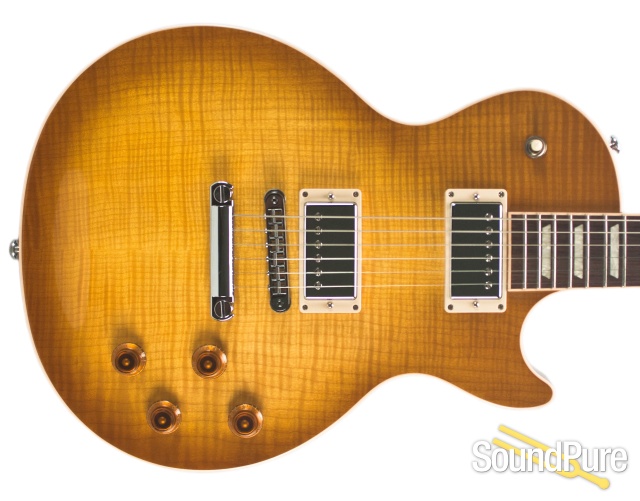

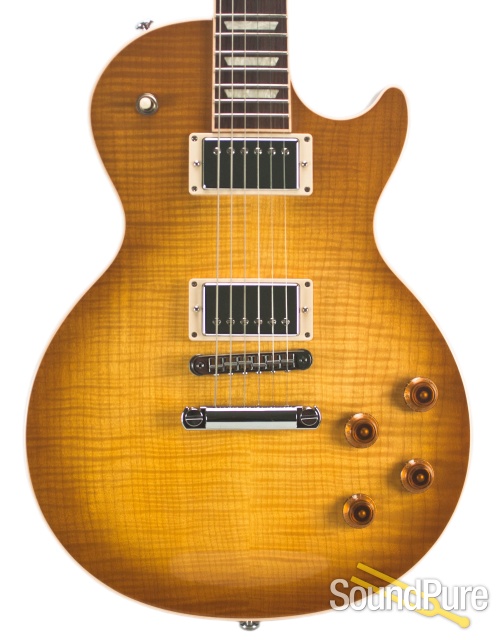

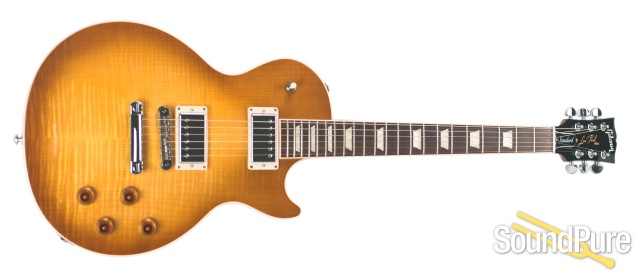

BODY
TOP
- Wood Species
-
Maple
- Pieces
-
2
- Grade
-
AAA
- Binding
-
Cream

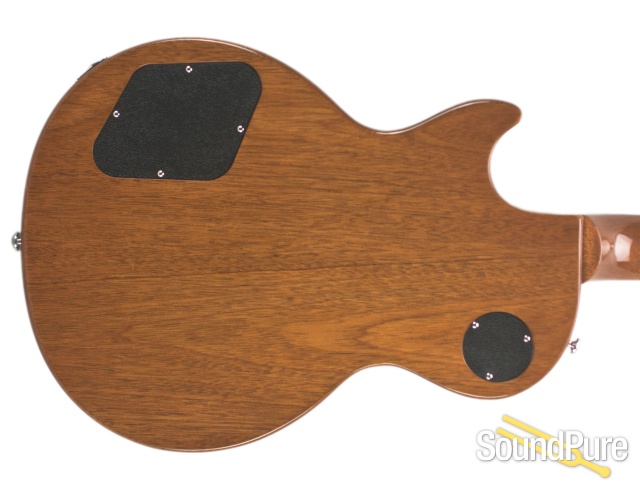

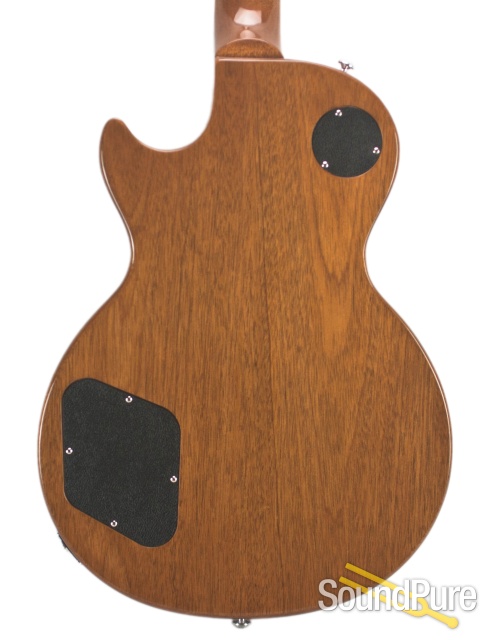

BACK
- Wood Species
-
Mahogany
- Pieces
-
2
- Density
-
Low
- Binding
-
None
WEIGHT
- Weight Relief
-
Ultra-Modern
- Average Weight (body only)
-
4lbs. 6.7oz
MATERIALS USED
- Glue
-
Franklin Titebond 50
- Tonal, Resonant, and/or Technical Effect
-
n/a
BODY CONTOUR
- Carve
-
Classic
NECK
- Wood Species
-
Mahogany
- Pieces
-
1
DETAILS
- Truss Rod
-
Les Paul
- Profile
-
Slim taper
- Thickness at Fret 1
-
.800"
- Thickness at Fret 12
-
.875"
- Average Weight
-
1 lbs 2.0 oz

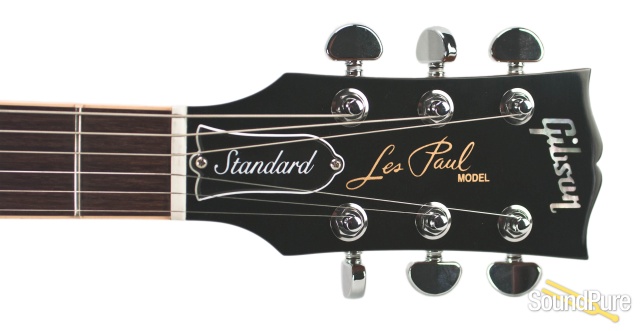

PEG HEAD
- Type
-
SP1-B
- Inlay
-
Mother of Pearl
- Peg Head Binding
-
None
- Logo
-
"Gibson"
- Silkscreen
-
Gold "Les Paul Model"
- Headstock Angle
-
17 degrees
NECK FIT
- Joint Angle
-
5.0 degrees
- Joint Angle Tolerance
-
0 deg 0 min 15 sec
- Type
-
Mortis and Tenon
- Adhesive
-
Franklin Titebond 50
- Gauges Used
-
Pitch Height Gauge and Alignment Gauge
NUT
- Style
-
Nut
- Material
-
Tektoid
- Width
-
1.695"
- Slots
-
E: 0.046", A: 0.036", D: 0.026", G: 0.016", B: 0.011", e: 0.009"
FINGERBOARD
- Wood Species
-
Rosewood
- Pieces
-
1
- Shade
-
Dark
FINGERBOARD DETAILS
- Radius
-
Compound Radius
- Frets
-
22
- Nut/End of Board
-
1.695" @ nut, 2.260" @ end of board
- Scale
-
24.75"
- Binding
-
Cream
- Side Dots (Color)
-
Black
FINGERBOARD INLAYS
- Style
-
Trapezoid
- Material
-
Acrylic
- Dimensions
-
Large - 0.66" x 1.17" Small - 0.24" x 1.56"
- Average Weight
-
4.16 oz
FINISH
- Color Code
-
HB
- Surface Texture
-
Smooth/ Hi-Gloss 90 Sheen Lacquer
- Filler
-
Walnut
- Sealer
-
1.5-2 mils
- Top
-
Honey Burst
- Top Coat
-
Hi-Gloss Lacquer / 90 Sheen, 7-8 mils
- Scraped
-
Fingerboard Sides, Body and Nut
ELECTRONICS
PICKUPS (Rhythm, Lead)
- Style
-
Rhythm Pro, Lead Pro
- Winds/Coil
-
Screw side/Slug side: 5000 / 5200, 5300 / 5500
- Material of Wire (gauge)
-
Enamel (42), Enamel (42)
- Coil Dimensions (per coil)
-
2.61" x 0.68", 2.61" x 0.68"
- Coil Material
-
ABS, ABS
- Coil Winding Process
-
Machine Wound, Machine Wound
- Pole Piece Material
-
Nickel plated steel, Nickel plated steel
- Pole Piece Position from Nut
-
18.625", 23.437"
- Slug Material
-
Nickel plated steel, Nickel plated steel
- Slug Dimensions (diameter x length)
-
0.187 x 0.489", 0.187 x 0.489"
- Magnet Material
-
Alnico 5, Alnico 5
- Magnet Position from Nut
-
19", 23.125 "
- Magnet Dimensions
-
2.375" x 0.5", 2.375" x 0.5"
- Cover
-
Chrome, Chrome
- Qfactor
-
5.4, 5.35
- ResistanceDC
-
7640 Ohms, 7980 Ohms
- Resonant Frequency
-
2863.30 Hz, 2780.20 Hz
CONTROL POCKET ASSEMBLY
LEAD VOLUME, RHYTHM VOLUME
- Type
-
500k Push/Pull "Coil-Tap", 500k Push/Pull "Coil-Tap"
- Peak Voltage
-
500V, 500V
- Range
-
0-500K, 0-500K
- Power Rating
-
1/4 watt above 100K ohms, 1/4 watt above 100K ohms
- Resistance Tolerance
-
+/- 20%, +/- 20%
- Minimum Resistance
-
200 ohms, 200 ohms
LEAD TONE, RHYTHM TONE
- Type
-
500k Push/Pull "Pure By-pass", 500k Push/Pull "Phase"
- Peak Voltage
-
500V, 500V
- Range
-
0-500K, 0-500K
- Power Rating
-
1/4 watt above 100K ohms, 1/4 watt above 100K ohms
- Resistance Tolerance
-
+/- 20%, +/- 20%
- Minimum Resistance
-
200 ohms, 200 ohms
- Capacitors
-
Lead Value = .022uF, Rhythm Value = .022uF
HARDWARE

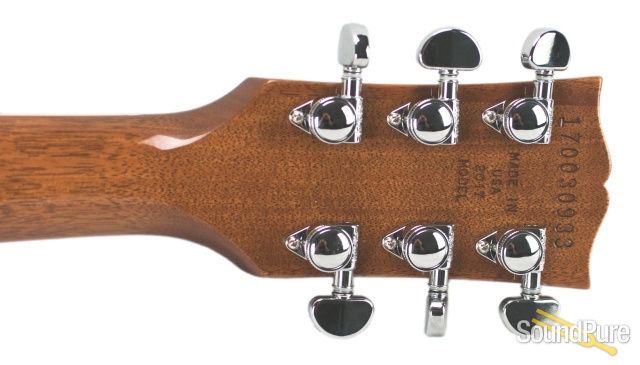

TUNING KEYS
- Style
-
Grover Locking Kidney
- Material
-
Chrome
- Weight
-
1.5 oz
TUNING KEYS DETAILS
- Tuning Ratio
-
18:01
- Gear Type
-
Worm
- What is allowable turn
-
+/- 4 degrees
- Plating specs
-
Chrome
- Part numbers
-
430-15851 / 52
STRING DIMENSIONS
- E
-
0.046", A: 0.036", D: 0.026", G: 0.016", B: 0.011", e: 0.009"
BRIDGE
- Style
-
Tune-o-matic
- Material
-
Aluminum
- Plating Specs
-
Chrome
- Part number
-
430-14450
- Weight
-
.96 oz
DIMENSIONS of STRING SLOTS
- E
-
0.058", A: 0.048", D: 0.038", G: 0.028", B: 0.019'', e: 0.014"
TAILPIECE
- Style
-
Stop Bar
- Compensated
-
No
- Material
-
Aluminum
- Plating Specs
-
Chrome
- Part number
-
430-14451
- Weight
-
1.12 oz
OUTPUT JACK
- Style
-
1/4" mono gold plated positive contact
JACK PLATE
- Style
-
Les Paul Square
- Material
-
Chrome
- Part Number
-
430-19467
- Weight
-
0.21 oz
STRAP BUTTONS
- Material
-
Aluminum
- Plating Specs
-
None
- Part numbers
-
430-19160 / 60E
- Weight
-
0.14 oz.
PLASTICS
PICKGUARD
- Style
-
Les Paul
- Part Number
-
430-12093
TRUSS ROD COVER
- Style
-
Black/White bell, Stamp "Standard"
- Part Number
-
430-19398
KNOBS
- Style
-
Amber Top Hat
- Part Number
-
430-19631
DIAL POINTERS
- Yes/No
-
No
CONTROL PLATE(S) (BACKPLATE COVER)
- Style
-
SS infused polycarbonate for ESD protection
- Part Number
-
380-12209
CONTROL PLATE(S) (SWITCHPLATE COVER)
- Style
-
SS infused polycarbonate for ESD protection
- Part Number
-
380-12211
SWITCH WASHER
- Style
-
None
- Part Number
-
n/a
TRIM RINGS
- Style
-
Cream Humbucker Low/High
- Part Number
-
430-13894 / 430-13893

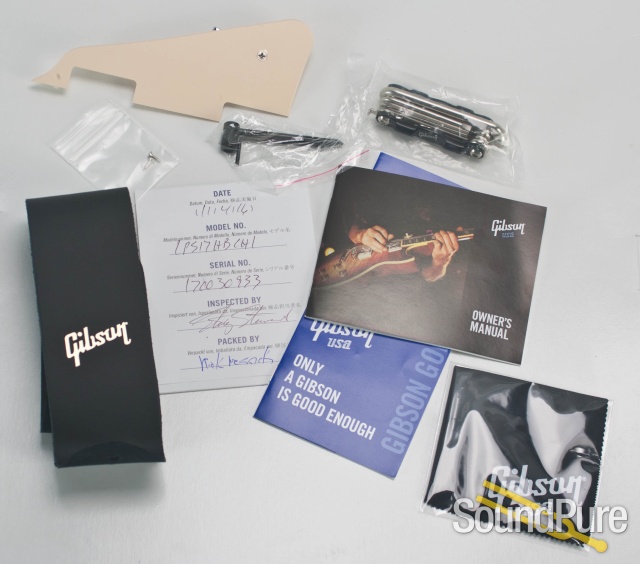

ACCESSORIES

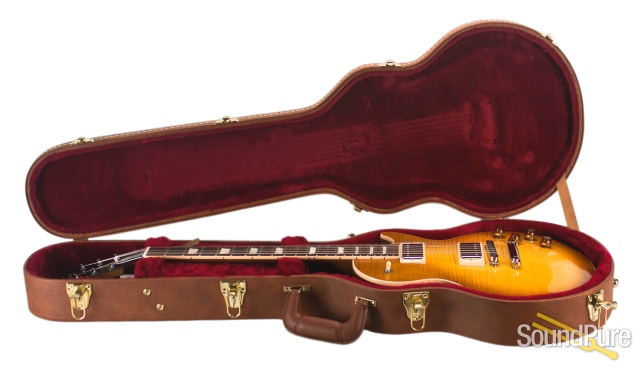

CASE
- Style
-
Hard Shell
- Color
-
Brown
- Strap Locks
-
None
- Tools
-
Gibson USA Multi-Tool, Gibson USA Premium Strap, Gibson USA Polishing Cloth
- Manual
-
Gibson USA's owners
- COA/Other
-
None
