Condition: Used, Excellent

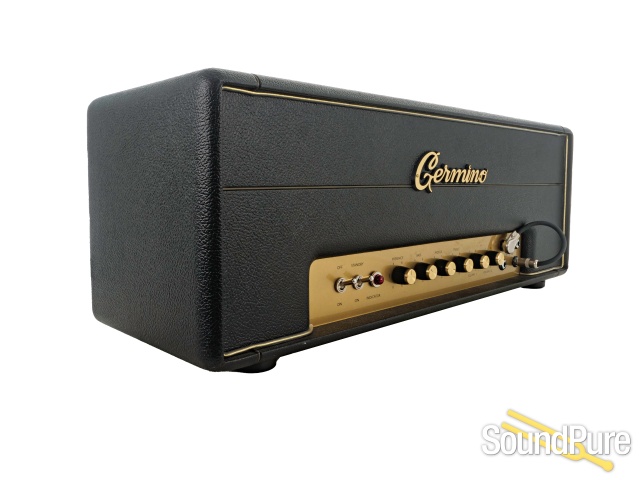

The Germino Lead 55LV is a handwired boutique amp head that faithfully captures the legendary tone and feel of a late-'60s plexi. Powered by a pair of EL34s, it delivers the classic blend of punchy upper mids, rich harmonics, and dynamic touch sensitivity that defined countless rock recordings. From edge-of-breakup cleans to thick, singing overdrive, the amp responds beautifully to picking dynamics and the guitar's volume control, making it feel incredibly alive under your fingers. Built with vintage-correct transformers, period-spec circuitry, and meticulous craftsmanship, the Lead 55LV offers authentic British amp character with exceptional clarity and articulation. Bold, expressive, and unapologetically classic, it's everything players love about a great plexi in a beautifully executed package.

The  Lead 55LV  model uses a dual EL-34 output section and "lead" circuit values. This is the Lead circuit used in original 68-69 JMP-50 1987 models. Great crunch and upper midrange are there to cut through the mix in a sweet way that only a plexi can. Single notes are warm with great harmonics.  Filtering is period correct for 68/69 JMP-50 specs.

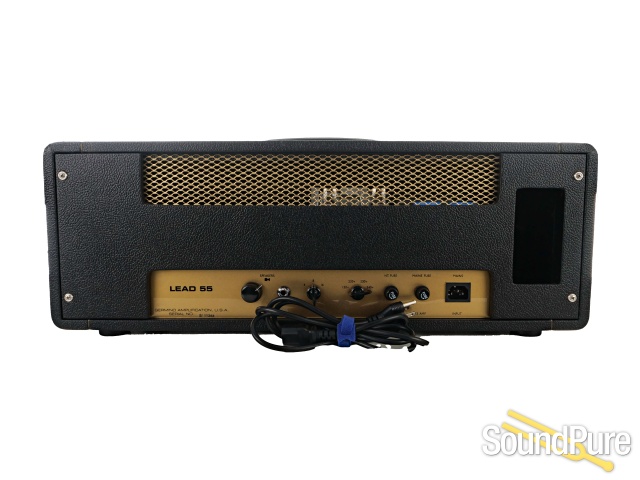

The 1202-118 power transformer which is stock for the LV model supplies 425vdc in ss rectifier mode. This model PT was used in the majority of JMP-50 amplifiers from 1967 thru 1969. Line voltage is select-able for 120, 220/230 and 240 vac operation on the back panel.

Output transformer is a Drake 784-139 replica with 3.3K primary impedance. Original style laminate is used with correct slotted steel and correct "cheese head" screws. Primary and secondary windings are interleaved as originals. Speaker output is selectable for 16/8/4 ohms.

Choke is Drake replica 352-114

An incredible sounding amplifier with all the classic late 60's and early 70's sounds. Goes from a slightly crunchy clean to a thick smooth lead tone with just a twist of the guitar's volume control. This is the sound of the famed 1968/69 plexi 1987 model at it's very best.

Component list is the same as our other products. Spot welded aluminum chassis,  carbon film and NOS carbon comp resistors, Mil spec potentiometers,  F&T filter capacitors. Film/foil  "vintage mustard style" coupling caps all hand wired on turret board.
