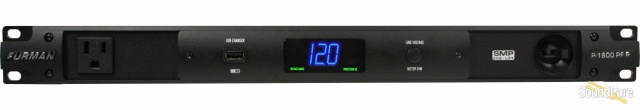

Furman P-1800 PF R  From Furman

Power Conditioner / Surge Suppressor

Furman Sound

$499.95

Retail:  $1,079.95

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $43/mo.

Manufacturer's Description from Furman


Engineered specifically for use with instrument amplifiers and other high-current equipment, the Furman P-1800 PF R offers a stable, protected and filtered low impedance powered supply for maximum performance of connected electronics. Furman's exclusive Power Factor provides a 45A peak current reservoir to minimize the detrimental effects of line impedance on high-current gear such as amplifiers and powered monitors. Clear Tone Technology provides additional line noise filtration tuned for instrument amplifiers for clean and consistent tone. Plus, equipment benefits from professional-level protection thanks to Furman's exclusive SMP and EVS technologies.

Power Factor Technology

Your amp needs a lot of power to sound its best. If youýre plugging into the wall, thereýs a good chance your amp is not going to get the current it needs when pushed. Furmanýs exclusive Power Factor Technology provides a 45A peak current reservoir to give your amp the headroom it needs to operate at maximum efficiency. No matter what venue or club, or how close or far away from the power panel, Furmanýs Power Factor Technology keeps your instrument amplifierýs tone consistent and sounding itýs best.

Clear Tone Technology

Clear Tone Technology works in unison with Power Factor Technology and Linear Filtering Technology to add an additional layer of AC noise filtration specifically engineered for instrument amplifiers. Clear Tone Technology provides tuned circuits that unveil instrument tone, harmonics, and clarity, resulting in a fuller sound and improved dynamic response.

Features

Power Factor Technology

Power Factor Technology supplies 45+ amps of instantaneous reserve current, on demand, for power starved amplifiers.

Surge Protection

Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination.

Clear Tone Technology

Clear Tone Technology provides tuned filtering circuits engineered for instrument amplifiers to provide a clean and consistent tone.

Voltmeter

Large digital voltmeter with discrete dimmer button displays incoming line voltage.

Wall Wart Spacing

Three widely spaced outlets accommodate bulky AC power transformers.

15 AMP Rating

15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

Nine Total Outlets

Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

USB Charger

Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.

Furman Sound

About Manufacturer

Furman Sound has been producing high-quality, professional products since 1974. Our products fall into two broad categories: the audio and video signal processors (on which the company was founded) and the innovative AC power conditioning and distribution products for which we are best known. Applications for these products are no longer limited to music, but also span a wide range of markets. Our highly acclaimed CE line, established in 2001, incorporates a complete line of AC power management products specifically engineered for today's home theater systems. Additional applications for our Professional Audio/Video products include sound reinforcement, home and professional recording, post production, broadcast systems, telecommunications, and data processing. Recently we were proud to introduce the next generation in power conditioning technology: Series II. All Series II units feature our revolutionary Series Multi-Stage Protection Plus (SMP+) circuit. Developed over a period of two years by our highly skilled team of engineers, our new circuit incorporates our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (E.V.S.), making it the most advanced power-conditioning system available. SMP+ can be found in all Series II and Power Factor units. We at Furman are proud of our 34 year history, but are focused on the future and our commitment to stretch the bounds of technology to provide the most advanced power purification solutions for any application.

Specifications

Maximum Current: 15 amps @ 124 Volts

Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug

BNC Socket w/Switch: 12VAC 500MA maxx (lamp not included)

Operating Voltage: 90 to 139 VAC

Over-Voltage Shutdown: 140 VAC Nominal

Spike Protection Mode: Line to neutral, zero ground leakage

Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 Amps

Noise Attenuation: 30 dB @ 2 kHz, 40 dB @ 10 kHz, 50 dB @ 20 kHz, 70 dB @ 100 kHz

Dimensions: 19” W x 12” D x 1.75” H

Weight: 13 lbs.

Power Consumption: 8 watts

Reactive Power: 460 VA

Downloads

Action

Name

Description

P-1800 PF R Manual

P-1800 PF R Data Sheet
