From Focusrite

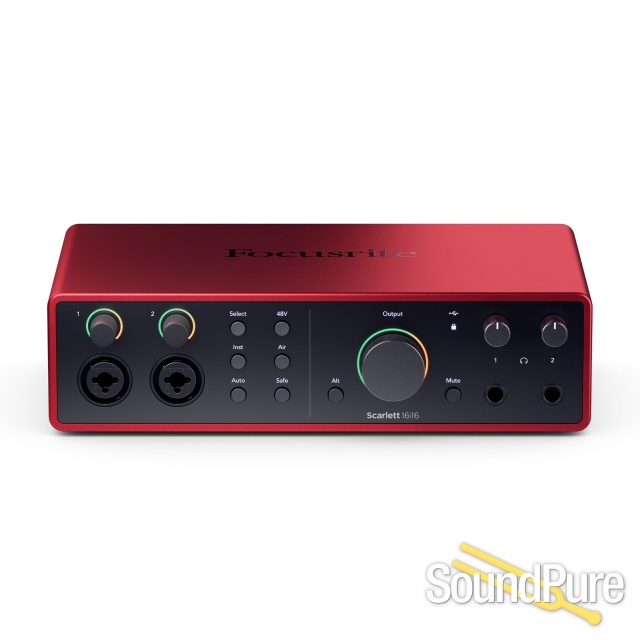

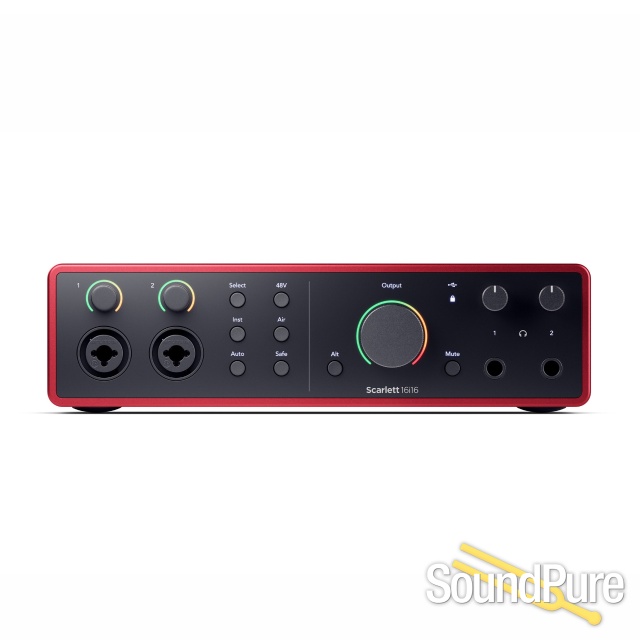

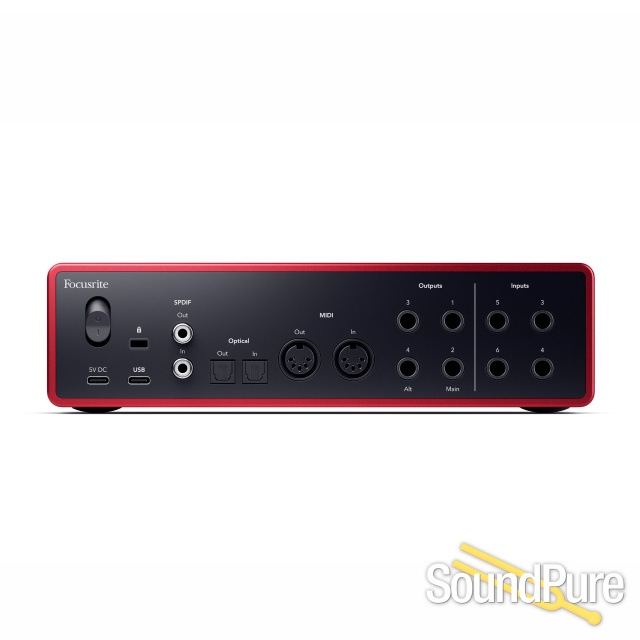

Scarlett 16i16 is a compact, all-in-one studio hub for your instruments and outboard gear. Ideal for artists and producers, 16i16 is equipped with enough I/O to connect all your studio gear. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line, and MIDI connections for your guitars, keys, synths, grooveboxes, and controllers. With 16i16 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session. Expand your channel count using the S/PDIF or ADAT connections.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio. 16i16 can be powered directly from a computer's USB-C port (3A), so no extra power supply is needed.



Overview

Number of Microphone Preamps

2

Phantom Power

Yes (Independent)

Instrument Inputs

2

Line Inputs

6

Air Mode

Yes

Auto Gain

Yes

Clip Safe

Yes

Line Outputs

4

Headphone Outputs

2

ADAT Inputs

1

ADAT Outputs

1

SPDIF Inputs

1

SPDIF Outputs

1

MIDI Inputs

1

MIDI Outputs

1

Loopback

Yes

Connectivity

USB Type-C

Protocol

USB 2.0

Form Factor

Desktop

Simultaneous I/O

18x18 (including loopback inputs)

A/D Resolution

24-bit/192kHz

Bus Powered

Yes (3A)

Dimensions

Height

60.5mm

Width

220mm

Depth

155.2mm

Weight

1.25kg

Supported Sample Rates

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone Inputs

Frequency Response

20-20kHz ± 0.06dB

Dynamic Range

116dB (A-Weighted)

THD+N

-100dB @ 8dB gain

Noise EIN

-127dBu (A-Weighted)

Maximum Input Level

16dBu

Gain Range

69dB

Impedance

3kΩ

Variable Line Inputs

Frequency Response

20-20kHz ± 0.05dB

Dynamic Range

115.5dB (A-Weighted)

THD+N

-100dB @ 8dB gain

Maximum Input Level

22dBu

Gain Range

69dB

Impedance

24kΩ

Fixed Line Inputs

Frequency Response

20-20kHz ± 0.02dB

Dynamic Range

115.5dB (A-Weighted)

THD+N

-106dB

Maximum Input Level

22dBu

Impedance

48kΩ

Instrument Inputs

Frequency Response

20-20kHz ± 0.05dB

Dynamic Range

113dB (A-Weighted)

THD+N

-80dB @ 8dB gain

Maximum Input Level

12dBu

Gain Range

62dB

Impedance

1MΩ

Line Outputs (Balanced)

Frequency Response

20-20kHz ± 0.02dB

Dynamic Range

122dB (A-Weighted)

THD+N

-112dB

Maximum Output Level

16dBu

Impedance

200Ω

Headphone Outputs

Frequency Response

20-20kHz ± 0.1dB @ 33Ω / 300Ω

Dynamic Range

112dB @ 33Ω

116dB @ 300Ω

THD+N

-100dB @ 33Ω

-110dB @ 300Ω

Maximum Output Level

5dBu into 33Ω

11dBu into 300Ω

Maximum Output Power

57mW into 33Ω

27mW into 300Ω

Impedance

11Ω

Analogue to Digital Converter

THD+N

-110dB

Dynamic Range

120dB (A Weighted)

Digital to Analogue Converter

THD+N

-115dB

Dynamic Range

130dB (A-Weighted)

Power

USB

3A

External (Optional)

15W
