From Focusrite
RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Key Features
- Upgradable to 256x256 channels at 96kHz
- 2x Thunderbolt™ 3 ports
- Windows and macOS compatible
- AES67 and SMPTE ST 2110 compliant
- Designed for powerful workflows
Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency — all via a single Thunderbolt™ connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.
Ready for recording
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.
Integrated control with flexible connectivity
RedNet TNX integrates with RedNet Control for centralised monitoring and management of all RedNet devices. Dual Ethernet RJ-45 ports support switched and redundant modes, ensuring flexible, reliable connectivity for critical applications.
Integrate within your setup
Each of the two Thunderbolt™ ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.
Upgradable with Dante Ready™
RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24-bit/96 kHz with Dante Ready™.
Backed by Focusrite
RedNet TNX is future-proof and designed for reliability. It’s also backed by Focusrite’s three-year warranty and award-winning 24/7/365 technical support for added peace of mind.
- Simultaneous Inputs & Outputs
-
- 128x128 (all sample rates)
- 256x256 (up to 96kHz) with a paid upgrade
- Digital Performance
-
- Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
- Dante Connectivity
-
- 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
- Driver Compatibility
-
- Multi-client ASIO and WDM (Windows)
- CoreAudio (Mac)

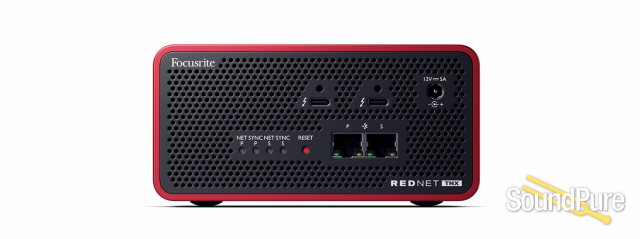

- Rear Panel
-
- 2x Thunderbolt™ 3 ports (Provide 15W of power)
- 2 x Sonnet ThunderLok™
- 2x Network Active LED indicators (Primary/Secondary)
- 2x Network Lock LED indicators (Primary/Secondary)
- 1x DC power inlet
- 1x Factory Reset button
- Heat Performance
-
- Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
- Miscellaneous
-
- Exposed threads for rack shelf/cradle mounting
- Dimensions
-
- Width: 144mm
- Depth: 212.4mm
- Height: 71.6mm
- Weight: 1.49kg
- Power requirements
-
- Powered by external DC power supply
- What's in the box?
-
- RedNet TNX unit
- 2m Thunderbolt™ 3 cable
- 2m cat6A Ethernet cable
- External DC power supply and cable
