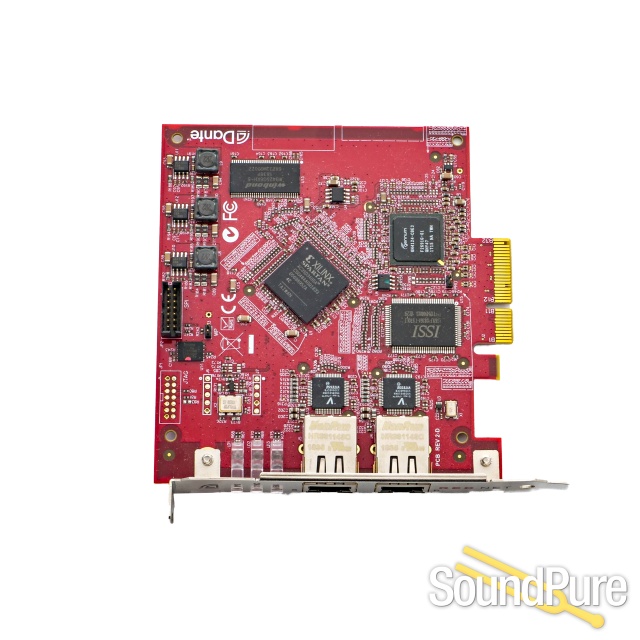

Focusrite RedNet PCIeR Dante Interface - Used  From Focusrite

RedNet PCIeR provides bi-directional Dante audio connectivity to Mac* or Windows computers, with full network redundancy. The card supports up to 128 channels of 24-bit bidirectional audio at 44.1, 48, 88.2 and 96 kHz sample rates, and 64 channels at 176.4 and 192 kHz. RedNet PCIeR mounts via a standard 4-lane PCI Express card slot. ASIO and Core Audio drivers are provided.

RedNet PCIeR uses the Dante audio-over-IP implementation, which can carry up to 512 bidirectional audio channels over a standard Gigabit (or higher) Ethernet link. Software is provided for the routing, controlling, and configuration of the card and attached interfaces, including remote control of reference level, selection of preferred master clock, and sample rate.

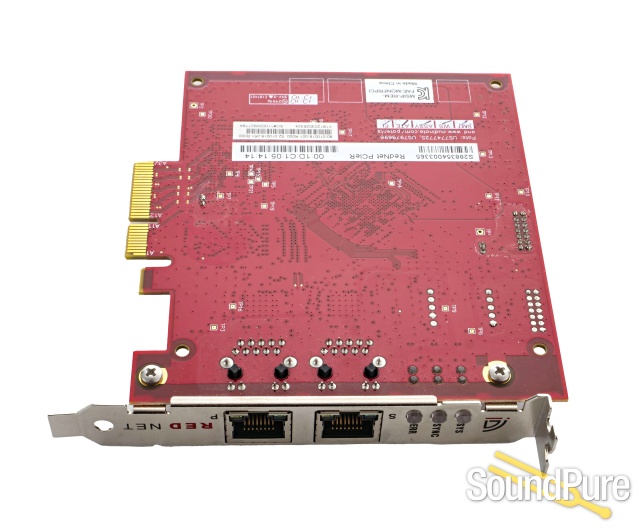

RedNet PCIeR includes fully redundant network access via dual rear panel RJ45 ports and will switch between primary and secondary networks automatically based on network availability.

*RedNet PCIe and PCIeR cards are not compatible with Apple Silicon processors (also known as 'M1' systems). They are, however, still compatible with Intel-based Mac computers. Please check the processor type before purchasing any new Mac systems if you're planning on using the RedNet PCIe and PCIeR cards.

Key Features

• Ultra low latency Dante audio interface for Mac and Windows computers
• 128 inputs / 128 outputs at 44.1, 48, 88.2 and 96kHz (64 I/O at 176.4 and 192kHz)
• Supports high-quality 24-bit/192kHz audio
• Compatible with most modern computers with a standard 4-lane PCI Express card slot
• 128x128 Dante interface for PC & Mac

RedNet PCIeR is a dedicated 128x128 Dante interface for Intel-based Mac* and Windows PCs. The 4x PCIe card operates with ASIO or Core Audio applications, and features a primary and secondary Ethernet port, to deliver high channel counts at very low latency with the utmost reliability.

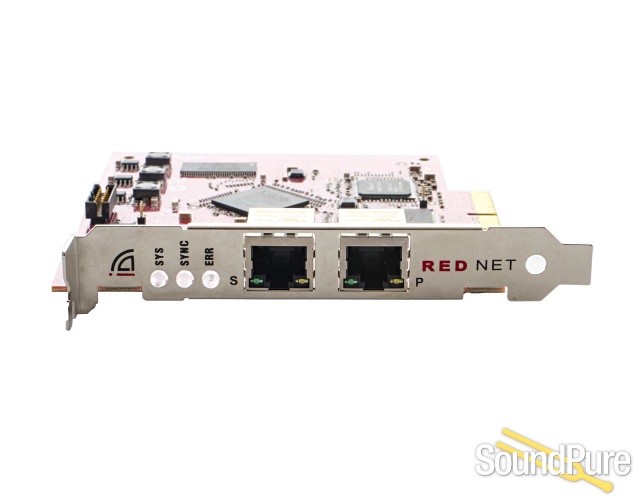

RedNet PCIeR combines extremely low latency with network redundancy, offering the best possible system performance coupled with exceptional reliability. The card requires a standard 4x PCIe slot in a Windows or Mac computer and delivers up to 128 channels I/O with very low latency. Dual RJ45 Gigabit Ethernet connectors switch automatically according to network availability and link the audio computer to the rest of the Dante audio-over-IP network.

*RedNet PCIe and PCIeR cards are not compatible with Apple Silicon processors (also known as 'M1' systems). They are, however, still compatible with Intel-based Mac computers. Please check the processor type before purchasing any new Mac systems if you're planning on using the RedNet PCIe and PCIeR cards.

Key features

• 128x128 Dante audio interface at up to 96kHz
• ASIO and Core Audio drivers
• Primary and Secondary Ethernet ports provide seamless network redundancy
• Remote signal metering through RedNet Control
• AES67 Compliant
• 64x64 performance at 176.4kHz and 192kHz
• Very low latency (approximately 1.6ms round trip with RedNet analogue I/O at 96kHz)
• Compatible with Thunderbolt expansion chassis
