From Focusrite

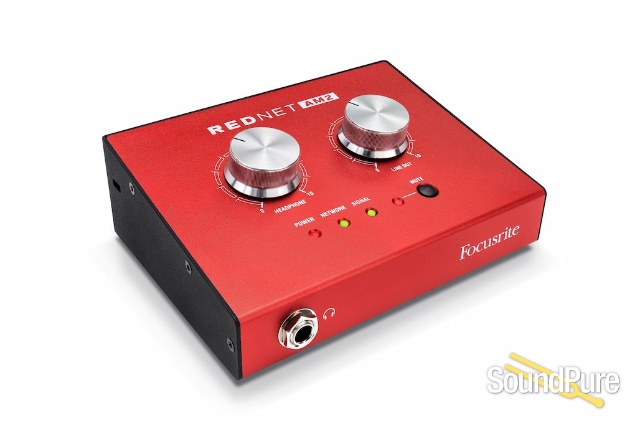

RedNet AM2 is a compact, Power-over-Ethernet (PoE) -supplied stereo analogue output device for any Dante audio-over-IP network. Featuring a powerful headphone amp, capable of driving both high and low impedance headphones, RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.

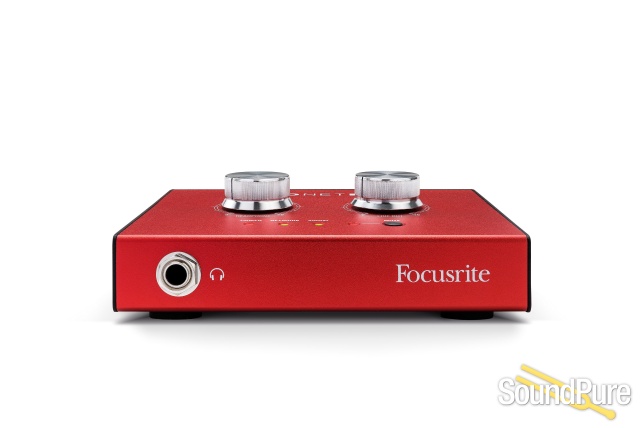

A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments. The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer's fingertips on a stand. Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2.
Features:
- Stereo line output and headphone for Dante audio-over-IP networks
- Power-over-Ethernet supplied: IEEE 802.3af compliant
- Up to 24-bit, 96kHz sampling rates
- Robust steel and aluminium chassis
- Powerful headphone output even with high-impedance headphones
- Up to 24dBu line output levels
- Independent level control of headphone and line outputs
- Mute switch for line output
- Mic stand mount
- Kensington security slot
- Integrated network switch allowing daisy-chaining of network devices
- Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
- AES67 compliant
LINE LEVEL OUTPUTS
0 DBFS Reference Output Levels
18 or 24dBu (switchable)
Frequency Response Output
20Hz - 20kHz ±0.05dB
THD N Output
<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
Dynamic Range
120dB A-weighted (typical), 20Hz - 20kHz
CROSSTALK
Output To Output
<-100dB unweighted, 20Hz - 20kHz; -20dBFS input
HEADPHONE OUTPUT
0 DBFS Reference Levels Headphones
19dBm
Headphone Frequency Response
20Hz - 20kHz ±0.05dB
Headphone THD N
<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
Headphone Dynamic Range
118dB A-weighted (typical), 20Hz - 20kHz
Output Impedance
5O
Headphone Impedance
32O - 600O
DIGITAL PERFORMANCE
Supported Sample Rates
44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources
Internal or from Dante Network Master
Minimum Latency
1ms
FRONT PANEL CONNECTIVITY
Headphone Outputs
1 x 1/4" stereo jack
Line Outputs
2 x Male XLR
PSU (PoE And DC)
1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
Network
Green LED: Indicates device is network master or network slave, shows valid network lock
REAR PANEL CONNECTIVITY
TOP PANEL INDICATORS
Power
LED illuminates Green when PoE is connected and Red when DC power is connected
Signal
Signal indicator LED for both network input channels
Mute
Red LED
Control Functions
2 x Pots
DIMENSIONS
Height (Chassis Only)
48mm/ 1.89"
Height (Inc. Pots And Feet)
58mm/ 2.28"
Width
140mm/ 5.51"
Depth (Chassis Only)
106.5mm/ 4.19"
Depth (Inc. Connectors)
116mm/ 4.57"
WEIGHT
Weight
0.81kg
POWER
Power Over Ethernet (PoE)
Complies with IEEE 802.3af class 0 Power-over-Ethernet standard
DC Power Supply
1 x 12V 1.2A DC Power Supply
Power Consumption
PoE: 11.0W - DC: 9.8W
Operating Temperature
Operates at up to an ambient temperature of 50 degrees Celcius
