16x16 AES3 I/O With Dual PSUs

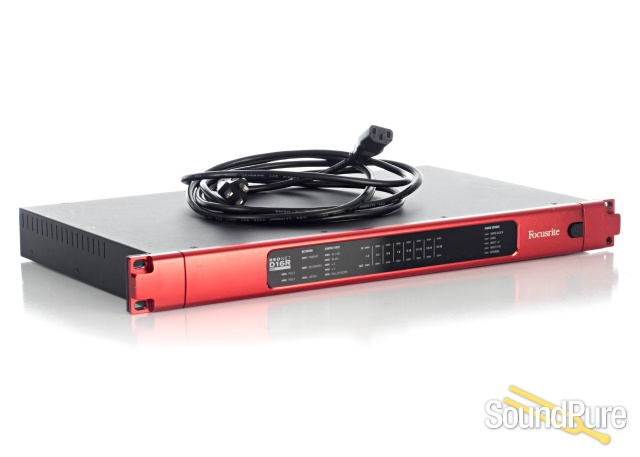

RedNet D16R is a 1U, 16x16 AES3 interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D16R is the ideal choice for providing AES3 I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. Perfect for bridging between digital consoles, power amplifiers or any other AES3-equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source.
Two rear-panel DB25 connectors wired to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connectors allows flexibility in cabling choice for one pair of I/O. Additional RCA connectors allow the connection of consumer S/PDIF equipment. All external audio inputs include sample rate conversion, further reducing cabling and clocking complexity. Word Clock I/O on BNC connectors allows external devices to clock to RedNet D16R, or alternatively allows RedNet D16R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.
Features
♦ 16x16 AES3 I/O for Dante audio-over-IP networks
♦ Up to 24-bit, 192kHz sampling rates with sample rate conversion
♦ AES67 compliant
♦ Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
♦ Flexible input options: DB25, XLR, RCA
♦ Word Clock I/O and DARS input for increased flexibility
♦ Combined digital I/O to AES59 standard on DB25 connectors
♦ Comprehensive front-panel metering and indicators
♦ Remote monitoring software with powerful graphic user interface
INPUT SAMPLE RATE CONVERTORS
- Sample Rate Range
- 32 to 216 kHz
- Gain Error
- 0.3dB
- Dynamic Range
- > 138dB (-60 dBFS method)
THD N
< -130dB (0.00003); 0 dBFS input
- Latency
- 11 to 45 samples (network and input sample rate dependent).
DIGITAL PERFORMANCE
- Supported Sample Rates
- 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
- Clock Sources
- Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master
REAR PANEL CONNECTIVITY
- Channel Count
- 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
- Input And Output

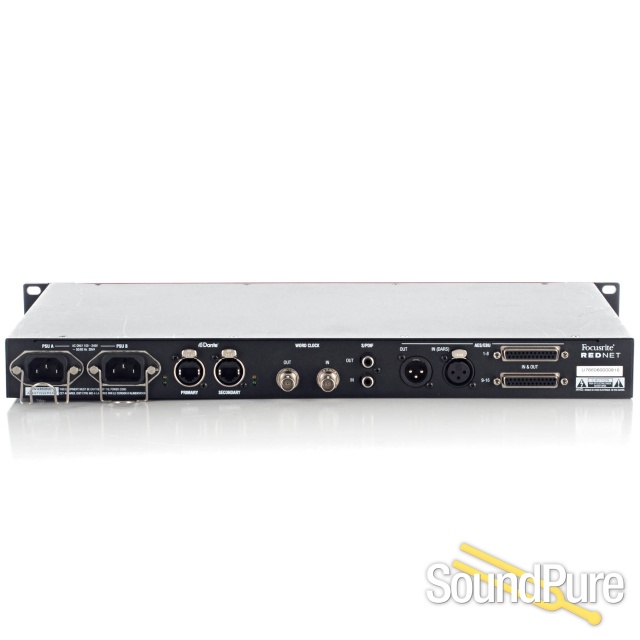

- 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
- Alternate Input (Optional DARS)
- 1 x Female XLR (replaces DB-25 channels 1-2)
- Alternate Output
- 1 x Male XLR (duplicates DB-25 channels 1-2)
- Input
- 1 x RCA phono socket (replaces DB-25 channels 3-4)
- Output
- 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)
PSU
2 x IEC Inputs with retaining clips
- Network
- 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
- AES/EBU Channel Count
- 16 x 16 AES/EBU channels

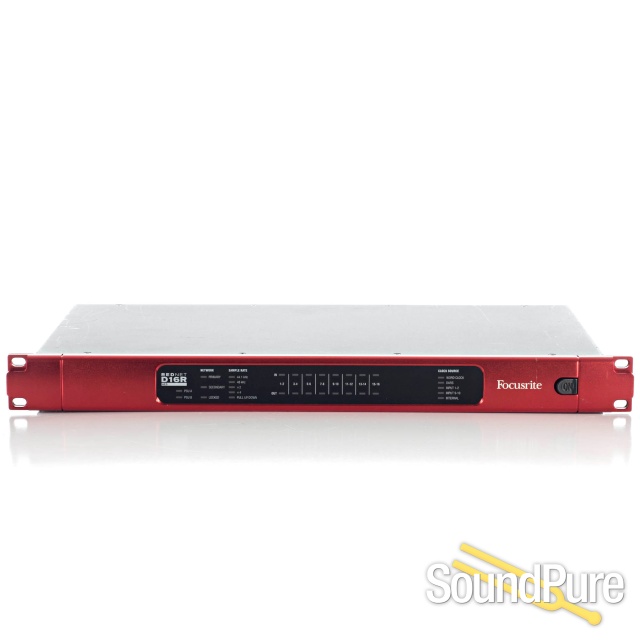

FRONT PANEL INDICATORS
- Primary PSU (A)
- Green LED. Illuminates when an AC input is applied and all DC outputs are present.
- Secondary PSU (B)
- Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Sample Rate
- Orange LED for each
- 44.1 kHz, 48 kHz, x2, x4.
- Pull Up/Down
- Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
- Signal Indicators
- 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
- Secondary Network
- Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked
- Green LED. When unit is network slave, shows valid network lock
Clock Source
- Orange LED for each
- Internal, Word Clock, DARS, Input 1–2 and Input 9–10
NETWORK MODES
- Redundant
- Allows unit to connect to two independent networks
- Switched
- Connects both ports to integrated network switch allowing daisy-chaining
DIMENSIONS
- Height
- 44.5mm/ 1.75"
- Width
- 482.6mm/ 19"
- Depth
- 263mm/ 10.35"
WEIGHT
- Weight
- 3.84kg
POWER
- Power PSU
- 2 x Internal, 100-240V, 50/60Hz, consumption 30VA
HEAT PERFORMANCE
- Operating Temperature
- Operates at up to an ambient temperature of 50 degrees Celcius
