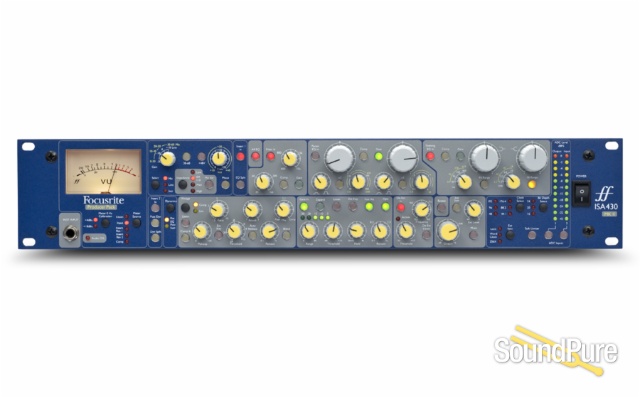

Focusrite ISA430 MKII Producer Pack Channel Strip  From Focusrite

This channel strip has it all: Focusrite's renowned mic preamp, a very flexible EQ, studio-grade VCA compressor, high-quality conversion and more!

Focusrite

$2,159.00

Retail:  $2,499.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $49/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Focusrite

The ISA430 MkII brings together a set of classic Focusrite heritage elements:

  • Classic Focusrite ISA transformer-based mic pre with variable input impedance
  • Versatile equalisation including two dual-range parametrics, HPF and LPF
  • Dual-mode compressor with both VCA and optical circuitry
  • VCA-based expander/gate with "hysteresis" setting to avoid chattering
  • Phase-cancellation de-esser for more natural processing
  • Optional 192kHz/24-bit A-D conversion with soft limiter

Together, they form a comprehensive channel strip with impeccable specifications. But the ISA430 MkII is much more than that. The four main elements – mic pre, EQ, Dynamics and A-D converter – can be accessed individually and each used as a separate processor. Elements can be chained and patched together via multiple inserts and in different orders to form a variety of signal paths to meet every processing requirement. Used as either a comprehensive channel strip or as separate processors, the ISA430 MkII offers you the pinnacle of classic Focusrite analogue processor design and performance. There’s simply nothing quite like it.

Classic Focusrite ISA Mic Pre

The mic pre features a transformer-based design, with variable input impedance from 600 to 6800 ohms – so it will get the best out of any microphone, from modern condensers to the most finicky ribbon types. Depending on your choice of setting, you can maximise flatness and transparency or deliberately bring out the special features of your chosen mic, such as a presence boost or high/low-end rolloffs. And there’s a special “air” button that brings in an inductor to enhance the effect without needing additional EQ.

Versatile Dual Mode Compressor

The compressor section features both a transparent VCA circuit, which can be used to apply significant amounts of compression without audible artefacts, and a vintage optical design that brings with it the characteristic feel of a traditional compressor. Optional auto release and “blend” control add to the section’s flexibility, the latter by allowing mixing of the original signal with the compressor output, maintaining as much as possible of the natural dynamics without losing the benefits of compression.

The Gate/Expander section is based on a transparent VCA design and includes a “hysteresis” setting that stops the gate chattering on difficult signals, while the de-esser is based on phase cancellation at the chosen frequency, rather than being compressor-based, leading to improved naturalness of sound.

Focusrite ISA 110 Derived EQ

The EQ section is exceptional, with HPF and LPF, two separate bands of parametric EQ (each with normal and x3 ranges for maximum versatility), and HF and LF shelving sections. In addition, individual parts of the equaliser can be switched into the side chain of the dynamics sections, allowing frequency-conscious compression, gate keying and other effects, while a “Listen” button allows you to audition the side-chain so you can tweak the EQ to get exactly the dynamics effect you’re looking for.

Class-Leading A-D Conversion

And finally, there is an optional A-D converter card which adds two channels of flawless 24-bit A-D conversion at sample rates up to 192kHz and with 120dB of dynamic range, preceded by a soft limiter to prevent clipping. Like the other parts of the ISA430 MkII, it can be used as part of the channel strip or as a completely independent unit.

The Most Versatile Channel Strip

Bring these elements together and you have the most versatile analogue channel strip available, with uniquely flexible patching and routing in addition to four powerful processors that can be used completely independently. And all with that unique Focusrite heritage sound. The ISA430 MkII. Nothing sounds like it – in so many ways.

The ISA 430 MkII features Focusrite’s ultimate heritage sonic signature including transformer-based mic pre, versatile EQ with two dual-range parametrics, compressor with both transparent VCA and vintage optical circuitry, expander/gate, phase-cancellation de-esser and optional 192kHz/24-bit 2-channel A-D conversion.

Transformer-based Mic Pre with Variable Impedance

The mic pre suits almost all mics including vintage and ‘difficult’ models such as ribbons. Variable impedance can be set for transparency or to highlight special features of the mic, such as presence bumps and rolloffs. Switchable additional inductance adds “air” without EQ.

Four Units in One, Independently Accessible

Use the mic pre, EQ, Dynamics and A-D converter independently, or route them to build powerful simultaneous processors. Re-order different sections to create multiple alternative signal paths.

Powerful Processing Options

Insert HPF, LPF and EQ into the Dynamics sections for frequency-sensitive processing – Listen function lets you audition the side-chain to fine-tune the effect.

Control Over Dynamics

Expander/gate features “hysteresis” setting to avoid chattering on difficult signals. De-esser is based on phase cancellation at the chosen frequency, for more natural sound.

Focusrite

About Manufacturer

The Focusrite brand was established way back in 1985 and the founding principles of the company were to develop products that sounded more musical, in addition to just measuring well - today,we still carry these founding principles forward in our class-leading and award-winning designs. We measure our success by the success of you, our clients, and you will find Focusrite product prominent in professional and project studios throughout the world. Based just outside of London, we work with the best design talent throughout the world to bring you the tools to enhance the way you work. Our product is made with pride and principle in a highly automated ISO 9002 factory with significant level of test by engineers who themselves are musicians and understand the part our product plays in your process. Our commitment: We understand that how your project sounds to you is your most important concern. We are totally dedicated and focused on designing and manufacturing product that will enable you to achieve this goal. Our design goals are that product should be easy to use, logically designed, give class-leading performance and give years of predictable performance. We strive to continuously improve ourselves in these respects - our principal concern is meeting your expectations. Our focus on quality is all consuming - it rules our daily life.

Specifications

Line

  • Gain Range: +10dB to +40dB continuously variable
  • Input Impedance: >1M Ohm

Mic

  • Gain Range: 0 to +60dB in 10dB steps
  • Input Impedance: Variable as follows: 600 Ohm, 1k4 Ohm, 2k4 Ohm, 6k8 Ohm
  • EIN: -128dB with 150 Ohm terminating impedance at 60dB of gain
  • Noise: -97dBu
  • THD: 0.001% with -20dBu 1kHz input and 20Hz-22kHz bandpass filter

Compressor (VCA mode)

  • Threshold Range: -28dB to +12dB
  • Ratio: 1.5:1 to 10:1
  • Slope: Soft knee
  • Attack: 100µs to 100ms
  • Release: 100ms to 7s, variable or auto (program dependent)

Compressor (Vintage Opto mode)

  • Threshold Range: -28dB to +12dB
  • Ratio: 1.5:1 to 5:1 in Comp mode, 5:1 to 20:1 in Lim mode
  • Slope: Soft knee in Comp mode, Hard knee in Lim mode
  • Attack: Fixed
  • Release: Fixed

EQ

  • Low Pass Filter: 18dB/oct from 400Hz to 22kHz
  • High Pass Filter: 18dB/oct from 20Hz to 1k6Hz
  • Parametric section is comprised of: Low-mid & Hi-mid parametric, each with continuously variable boost/cut with centre detent, frequency sweep control with two ranges, and fully variable Q. Low-mid frequencies 40Hz to 400Hz (120Hz to 1k2Hz when x3 is pressed). Hi-mid frequencies 600Hz to 6kHz (1k8Hz to 18kHz when x3 is pressed)
  • Shelving section is comprised of: High Frequency Shelf: The frequency range steps are 1.5kHz, 3.3kHz, 6.8kHz and 15kHz (2.2kHz, 4.7kHz, 10kHz and 18kHz when Hi Range is engaged). Low Frequency Shelf: The frequency range steps are 20Hz, 56Hz, 160Hz and 460Hz (33Hz, 95Hz, 270Hz and 655Hz when Hi Range switch is engaged)

Gate

  • Threshold Range: -40dB to +10dB
  • Gate Range: 0 to -80dB
  • Attack: switched fast or slow
  • Release: 100ms to 5s
  • Hold: 20ms to 4s
  • Expander Ratio: 0 to 5:1

De-Esser

  • Threshold Range: 22dB
  • Frequency Range: 2k2 to 9k2
  • Ratio at centre frequency: 2:1

Limiter

  • Threshold Range: 20dBu
  • Ratio: infinite (Brick Wall)
  • Attack: Frequency dependent

Weight

  • 7.58kg
  • 16.7Ibs

Dimensions

  • 484mm (W) x 85mm (H) x 250mm (D)
  • 19" (W) x 3.5" (H) x 9.8" (D)

Optional A-D Converter Specifications

Output formats (All channels)

  • AES/EBU (5V / 110 ohms), S/PDIF (0.8V / 75 ohms)
  • ADAT lightpipe (SMUX I/II/IV)
  • S/PDIF lightpipe

Bit depth

  • 24 bits

AES3 output jitter

  •  <:500ps, 50Hz-100kHz
  •  <:400ps, 700Hz-100kHz

Frequency response

  •  All ranges: 20Hz–20kHz ± 0.3dB (50Hz–16kHz ± 0.1dB)
  •  176.4kHz, 192kHz : 16Hz–55kHz ± 0.5dB

THD+n

  •  –117.5dB A-weighted, audio band-limited, 1kHz, -60dB FS input
  •  Maximum 0.004% at –1dB FS (1kHz)
  •  Minimum 0.0008% at –13dB FS (1kHz)

Idle channel noise

  •  113.5dB at 44.1kHz, CCIR-weighted, full bandwidth

Crosstalk

  •  –109dB at 12kHz

Downloads

Action

Name

Description

ISA430 MKII Manual
