From Focal Professional Studio Monitors
As well as new speaker drivers (a 5” midrange and a 10” subwoofer) with high efficiency and power handling, the Trio11 Be monitor enjoys all of Focal's very latest technologies when it comes to acoustics and electronics: TMD and NIC technologies; optimised vents that promote dynamic control and perfect bass definition; high excursion, enabling even more linearity of the subwoofer...
Thanks to its class G amplification, Trio11 Be delivers a high SPL (118dB at 1m) and offers a great versatibility of use and installation configurations in nearfield AND midfield applications. A key asset, always coming along with an extremely precise sound reproduction and stereo image.
With an extended bandwidth (30 Hz-40 kHz), this loudspeaker is also composed of a 3-way monitor and a 2-way monitor, just like Trio6 Be, which lets you check the mix transfer sound quality thanks to FOCUS mode.
KEY POINTS
- High SPL: 118 dB @ 393/8'' (1m).
- FOCUS Mode: two monitors in one with remote switchover.
- Pure Beryllium inverted dome tweeter: very low directivity, linearity, dynamics.
- ‘W’ composite sandwich cone on woofer and subwoofer: neutral sound, no distortion.
- Bass, mid-bass and treble settings on rear panel: optimum acoustical integration.
- Optimised decoupling of the midrange speaker driver thanks to silent blocks.
- Ultra-low distortion and noise.
ADJUSTABLE PLATE
The aluminium plate incorporating the tweeter and woofer is adjustable through 360°, in 90° increments, so the Trio11 Be can be used either vertically or horizontally. This function makes it possible to optimise the monitor's performance based on its positioning in the room and the latter's acoustics.
FOCUS mode
2 MONITORS IN 1
Trio11 Be combines two monitors in a single enclosure.
The 3-way monitor provides a flawless control of the entire audio spectrum (30 Hz – 40 kHz).
The 2-way monitor, with a frequency response of 90 Hz to 20 kHz, makes it possible to check the transfer quality of mixes on systems with a limited frequency response in the bass (televisions, computers, cars, etc.).
Electronics
Inputs
Type/Impedance:Electronically balanced / 10KOhms
Connectors:XLR
Sensitivity:Adaptable, +4 dBu or -10 dBv
Bass:300W, class G
Midrange: 150W, class G
Treble: 100W, class AB
Power supply
Local supply: 230V (1.6A T fuse) - 115V (3.5A T fuse)
Wiring: Connection Detachable IEC inlet power cord
Indicators and controls

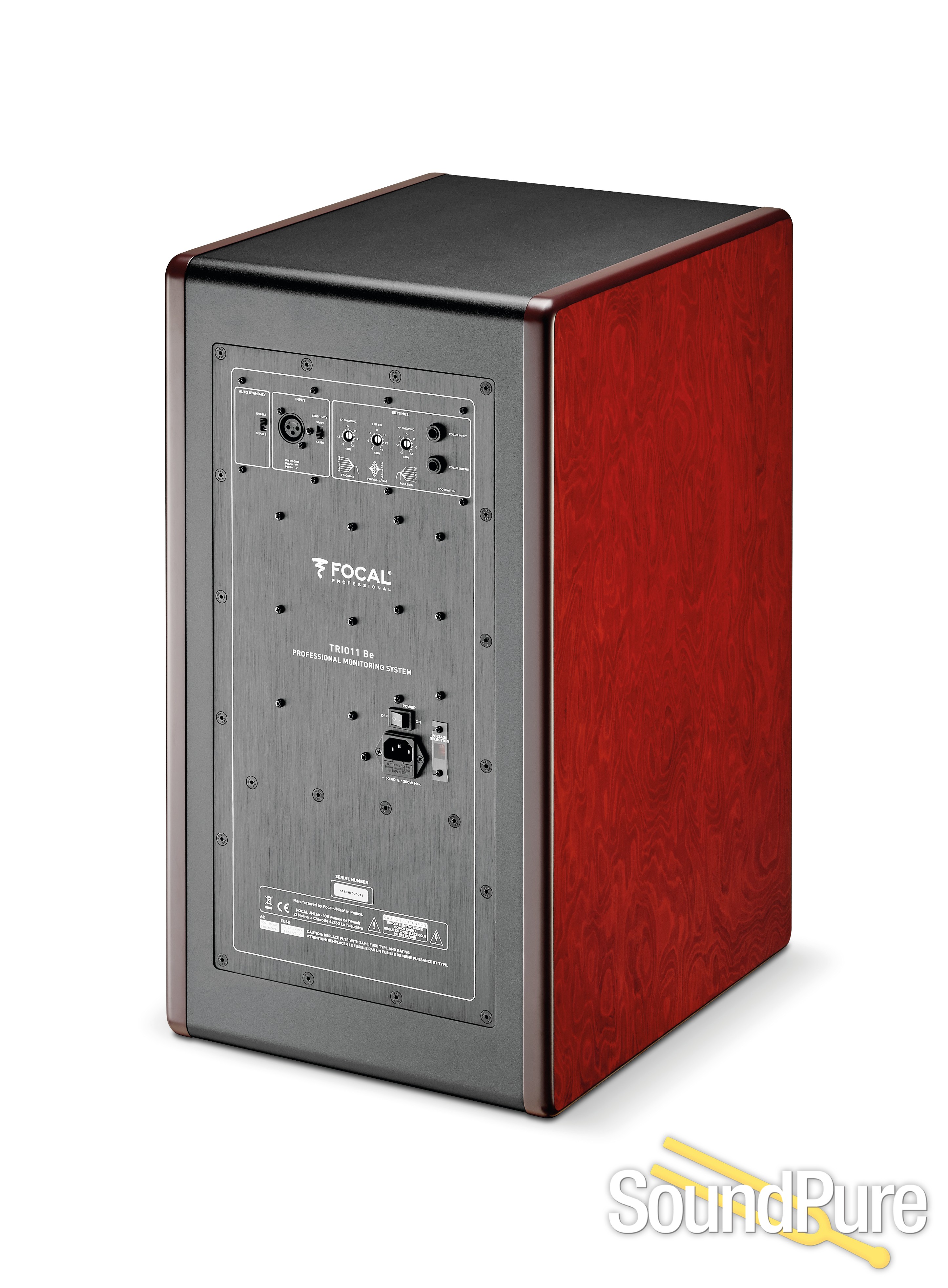

Rear panel: Input sensitivity selector (+4dBu/-10dBV)
Low frequency shelving (+/- 3dB from 35 to 250Hz)
High frequency shelving (+/- 3dB from 4.5 to 40kHz)
Low-mid EQ frequencies (+/- 3dB to 160Hz, Q factor = 1)
FOCUS input / FOCUS output
LEDFocus power on, clipping and default LED on front panel
Transducers
Subwoofer: 10W96701D
Focal 25cm speaker driver with ‘W’ composite sandwich cone
Médium: 5W04701
Focal 13cm speaker driver with ‘W’ composite sandwich cone
Tweeter: TB872
Focal 1" pure Beryllium inverted dome tweeter
Cabinet
Construction: 13/16 and 13/16" (21mm and 30mm) panels w internal braces
Finish: Natural veneering side panels Dark red burr ash, black body
Dimensions: 25" x 139/16" x 173/4" (635 x 345 x 450mm)
(HxDxW)
Weight: 82.2lbs (37.3kg)
