Sound Pure's Take
Condiition: Used, Good

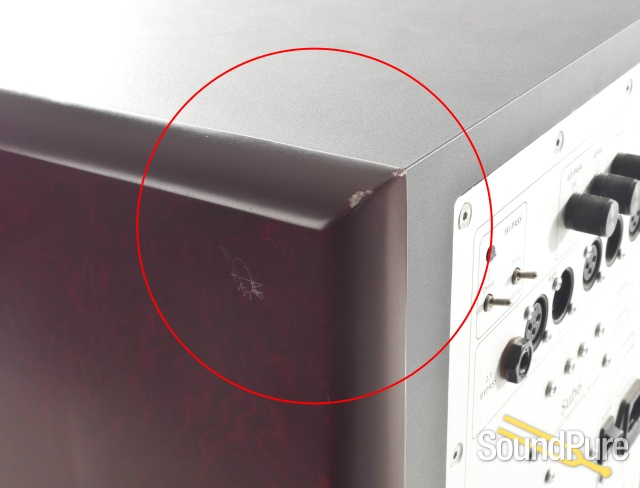

Subwoofer is 100% functional, some minor signs of age (see pictures). 100/75hZ switch (for highpass filter) has a slightly oxidized switch, requires that you manipulate the switch to fully engage. Has been set to 75hZ and works perfectly at that setting. Also works in the 100hZ setting, just requires that you manipulate the switch to engage fully. Once set for your room, this setting does not need to be changed.
From Focal Professional Studio Monitors

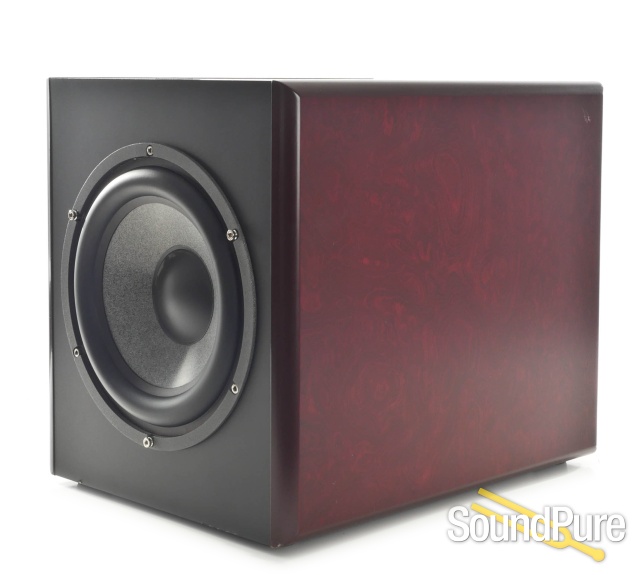

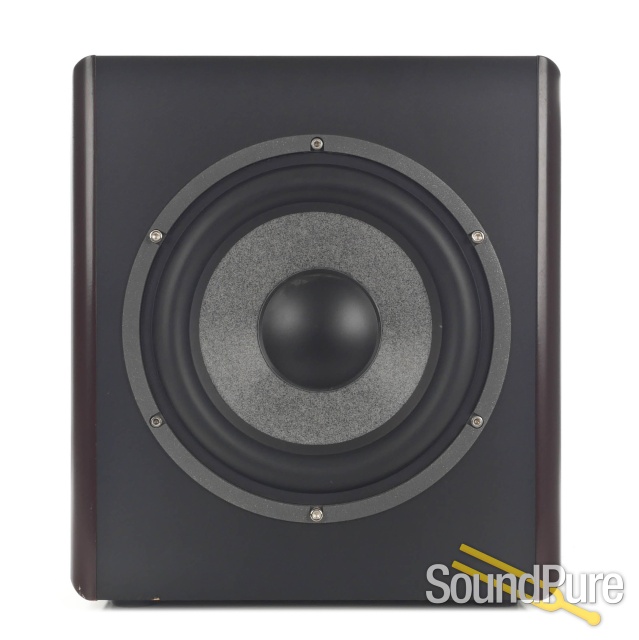

The Sub6 is a large volume cabinet design, equipped with an 11" woofer and a rear laminar port. This configuration guarantees bass linearity whatever the intended SPL. The control board is extremely versatile, with connectivity which allows a 2.1, 2.2 and multichannel use via the L/R inputs and outputs and the LFE.
The numerous settings such as the high-pass crossover dedicated to monitors, the adjustable phase and level control provide optimum coupling with the Solo6 Be and the Twin6 Be monitors.
And finally, a small, but important point: the footswitch input. It enables one to connect a pedal to deactivate the subwoofer and the high-pass crossovers on the outputs that supply the monitors. This simplifies and greatly improves control during the different stages in monitoring.
Specifications
| Frequency response : | 30Hz - 250Hz |
|---|---|
| Maximum SPL : | 116dB SPL (peak @ 1m) |
| Input : | Right, left, LFE Electronically balanced, 10 kOhms XLR 3 points socket Adjustable |
| Outputs (towards speakers) : | Type/Impedance: Electronically balanced / 50 Ohms - Connector: XLR 3 points plug |
| Amplification : | 350W rms, BASH® technology |
| Signal internal treatment : | Subwoofer section: Mono right/left summation LFE + mono low-pass 24dB/octave Phase adjustment Polarity selection switch Switch high-pass filter, cut-off frequency selection Speaker section : 24 dB / octave |
| Electric supply : | Local supply wire: 230V (1.6A fuse) or 115V (3.5A fuse) Connection: removable IEC supply wire |

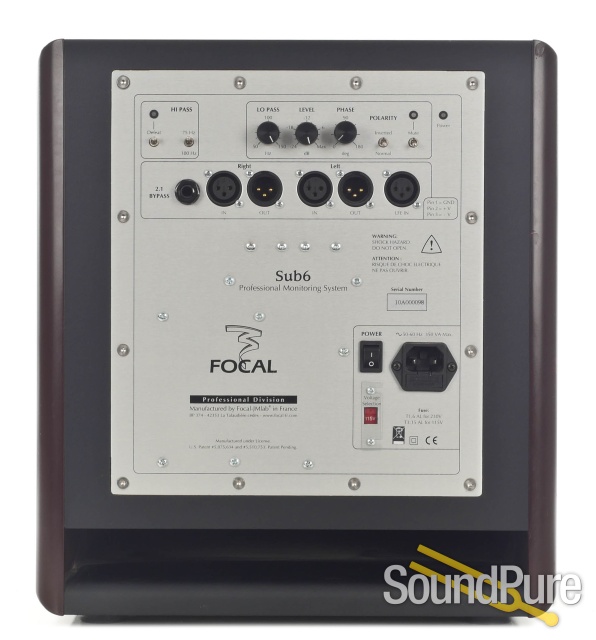

| Visualization and control : | Adjustable subwoofer level Low-pass cut-off frequency setting Phase adjustment Polarity adjustment Subwoofer switch (mute) 2.1 "Bypass" (external remote contol) High-pass frequency selection Releasable high-pass |
| warning light : | Power on LED, Subwoofer switch (mute), Released high-pass |
| Subwoofer : | 11W7670, 10-5/8" (27cm) Focal "W" composite sandwich cone driver |
| Box : | 7-1/2" (19mm) MDF panels |
| Finish : | Dark red natural veneering side panels, black body. |
| Dimensions (HxWxD) : | 14-15/16 x 13-9/16 x 17-5/16 " (380 x 344 x 440mm) |
| Weight : | 50.7lb (23kg) |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.
