From Focal Professional Studio Monitors

The Sub6 professional subwoofer features an 11" (27 cm) "W" composite sandwich cone driver integrated into a large rear laminar port cabinet. This design guarantees bass linearity whatever the SPL level required. To fine-tune the power level, Focal engineers chose BASH® technology, which offers the sound quality of Class AB with the efficiency of Class D amplifiers.

OPTIMAL INTEGRATION

Sub6 has been developed for optimum acoustic coupling with Focal loudspeakers. It features a wide range of adjustments, including a stereo high-pass crossover (75 Hz - 100 Hz) dedicated to left and right speakers, a configurable low-pass filter with mono summation, a phase inverter, an adjustable phase, and a MUTE switch. A wealth of connectors allows 2.1, 2.2 and multichannel use via L/R inputs and outputs and LFE input.

FOOTSWITCH

The "plus" that makes all the difference: the footswitch input allows you to plug in a pedal to cut the subwoofer and deactivate the high-pass crossover on the outputs feeding the monitors. This makes it possible to compare listening in 2.1 (Sub6 filtered + monitors filtered by the Sub6) and 2.0 (subwoofer deactivated + full-range monitors). The comparison is made instantly, simply by pressing the footswitch, and without the need to move.

Sound Acoustics
  • Product type: Monitoring grave box
  • Loudspeakers: 11'' W membrane
  • Frequency response (+/- 3dB): 30 Hz - 250 Hz
  • Maximum SPL (peak@1m): 116 dB
Sound Electronics
  • Inputs :
  • Left,Right,LFE
  • XLR: symmetrical 10 kOhms
  • Variable
  • Mid-range and low frequency amplifier: 350 W, class G

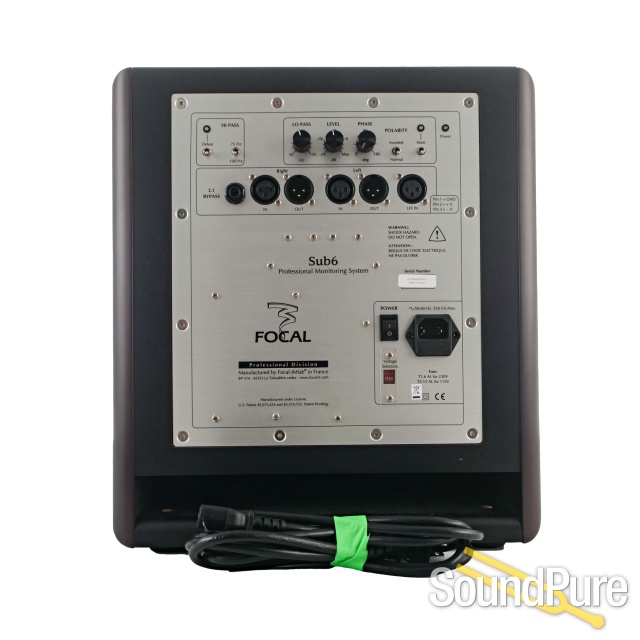

  • Indicators and controls :
  • Sub level (sensitivity) adjustment
  • Lo-passe frequency adjustment
  • Phase adjustment
  • Polarity switch
  • Mute
  • 2.1 bypass (controlled by external footswitch)
  • Hi-pass frequency selection
  • Hi-pass defeat
Design
  • Height: 38 cm / 15 in
  • Width: 34.4 cm / 13.5 in
  • Depth: 44 cm / 17.3 in
  • Weight: 23 kg / 50.7 lb

Warranty

This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.

Returns

Try Before You Buy: take it home, commit only when it's right. Program details →
