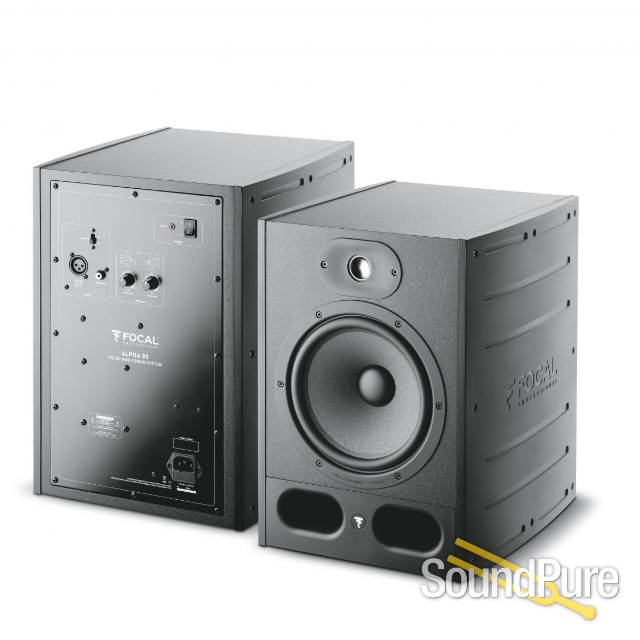

From Focal Professional Studio Monitors
Flagship of the line, Alpha 80 is particularly ideal for producing music which is rich in bass or which requires high power reserves.
This model is composed of a 8” (21cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1" (25mm) aluminum inverted dome tweeter. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB).
Features:
- Low directivity: keeps the same sound throughout the room
- Damping and rigidity: neutrality, no distortion
- Tonal balance is identical at low and high volumes, low sensitivity to the wall effects
- Connect up to 2 audio sources
- Optimal acoustic integration
- Reduced power consumption
Available May 2014
TECHNICAL SPECIFICATIONS
- Frequency response (+/- 3dB)
- 35Hz - 22kHz
- Power
- 140W (100W+40W)
- Maximum SPL
- 109 dB SPL (peak @ 1 m)
Electronic section
- Inputs
- XLR balanced 10 kOhms
- Connectors
- RCA unbalanced 10kOhms with sensitivity compensation
- LF amplifier stage
- 100W, class AB
- HF amplifier stage
- 40W, class AB
Standby mode
- Standby
- After about 30 minutes without using the monitor
- Activation of the monitor
- By signal detection >3 mV
Power supply
- Mains voltage
- 220-240V (fuse T1.6AL/250V)
or 100-120V (fuse T3.15AL/250V)
The voltage can not be modified
- Connection
- IEC inlet and detachable power cord

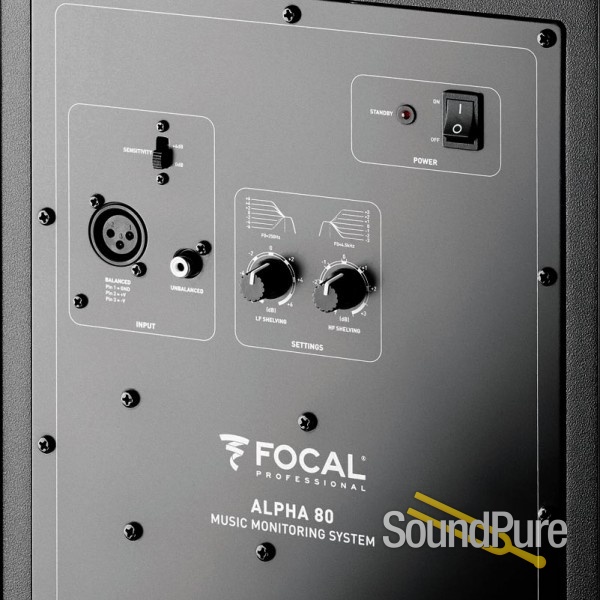

User controls
- Sensitivity
- Adjustable, 0 or +6dB
- LF shelving (0 - 300Hz)
- Adjustable, +/-6dB
- HF shelving (4,5 - 22kHz)
- Adjustable, +/-3dB
- Power ON/OFF
- Power ON/OFF switch on rear panel
- Standby mode power consumption
- <0,5W
- Indicators
- Power ON/OFF LED - Standby LED
Transducers
- Woofer
- 8" (21 cm) drive unit. Polyglass cone
- Tweeter
- 1" (25 mm) drive unit. Aluminium inverted dome
Cabinet
- Construction
- 0.6" (15 mm) MDF
- Finish
- Vinyl and black painting
- Dimensions with 4 rubber pads (HxWxD)
- 15.6x11.3x13.7" (397 x 287 x 348 mm)
- Weight
- 28.2lb (12,8 kg)
