Sound Pure's Take
Condition: Used, Excellent
Fender's ultra-portable, ultralightweight jazz machine lets you dial in your tone at home, at the gig or in the studio.
From Fender
This highly portable, great sounding amp delivers the tone modern Jazz guitarists crave…with unprecedented features and power, available for the first time via Fender’s proprietary design. Now you can carry “your sound” with you to the recording session or gig, quickly & easily; and enjoy the same quality tones and effects while practicing with headphones. Integrated for use with the Jazzmaster Ultralight Enclosure.
Your new Jazzmaster™ Ultralight loudspeaker features a Jensen® 12" (30.5 cm) speaker with a neodymium magnet, handling up to 250 watts of power. Designed to complement the Fender® Jazzmaster Ultralight amplifier, the Ultralight speaker cabinet is constructed from quality Italian poplar plywood. Please read these instructions and your amplifier manual before making connections.
2007
- Serial Numbers
- Head=M1490002, Cabinet=1473934

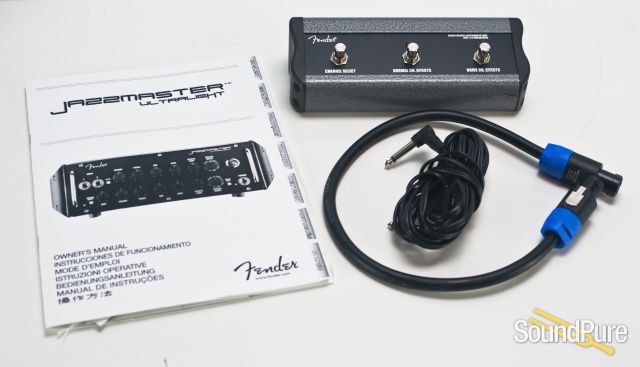

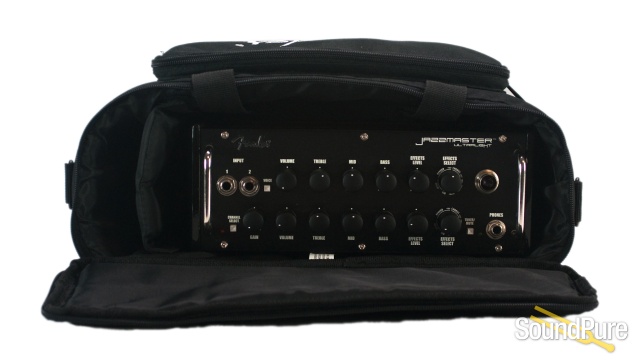

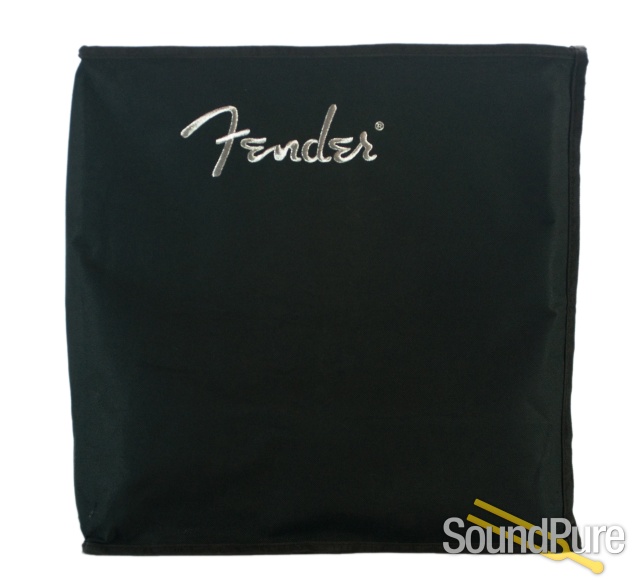

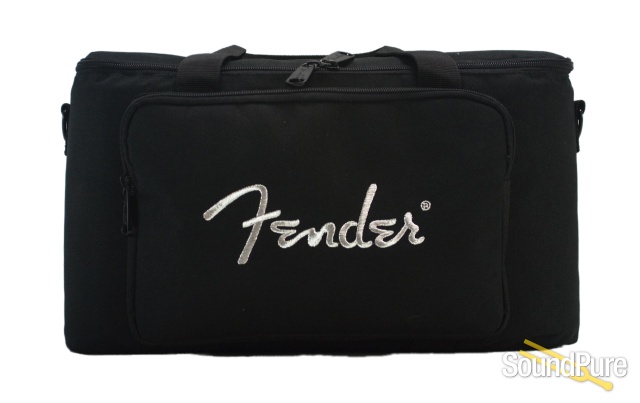

Includes cabinet slip cover, shoulder bag carrying case for head, foot switch, power cord and Speakon® speaker cable.

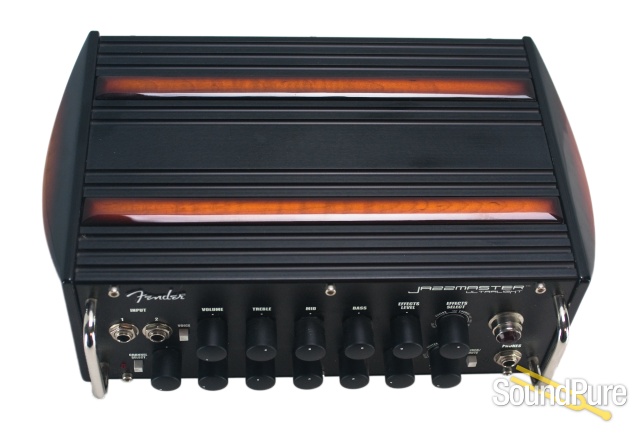

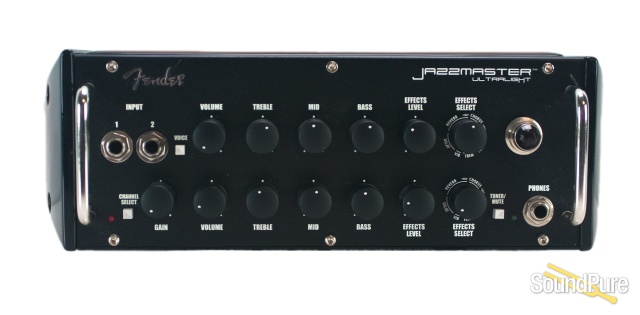

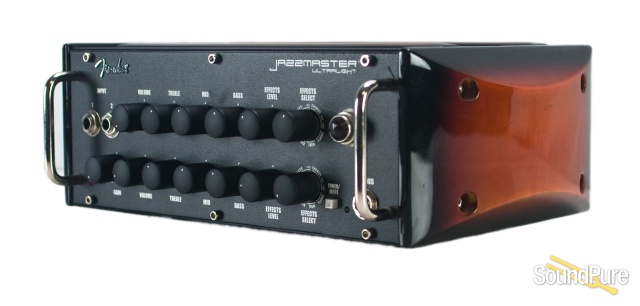

- Head
- 250 Watt Output Power
Weighs only 7.6 lb (3.5 kg)!
Normal channel—wide-range EQ and “Twin Voicing” filter
Drive channel—subtle to intense tube-emulated overdrive inspiring Swing, Blues, Fusion tones
16 hand-crafted DSP effects selections for each channel
Professional speaker-emulated Line Out—Level control and
Ground Lift
Switchcraft HPC® speaker output—Speakon® compatible, superior power transfer and locking connectors
Voltage Selector—plug-in worldwide (approved power cord required)
Premium solid Maple wood top & side panels
Invisible cabinet docking system (patent pending)—magnetically secures your amplifier on top of a Jazzmaster
Ultralight Enclosure
Headphones output
3-button Footswitch and padded Gig bag included
- POWER REQUIREMENT
- 500W
- POWER AMP OUTPUT
- 250W into 2Ω @ 5% THD
- PREAMP INPUT IMPEDANCE
- 1MΩ (Input 1) 100kΩ (Input 2)
- BASS
- ±6dB @ 100Hz (Normal) ±4dB @ 100Hz (Drive)
- MID
- ±6dB @ 350Hz (Normal) ±9dB @ 1kHz (Drive)
- TREBLE
- ±6dB @ 10kHz (Normal) ±6dB @ 5kHz (Drive)
- FUSES VOLTAGE SELECTOR—100V-120V
- T5A, 125V
- VOLTAGE SELECTOR—220V-240V
- T2.5A, 250V
- FOOTSWITCH
- 3 button, channel select, effects on-off (064660)
- DIMENSIONS HEIGHT
- 4.25 in (10.8 cm)
- WIDTH
- 12.25 in (31.2 cm)
- DEPTH
- 8.25 in (21.0 cm)
- WEIGHT
- 7.6 lb (3.5 kg)

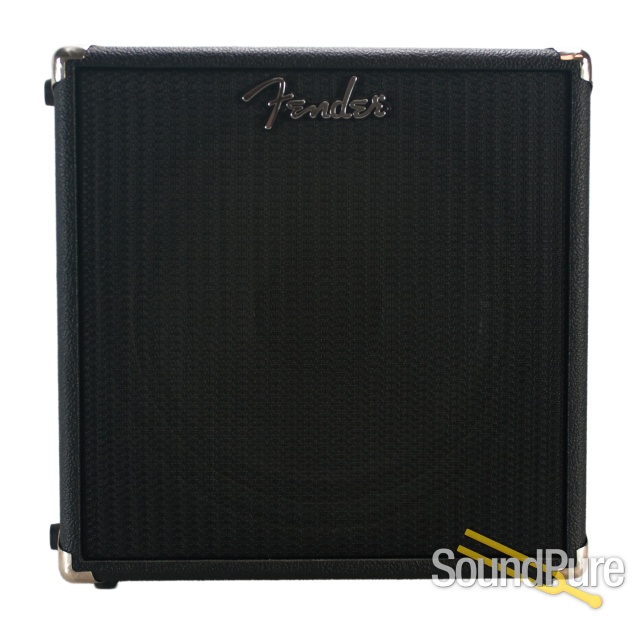

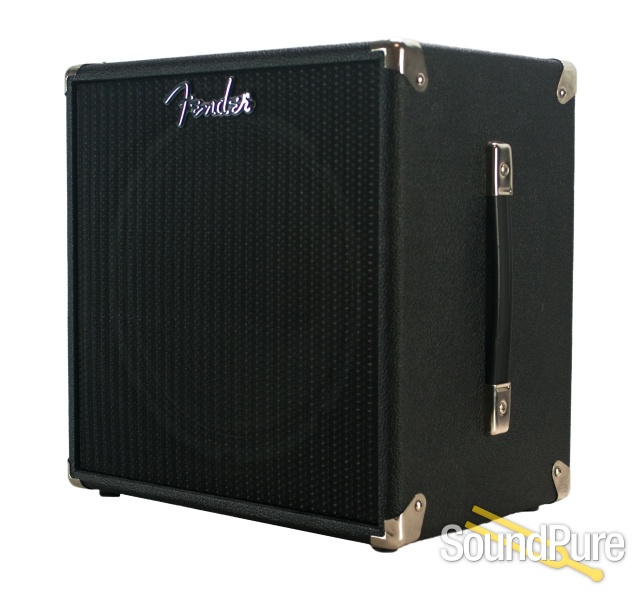

Cabinet
- SPEAKER
- One 12" (30.5 cm) Steel Frame Driver
2" (5.1 cm) Voice Coil
Neodymium Magnet
- CABINET
- 5/8" (1.6 cm) Italian Poplar Plywood
- SENSITIVITY
- 98.5 dB, 1 Watt - 1 Meter
- POWER HANDLING
- 250 Watts
- IMPEDANCE
- 2 Ohms
- CONNECTIONS
- 4-Pole Speakon® Connector using Pins 1+ and 1–
- ENCLOSURE VOLUME
- VB = 0.8 ft3 (38.7 L)
DIMENSIONS
- Height
- 15 1/4 in (38.7 cm)
- Width
- 15 1/4 in (38.7 cm)
- Depth
- 10 1/4 in (26.0 cm)
WEIGHT 16 lb (7.3 kg)
