Item selected is sold (details below). Related products available now:
Fargen MiniPlex MKII Guitar Amplifier Head From Fargen
One of the most versatile low volume boutique british amp heads on the market!
Available for Special Order
See something you like? This item is gone, but not forever. It can be special ordered, and even customized!
We can get it fast!
Because of our special relationship with Fargen we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.
Want to know when one lands?
Notify MeWant to discuss a special order?
What We Think
The Fargen MiniPlex MKII is like having three essential Mashalls in one amp. Since this is a low wattage amp and includes power scaling, it's ideal for recording and will become your favorite amp to fully rock at home without disturbing the neighbors. The ability to change tubes without re-biasing is a huge advantage as well. Flexibility is only the beginning! plug in and hear what we are talking about!
Call or Email Sound Pure for more details
Manufacturer's Description from Fargen
Fargen Mini Plex MK II Guitar Amplifier – The Ultimate Low Volume Tube Amp
The Fargen Mini Plex MKII features the ultimate English classic rock and high gain crunch tones. It pumps out quality tone on par with a 50 or 100 watt Marshall, and maintains this tone at apartment/bedroom levels. Don’t settle for poor tone as a result of running your THD/DRZ/or Marshall Power Break attenuator, which typically kills your upper harmonic content.
The Mini Plex MKII hand-wired tube amplifier delivers high-energy, cranked tube amp tone at whisper quiet volumes with a mixture of great tube amp design, world-class custom components that you won’t find anywhere else, and the amazing Kevin O’Conner Power Scaling technology. The power scaling circuit uses voltage manipulation (think variac) to control output volume and power tube overdrives without cutting high-end frequencies like an attenuator does, and allows you to run the amp anywhere from 12 watts down to below a 1/2 watt for the ultimate low volume jamming experience.
The Mini Plex MKII captures all of your favorite British high gain and classic rock tones with the help of our patented “Decade Switch” technology. The Fargen “Decade Switch” gives you 3 different classic sounds/gain structures and morphs between 3 completely different classic British preamp circuits … the JTM45, Plexi JMP and JCM 800.
About Manufacturer
Fargen Amplification was founded in 1998 as a creative outlet for an inspired, young guitarist, Ben Fargen. As his collection of gig-worn, vintage guitar amplifiers began to need servicing, he found no local tech, with the touch or the talent he demanded to service them. Armed with the internet, an ROP course in electronics, and as many books on tube amps as he could find, Ben learned the trade; hands on, from the ground up. After a year of mastering the basics, he built a few prototypes, and began gigging with them all over California. Once word got out, custom work followed, and as demand increased, stock models evolved. Now in its 9th year, Fargen Amplification has progressed from a small one man operation, into a thriving boutique company that ships, custom-built guitar amplifiers to discerning players on three continents. And nowadays, in addition to personally tuning each amp that leaves the shop, Ben also provides world tour, amp support to many of the world's most celebrated guitarists. Fargen Amplifiers emulate classic vintage tones with craftsmanship, quality and options that surpass most vintage and re-issued amplifiers. Sound Pure carries a variety of amps from the Fargen brand and can always obtain the model you want or special order custom creations.
Specifications
Fargen Mini Plex MK II Amp Features
- London Power / Power Scaling control 12 watts down to less than a 1/2 watt

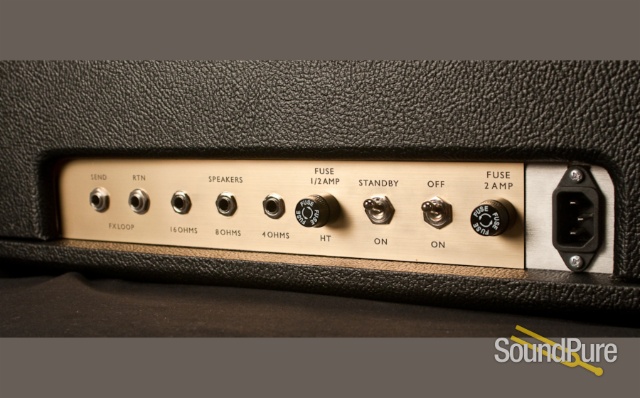

- Custom Mercury Magnetics transformers w/ 4-8-16 ohm taps
- SoZo vintage style mustard capacitors
- Dual power tube sockets for use with any octal power tube(no re-bias)
- Use EL34/KT66 /KT77/6550/6L6/5881/6V6 ECT
- The ability to mix and match any of the above tubes…(i.e.El34 + KT66)
- DC Filaments for ultra quiet operation
- 1/8″ aluminum chassis for the true vintage British amp sound
- New improved 3 position rotary decade switch that alters the circuit for true 60-70-80 Marshall Style tones. (JTM 45 / Plexi / JCM 800)
- Passive FX Loop
Specifications
- Dimensions: 25″W x 11″H x 10″D
- Weight: 25 lbs.
- Output Power: 8-12 watts
- Tube Complement: (2) 12AX7, (2) EL34
- Will also run KT66,KT77,6550,6L6,6V6,5881
- Class – Parallel single-ended class A

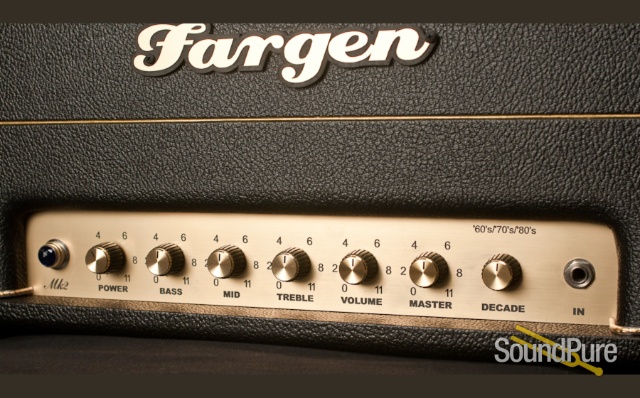

- Front Panel Layout & Equalization – Decade, Volume, Master, Treble, Bass, Mid, Power Scaling
