From Ex Machina

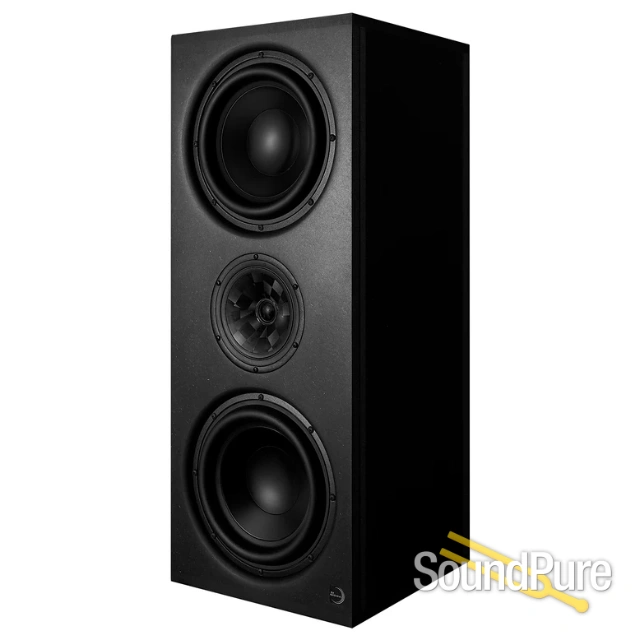

The flagship of our range, Arcturus is not merely the largest, loudest monitor we offer, it’s also the most advanced. Primarily intended for soffit-installed mains applications, it deploys the same coaxial and axisymmetric design as Quasar, but with unique twin ring radial neodymium SEAS subwoofers that offer some of the lowest distortion and most linear output we have ever seen measured. Arcturus represents the pinnacle of our R&D efforts to provide the ultimate in clarity, headroom and depth.
Flagship SEAS Extreme Series Subwoofers
Ultra-low distortion, exceptionally linear design featuring a unique split-gap twin ring radial neodymium motor.
Exceptional symmetry and motor strength even at extreme excursions.
Simply the best 26cm subwoofers we have ever heard or measured.
Coaxial Midrange/Tweeter
Bleeding edge Composite Sound Metamodal TeXtreme diaphragms: ultralight, ultra-stiff carbon fabrics with optimized fiber geometries to actively control and suppress resonances.
Mathematically optimal midrange waveguide shape, underhung surround, and optimized point source acoustic center alignment provides superb off-axis response.
State of the art, super low distortion neodymium motor design.
Electronics
Flagship AKM Velvet Sound AK4493/AK5572 based conversion leaves no sonic footprint.
Hypex Ncore amplifiers provide gobs of squeaky clean, efficient power. 5th gen SHARC+ DSP hardware can crunch many, many numbers at once.

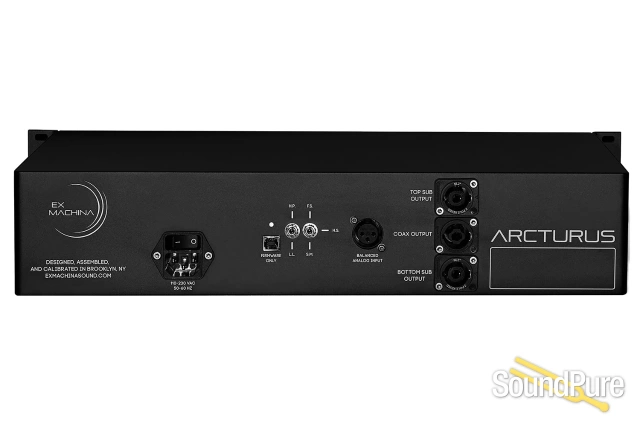

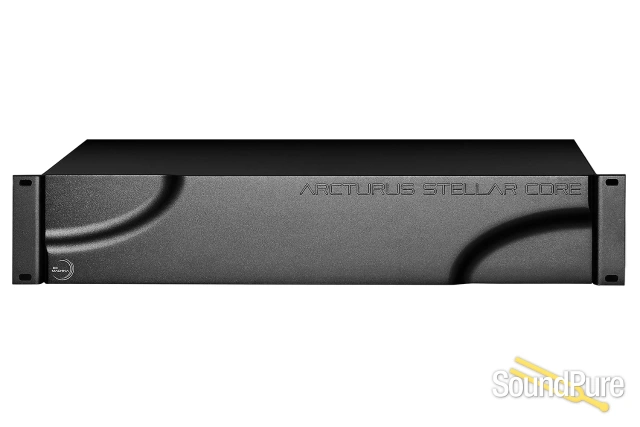

Included 2RU remote AMP/DSP pack – top and bottom venting is required.
Sealed Valchromat Cabinets
Stiff, dense and well damped, with none of the chuffing or group delay of ported designs.

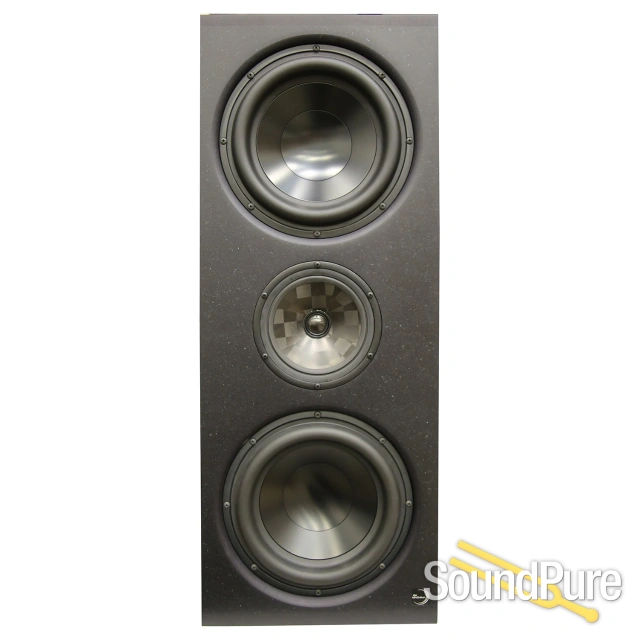

Ultra-rigid 38mm laminated front baffle to handle the impressive output of the twin 26cm subwoofers. Radiused insets for the subwoofers eliminate potential lip shadow from the tall boy surrounds.
Available in either straight wall or rounded edge versions to accommodate either soffit-install or free-standing operation.
DSP
Proprietary, in house calibration code completely flattens frequency, phase and impulse response.
- Linear Frequency Response
- +/- 1db 28hz – 30khz (measured at 50cm cal position)
- Low Frequency Cutoff
- -6db at 18hz
- Linear Phase Response
- +/- 15° 20hz – 30khz
- Maximum Continuous SPL @ 1m
- 117db, 112db @50hz
- THD+N (94db @ cal position)
- < .5% Power Average 100hz – 30khz
- Coverage Angle
- 90° conical
DRIVER COMPLEMENT
176mm (7”) midrange, 25mm (1”) tweeter Custom SEAS/Ex Machina/Composite Sound Metamodal TX™ mid/high coaxial
Twin 270mm (10.5”) Flagship Twin Ring Radial Neodymium Extreme Series Architecture Subwoofers
CROSSOVERS
200hz Sub/Mid, digital 4th order, phase corrected
2khz Mid/Tweet, digital 4th order, phase corrected
AMPLIFIER COMPLEMENT
- Subwoofers
- Hypex NCAS500MP – 800W RMS
- Midrange
- Hypex NCAS500MP – 100W RMS
- Tweeter
- Hypex NCAS500MP – 100W RMS
AMPLIFIER VENTILATION REQUIREMENTS
1RU above and below the amplifier pack
DSP/CONVERSION
- A/D Chipsets
- AKM AK5572EN
- D/A Chipsets
- AKM AK4493EQ
- DSP
- 5th Gen SHARC+ AD21565
INPUT SENSITIVITY
8vrms to full scale (default configuration)
2vrms to full scale (optional high gain configuration)
MASS & DIMENSIONS
839mm H x 338m W x 355mm D (33″ x 13.3″ x 14″)
43kg (95lbs)
2RU Amplifier/DSP Pack – 5kg (11lbs)
